NCR 5965 - Usb (Cn20, Cn21, Cn15); VGA Video (CN1)

Chapter 6: Circuit Boards 6-3

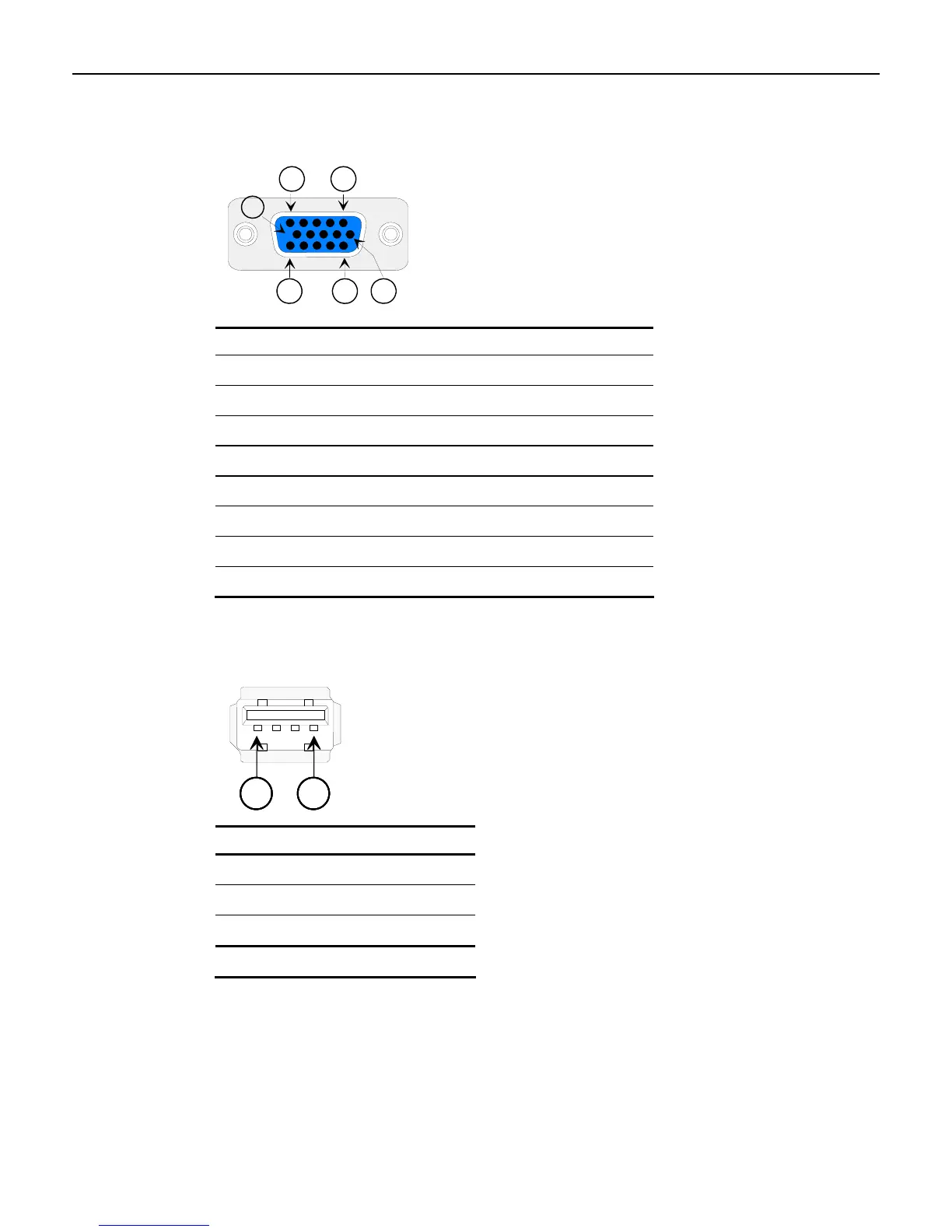

VGA Video (CN1)
10
15
15 11
6
Pin Function Pin Function
1 Red 9 +5V DDC
2 Green 10 Sync GND
3 Blue 11 Monitor ID bit 0
4 Monitor ID bit 2 12 SDA (for DDC)
5 VGA detect 13 H – Sync
6 Ground – R 14 V – Sync
7 Ground – G 15 SCL (for DDC)
8 Ground – B
USB (CN20, CN21, CN15)
41
PIN Signal Color
1 VBUS Red
2 D- White
3 D+ Green
4 GND Black
