NCR 5965 - Inverter PCB; Connectors; Cable to Controller PCB (CN7); PL1; PL2 (Backlights)

Chapter 6: Circuit Boards 6-5

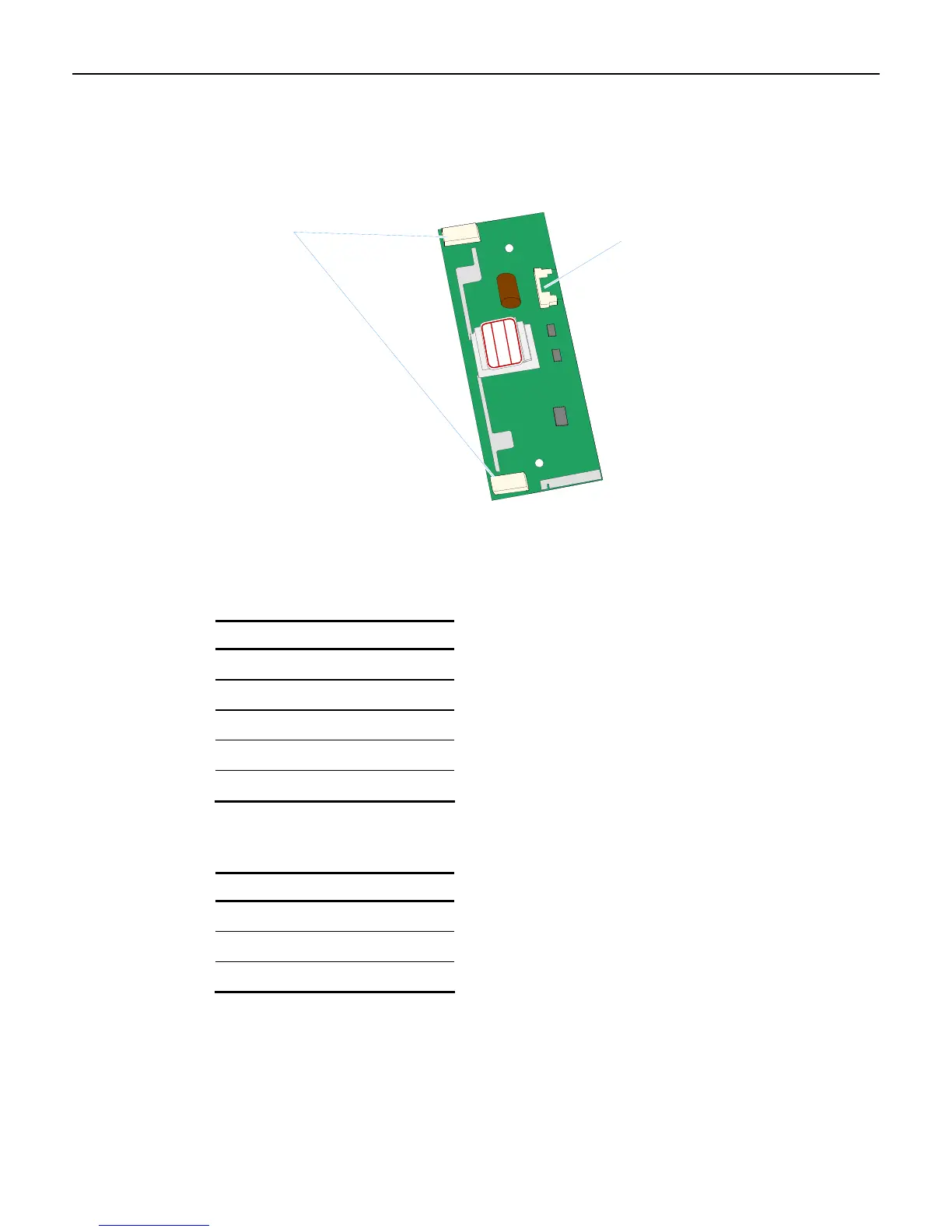

Inverter PCB
25848A
Backlights
CAUT
I
O
N
H
I
G
H
V
O
L
T
A
G
E
To Controller PCB
Connectors
Cable to Controller PCB (CN7)
Pin Function
1 12V / 24V
2 5V
3 Bright
4 Light On
5 GND
PL1 / PL2 (Backlights)
Pin Function
1 High V
2 NC
3 Low V
