Manoeuvring the ATM into Position
Ensure that doorways and corridors leading to your point of installation are wide enough
to allow the package to pass through, or make arrangements to unpack the ATM in an area
with sufficient access and then move it to the installation site. Also make sure that any
corridors can support the weight of the ATM. Refer to page 22
for the maximum weight of
the ATM and its floor loading.
Manoeuvring a Packaged ATM

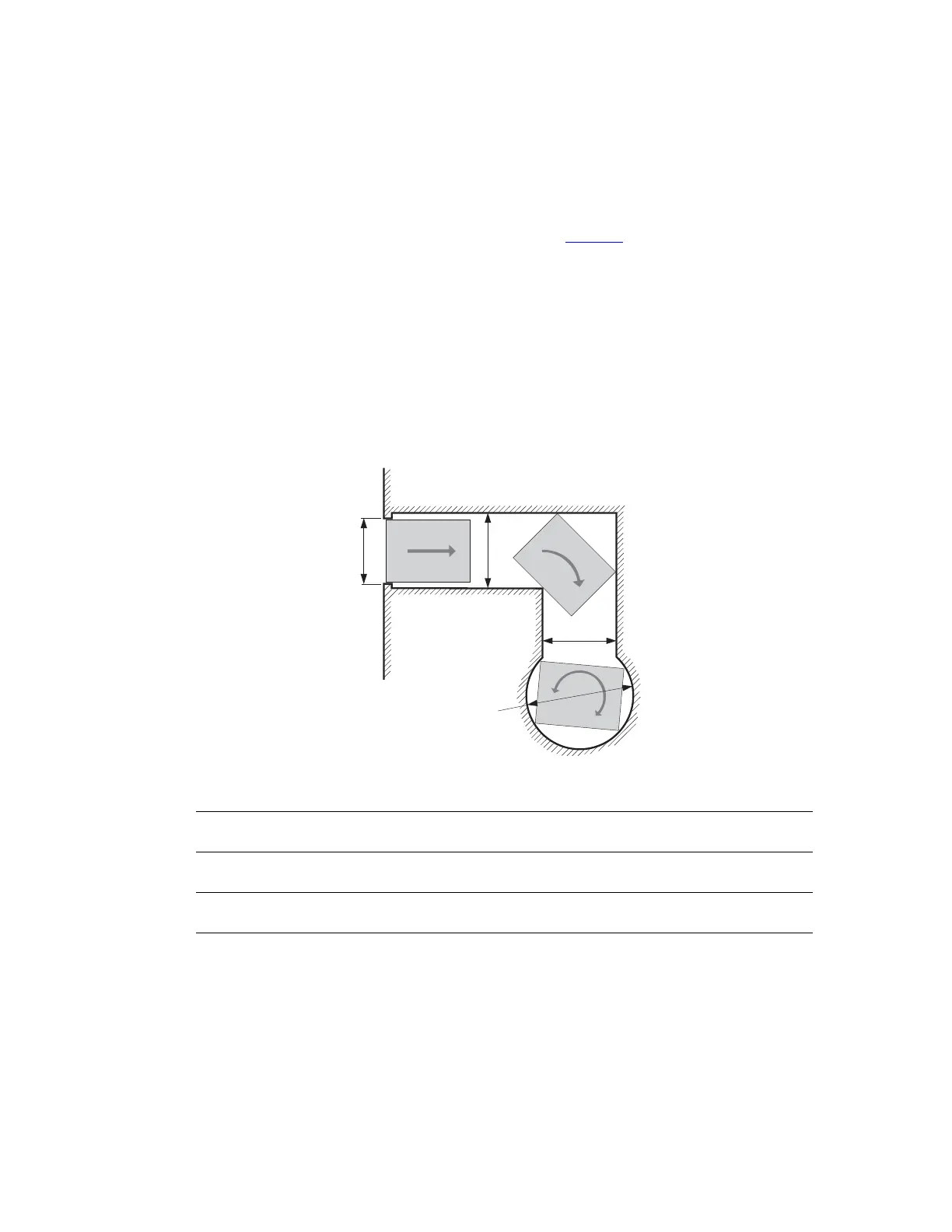

The following table gives the minimum dimensions for doorways, corridors with right
angle corners and the space required to rotate on its axis a packaged ATM.
Note 1: The dimensions assume the ATM is being moved using equipment that does not
extend beyond the ATM or packaging.
Note 2: A surrounding clearance of 6 mm (0.24 in.) has been allowed in the figures.
Pallet, carton and lid Pallet and carton or Pallet Only
A Doorway or straight corridor 817 mm
(32.17 in.)
813 mm
(32.01 in.)
B Corridor with corner 1083 mm
(42.64 in.)
1075 mm
(42.40 in.)
C Rotation about centre 1644 mm
(64.72 in.)
1629 mm
(64.13 in.)
