NCR SelfServ 28 ATM Site Preparation
8 B006-6884-A000
Manoeuvring an Unpackaged ATM

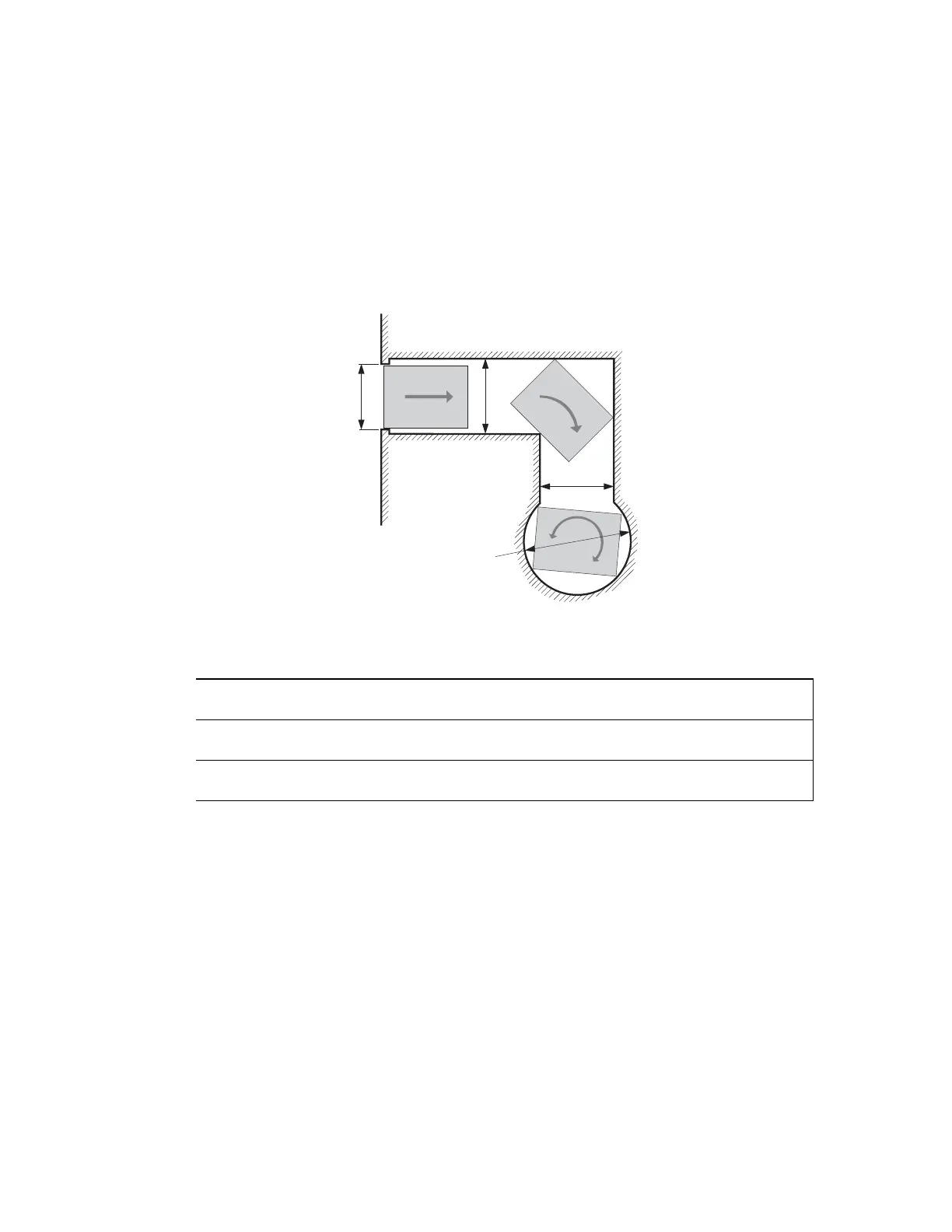

The following table gives the minimum dimensions for doorways, corridors with right
angle corners and the space required to rotate on its axis an unpackaged ATM.
Note 1: The dimensions assume the ATM is being moved using equipment that does not
extend beyond the ATM or packaging.
Note 2: A surrounding clearance of 6 mm (0.24 in.) has been allowed in the figures.
With Air-conditioning
Unit Fitted
Without Air-conditioning
Unit Fitted
A Doorway or straight corridor 624 mm
(24.57 in.)
502 mm
(19.76 in.)
B Corridor with corner 747 mm
(29.41 in.)
649 mm
(25.55 in.)
C Rotation about centre 1030 mm
(40.55 in.)
962 mm
(37.87 in.)
