NCR SelfServ 28 ATM Site Preparation
24 B006-6884-A000
Cable Entry Recess
Cables enter the ATM through a hole in the base of the security enclosure. There should
be a cable entry recess, in the floor, of sufficient size to allow the cables to be coiled ready
to be brought into the security enclosure.
Make sure that the recess is free from any material that may impede the cables. The hole
should not be sealed or filled with concrete. The hole must not extend beyond the
boundaries shown.

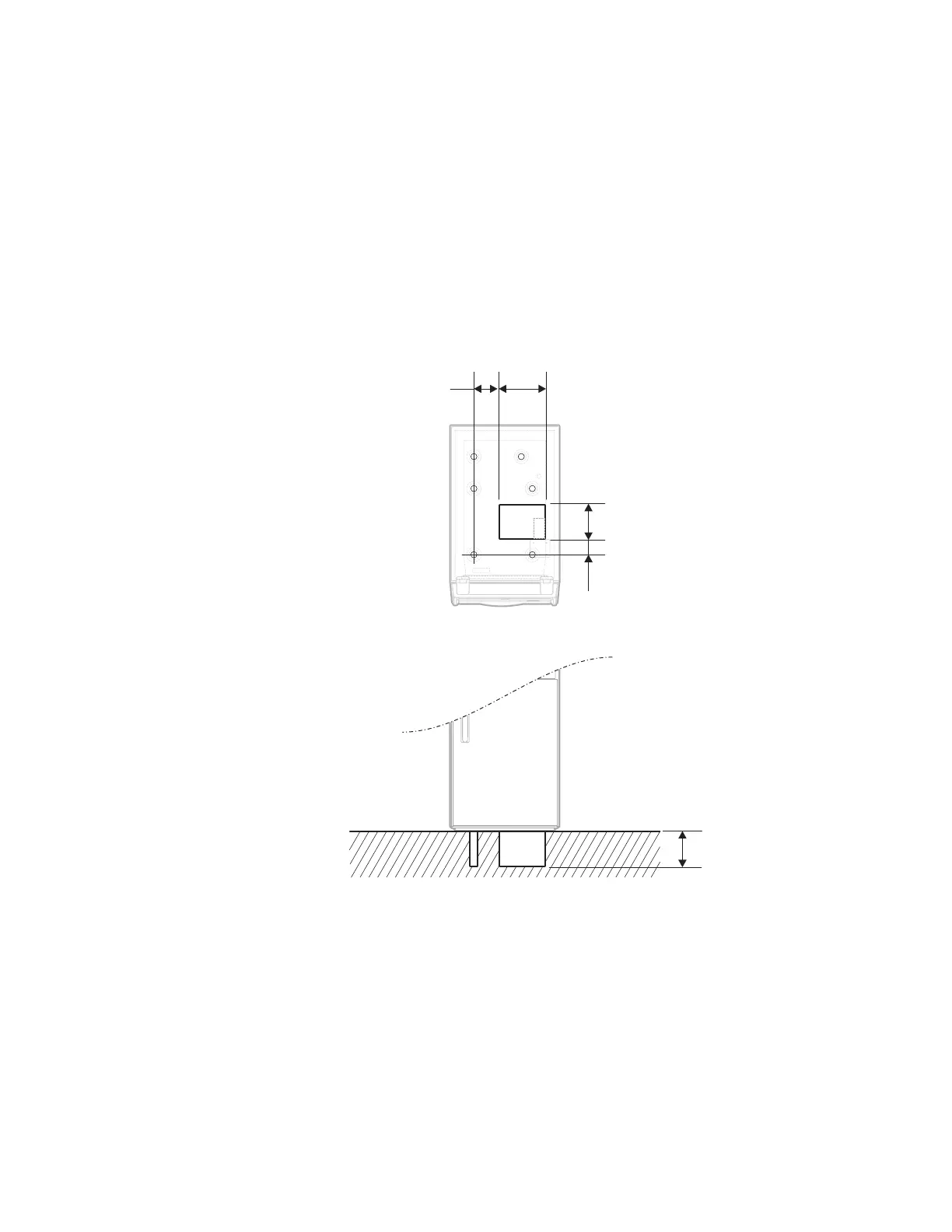

The following illustration shows the required dimensions of the conduit hole, and its
location relative to the bolt holes.
Note 1: The power cable must be encased in a 16 mm (0.67 in.) flexible steel conduit.
Note 2: Distribution boxes and any power and wiring conduits must not protrude above
the surface of the floor.
Note 3: Make sure that the base of ATM fully covers the cable access hole
150 mm
(5.91 in.)
152 mm
(5.98 in.)
74 mm
(2.91 in.)
200 mm
(7.87 in.)
120 mm
(4.72 in.)
AA
AA
AA
