NCR SelfServ 28 - Facia Item Locations for Voice Guidance

NCR SelfServ 28 ATM Site Preparation
B006-6884-A000 15

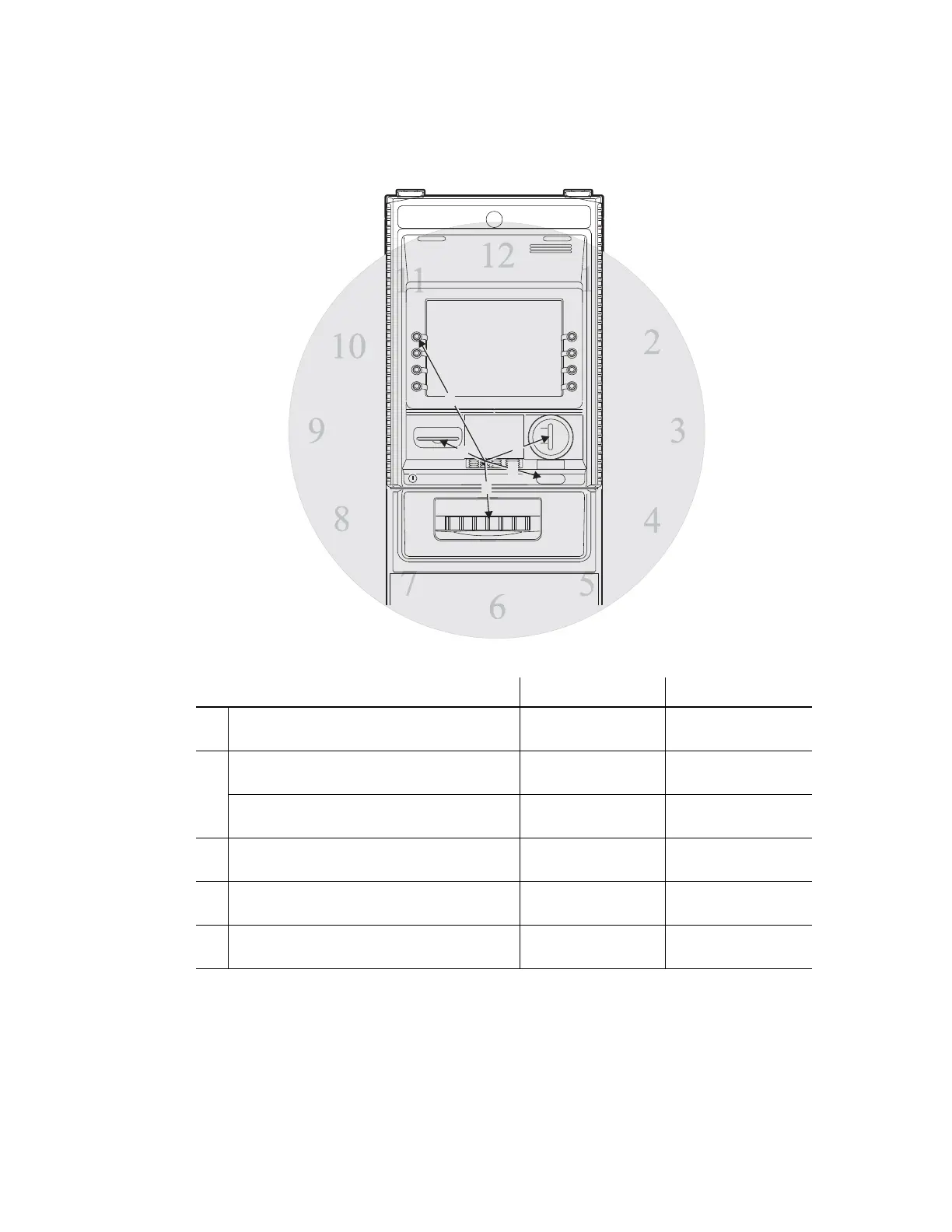

Facia Item Locations for Voice Guidance
Facia Item Distance from No. 5 Key Clock Face Position
A Receipt Exit
118 mm
(4.6 in.)
10
B
381 mm (15.0 in.) Display - Top left-hand FDK
325 mm
(12.8 in.)
11
307 mm (12.1 in.) Display - Top left-hand FDK
315 mm
(12.4 in.)
11
C Card Reader
159 mm
(6.3 in.)
2
D Audio Jack Plug
145 mm
(5.7 in.)
4
E Cash Exit
139 mm
(5.5 in.)
6
A
B
C
D
E
