NCR SelfServ 28 - Height and Depth to Main Facia Items

NCR SelfServ 28 ATM Site Preparation
B006-6884-A000 13

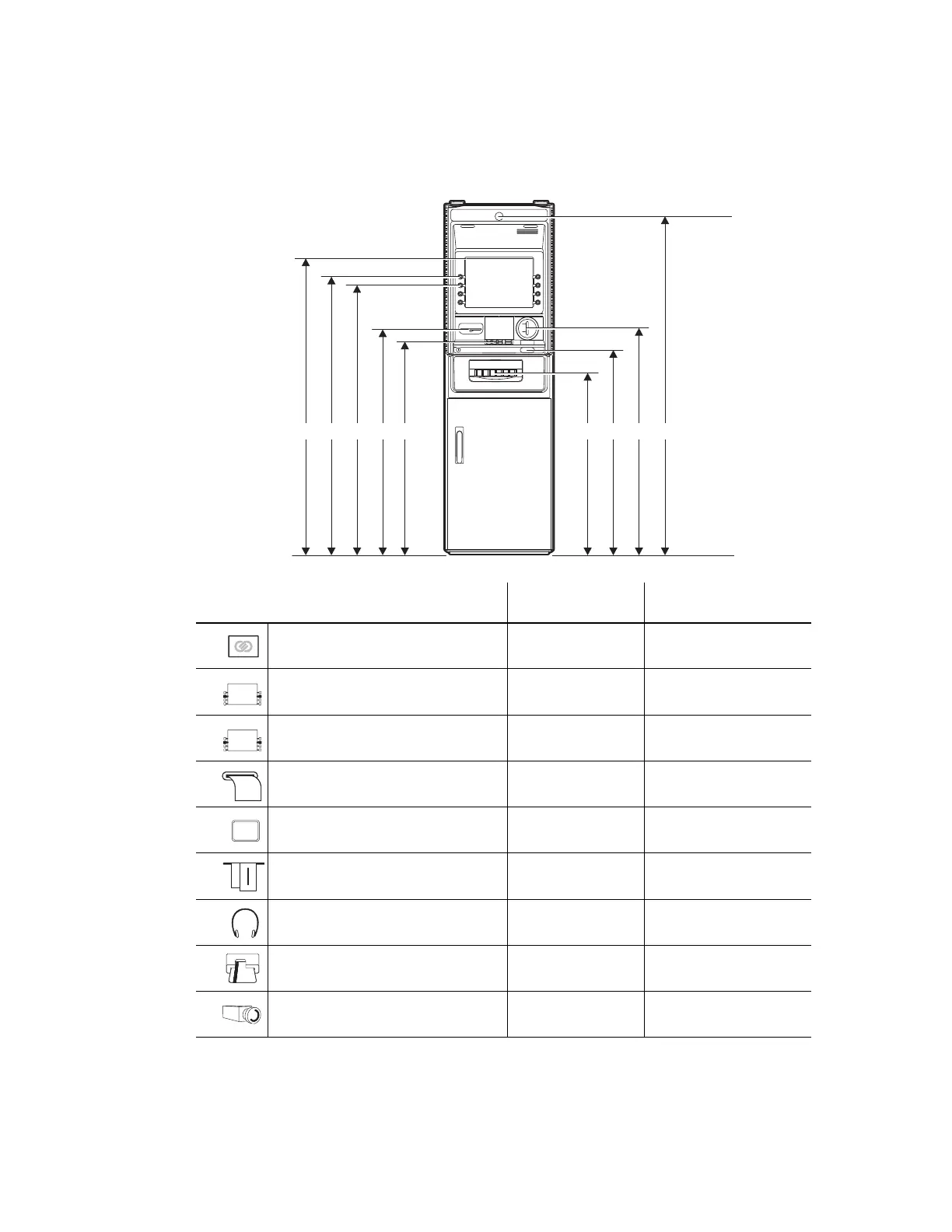

Height and Depth to Main Facia Items
All height dimensions are calculated from the base of the ATM.
Facia Item
Height
(CEN L and CEN I)
Depth from
front of shelf
A
381 mm (15.0 in.)
Touchscreen Display
1302 mm
(51.3 in.)
203 mm
(8.0 in.)
B
381 mm (15.0 in.)
Display - 1st FDK
1220 mm
(48.0 in.)
179 mm
(7.0 in.)
C
381 mm (15.0 in.)
Display - 2nd FDK
1183 mm
(46.6 in.)
149 mm
(5.9 in.)
D Receipt
986 mm
(38.8 in.)
104 mm
(4.1 in.)
E No. 5 Key
936 mm
(36.9 in.)
75 mm
(3.0 in.)
F Cash Exit
797 mm
(31.4 in.)
21 mm
(0.8 in.)
G Audio Jack Plug
897 mm
(35.3 in.)
0 mm
(0.00 in.)
H Card Reader
993 mm
(39.1 in.)
104 mm
(4.1 in.)
I Camera
1486 mm
(58.5 in.)
21 mm
(0.8 in.)
DCBA E HGF I
5
JKL
S
S
