NCR SelfServ 28 - Air Vents; Without Air Conditioner; With Air Conditioner

NCR SelfServ 28 ATM Site Preparation
B006-6884-A000 21
Air Vents

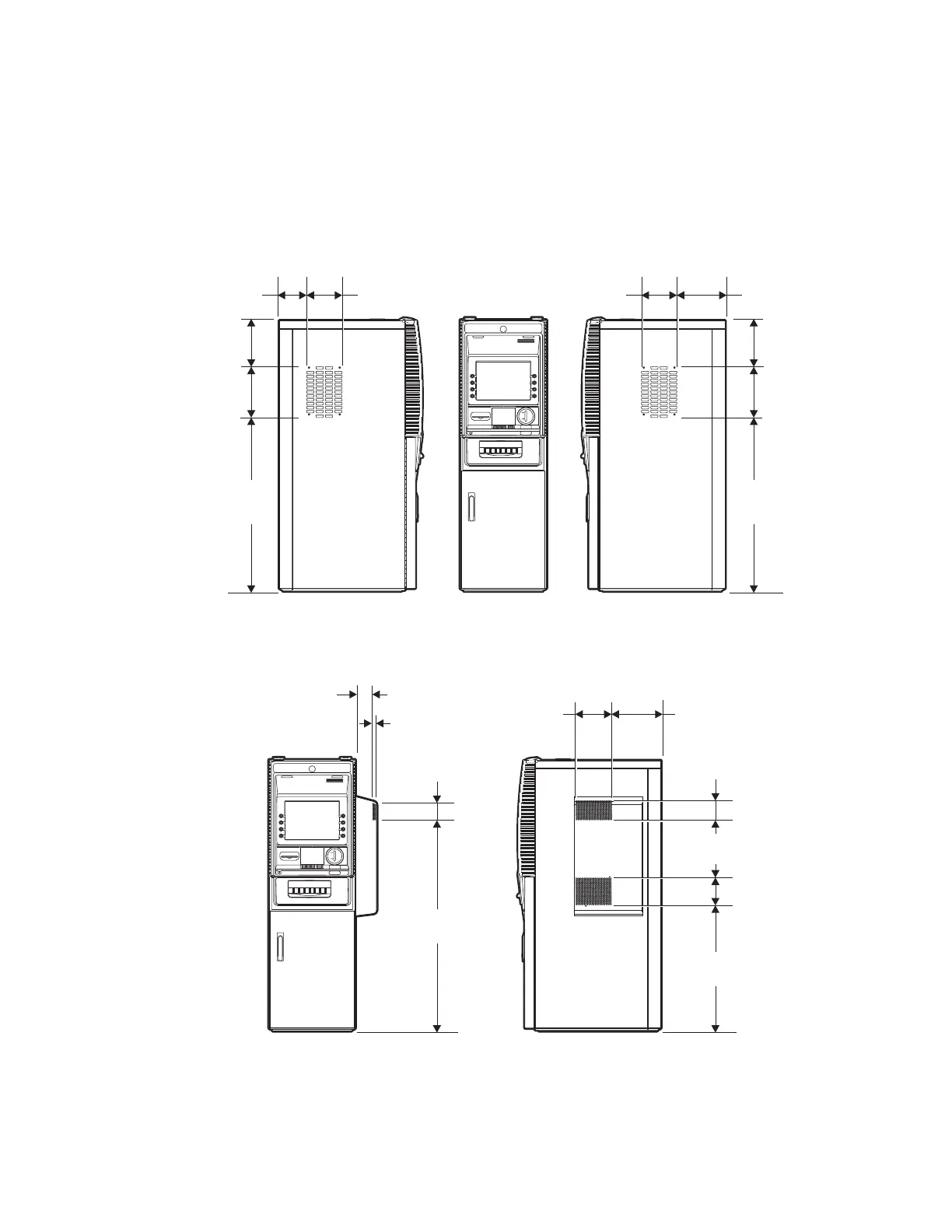

The following illustrations show the position of the air vents on the ATM. Do not cover or
block the vents.
Without Air Conditioner
With Air Conditioner
202 mm
(7.95 in.)
202 mm
(7.95 in.)
274 mm
(10.79 in.)
155 mm
(6.10 in.)
262 mm
(10.31 in.)
262 mm
(10.31 in.)
288 mm
(11.34 in.)
288 mm
(11.34 in.)
985 mm
(38.78 in.)
985 mm
(38.78 in.)
96 mm
(3.78 in.)
1196 mm
(47.09 in.)
204 mm
(8.03 in.)
282 mm
(11.10 in.)
110 mm
(4.33 in.)
326 mm
(12.83 in.)
714 mm
(28.11 in.)
156 mm
(6.14 in.)
98 mm
(3.86 in.)
20 mm
(0.79 in.)
