Section 2: Components
14 Product Description

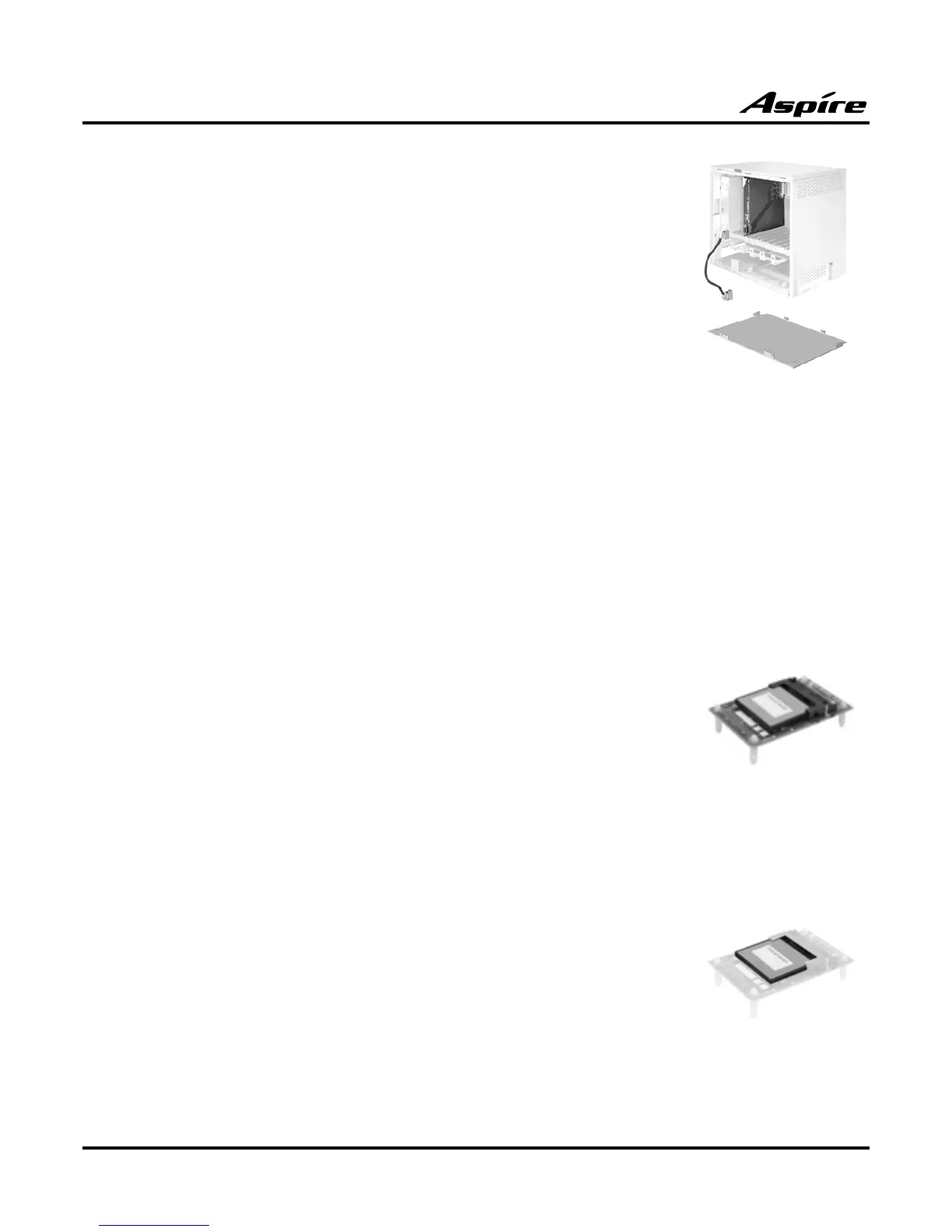

KSU Expansion Set — P/N 0891001
This set is required to connect a second cabinet, allowing expansion
from an 8 slot to a 16 slot system. It consists of an EXIFU PCB,
EXIFU Cable and Joint Plate.
19” Rack Mount Bracket — P/N 0891300
The 19” rack Mount Bracket is required to install the KSU onto a 19” rack mounting system.
Feature Upgrade for 0891002 — P/N 0891039
The Feature Upgrade for the 0891002 is added to the 64 Port Basic CPU (0891002). It provides
such features as 16 channel media gateway cards, ACD, T1/PRI, E&M, etc. Refer to the NTCPU
info on Central Processing Unit (NTCPU) PCB — P/Ns 0891002 & 0891038 (page 11)
for more.
DSP Resource Daughter Board (DSPDB) — P/N 0891003
The DSPDB provides additional DSP resources as well as the option
for the VRS (Voice Response System) or Voice Mail features. This
daughter board is mounted on the NTCPU and provides:
● 32 Tone Resources (for DTMF Receiver, Caller ID Receiver, and
Call Progress Tone Detection)
● 16 VRS Circuits with a VRS Flash Card Installed (replays up to 16
circuits simultaneously, recording: up to 8 circuits simultaneously)
● Compact Flash Slot for VRS or Voice Mail Features
The receiver circuits are used for DTMF receivers, call progress tone detection, and
Caller ID receivers.
Flash VRS CF (DSPDB Compact Flash Card) (DSPDB) — P/N 0891040
The Flash Card adds Voice Announce/Automated Attendant features
and is installed on the DSP Resource daughter board.
