9
Checking the Supplied Items and the Names of the Projector Parts
5. PC card slot
• Use this slot when doing maintenance on your projector. Set a commercially available flash
memory card.
• Set a wireless LAN card, and you can control the projector from a PC, using a wireless LAN.
Please inquire your dealer/distributor about a wireless LAN card that can be used.
6. External control terminal (REMOTE 2) (Mini DIN 8P)
Use this terminal when controlling your projector from an external switcher.
NOTE
• When the GPIO control is in “Enable,” the LENS SHUTTER function will not work.
7. HDSDI B input terminal (SDI-B) (BNC)
Connect a Video Server or Video source to this terminal. Use a 75Ω coaxial cable.
8. HDSDI A input terminal (SDI-A) (BNC)
Connect a Video Server or Video source to this terminal. Use a 75Ω coaxial cable.
9. DVI-D A input terminal (DVI-A) (DVI-D 24P)
Connect the DVI-D output terminal of a PC to this terminal. Use a commercially available DVI-D
signal cable.
10. DVI-D B input terminal (DVI-B) (DVI-D 24P)
Connect the DVI-D output terminal of a PC to this terminal. Use a commercially available DVI-D
signal cable.
11. External control terminal (GP I/O) (D-Sub 25P)
This terminal is for future extension.

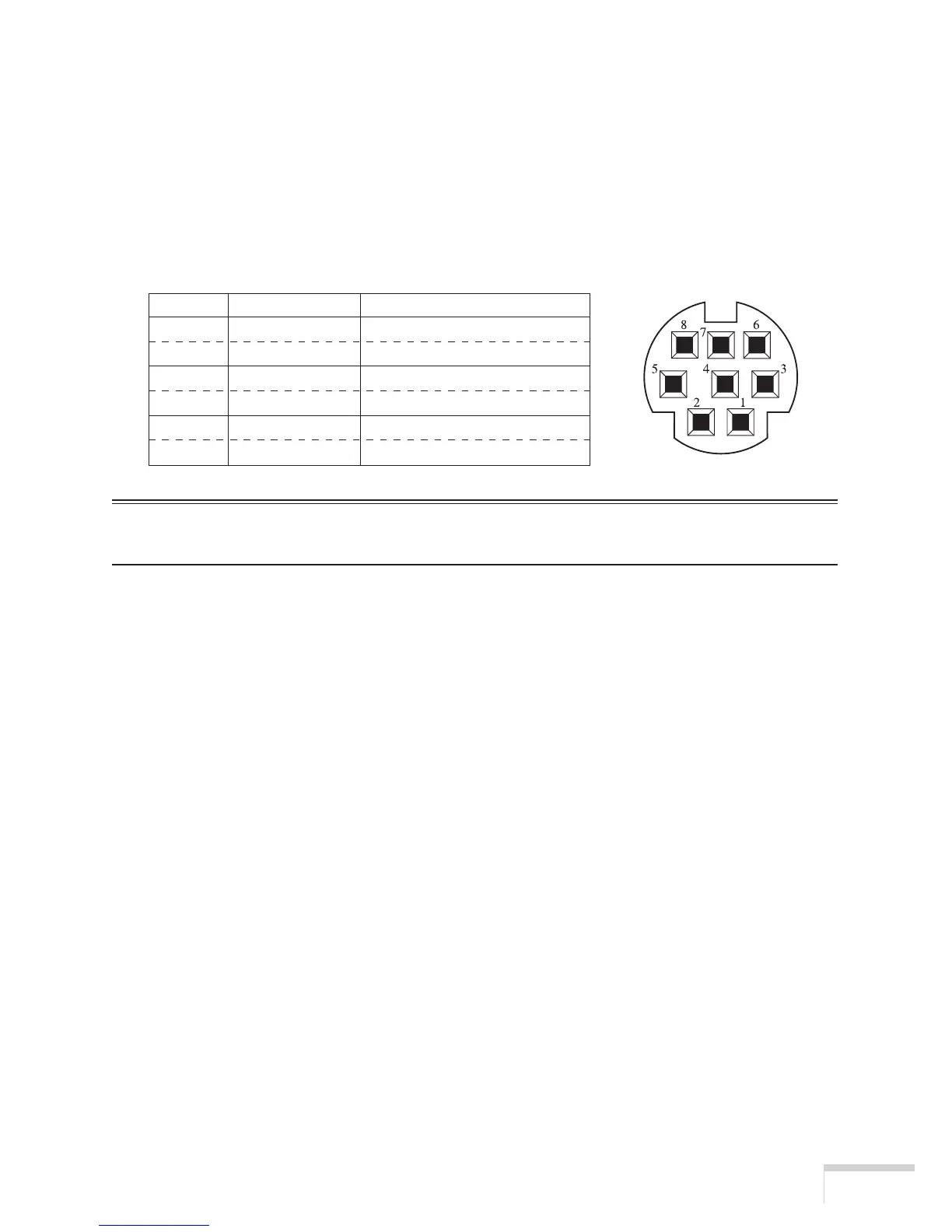

Pin No. SHORT/OPEN FUNCTION
6-4 SHORT External control mode ON
6 OPEN External control mode OFF
3-4 SHORT POWER ON
3 OPEN POWER OFF
8-4 SHORT LENS SHUTTER ON
8 OPEN LENS SHUTTER OFF
To Next Page
