Upgrades and Options

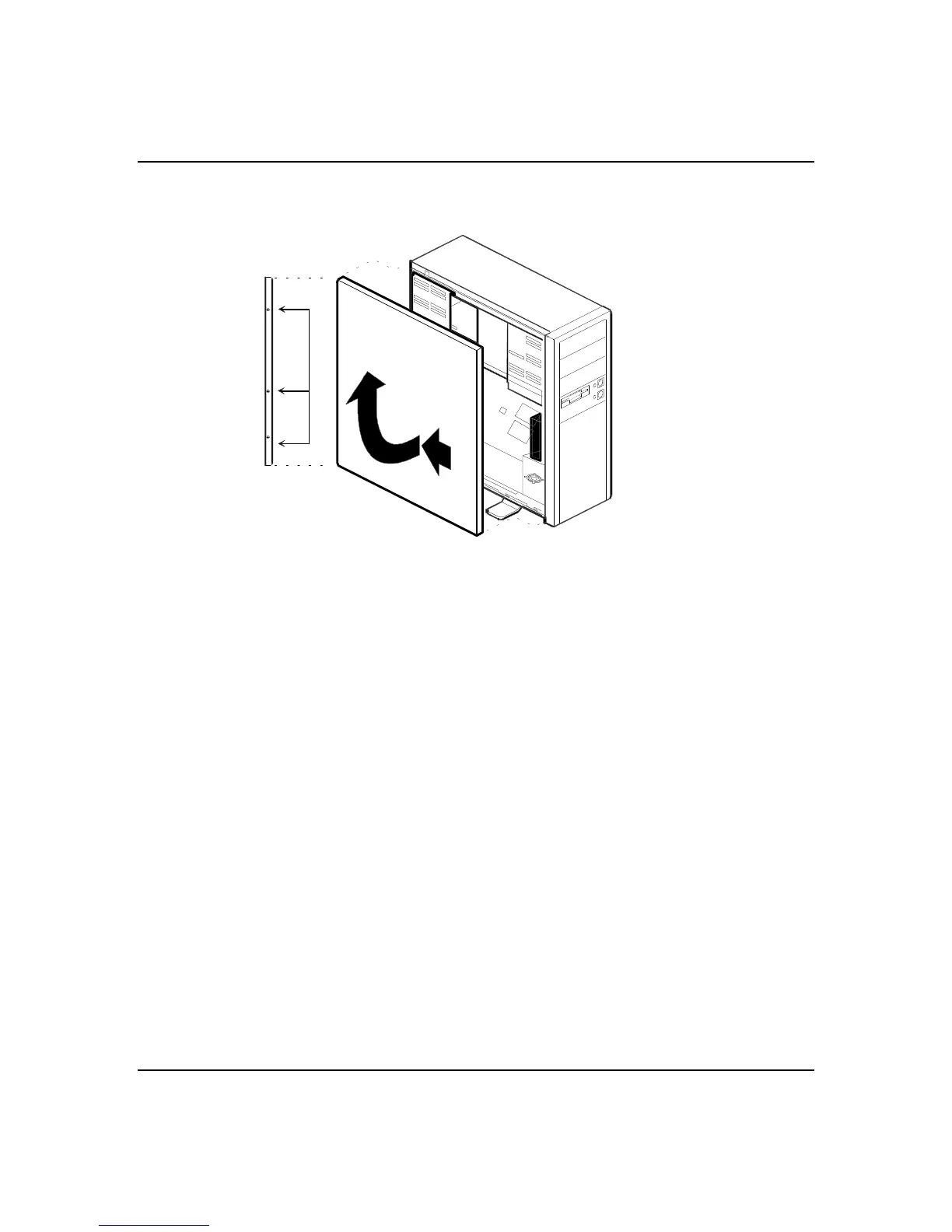

Figure 4-1. Removing the System Side Panel
1
3
2
Installing the Side Panel
1. Before replacing the side panel, make sure no tools
or loose parts have been left inside the system
chassis.
2. Make sure all option boards are firmly seated in
their respective slots and that all interior cables are
properly connected.
3. Insert the metal tabs on the top and bottom of the
side panel into their slots on the chassis. Slide the
side panel forward as far as it will go.
4. Replace the three side panel retaining screws (Figure
4-1, 1) and install the padlock, if used.
Note: If your system is already set up, plug the system
back in, reconnect the peripherals, and power on the
peripherals and system.
