B-1
Memory Configurations
Memory DIMM Configurations
The system board has four 168-pin DIMM sockets for a
total of up to 512MB of system memory, using 128MB
DIMMs. See Figure B-1.
The sockets are arranged in a bank that supports a 64-
bit wide data path with 8 parity bits. Timing requires
60 ns devices. Parity generation/checking is provided
for each byte. Each DIMM socket may have different
sizes of memory installed.

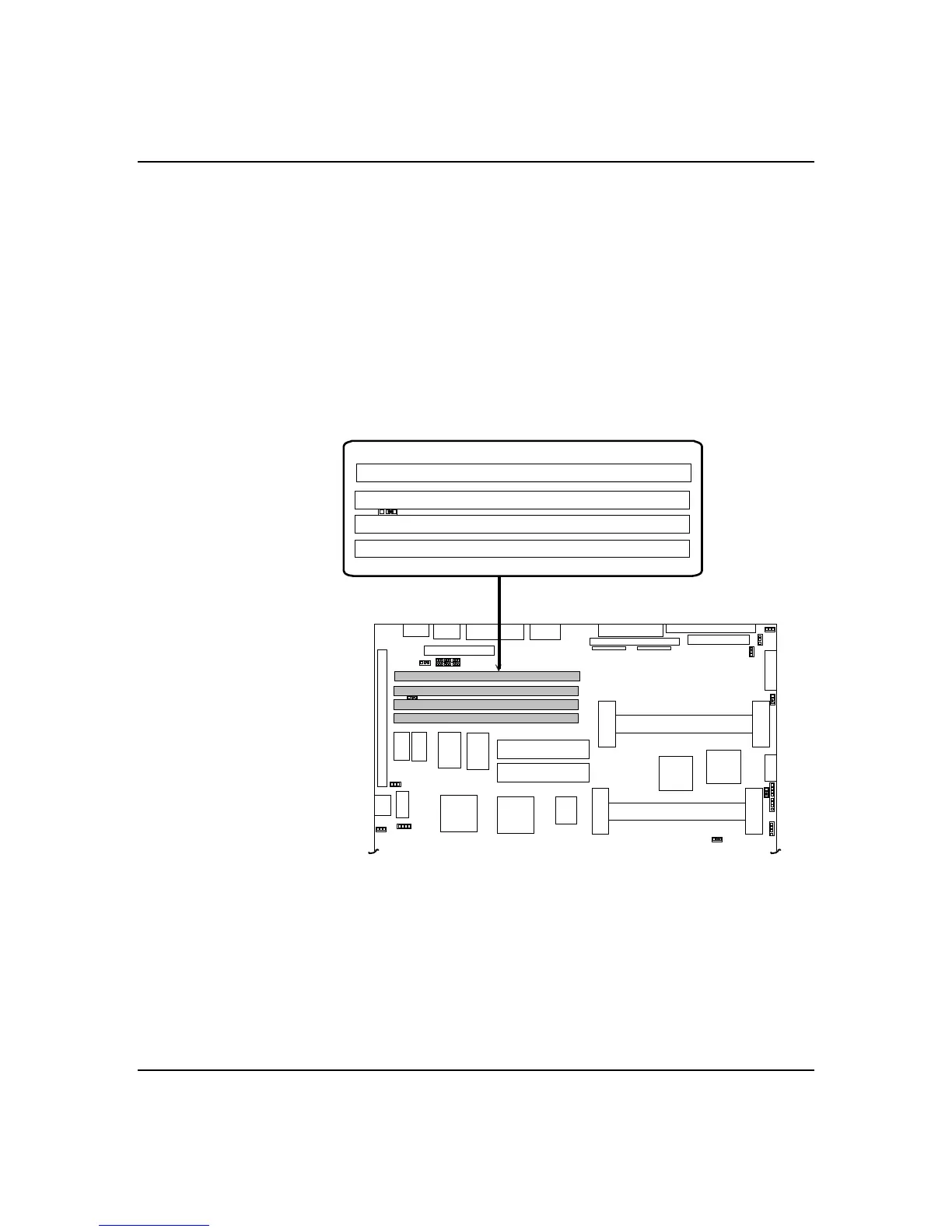

Figure B-1. System Board DIMM Sockets
J20
J19
J18
J17
