Upgrades and Options
10. Remove the drive serial number from the equipment
log.
Front Panel
The plastic front panel assembly is a one piece assembly
with removable filler panels. If you are installing
peripheral devices in the external bays above the 3.5-
inch floppy disk drive, you must remove the appropriate
filler panels.
Removing the Front Panel
1. Power off the system and remove the side panel as
described earlier in this chapter.
2. Remove the screw securing the front panel to the
chassis (Figure 4-12, A).
3. Squeeze the plastic tabs inside the front panel so
they clear the chassis slots (Figure 4-12, B).
4. Pull the left side of the panel out slightly until the
power and reset buttons are free. Slide the panel to
the right until the panel tabs come out of the slots in
the chassis (Figure 4-12, C).

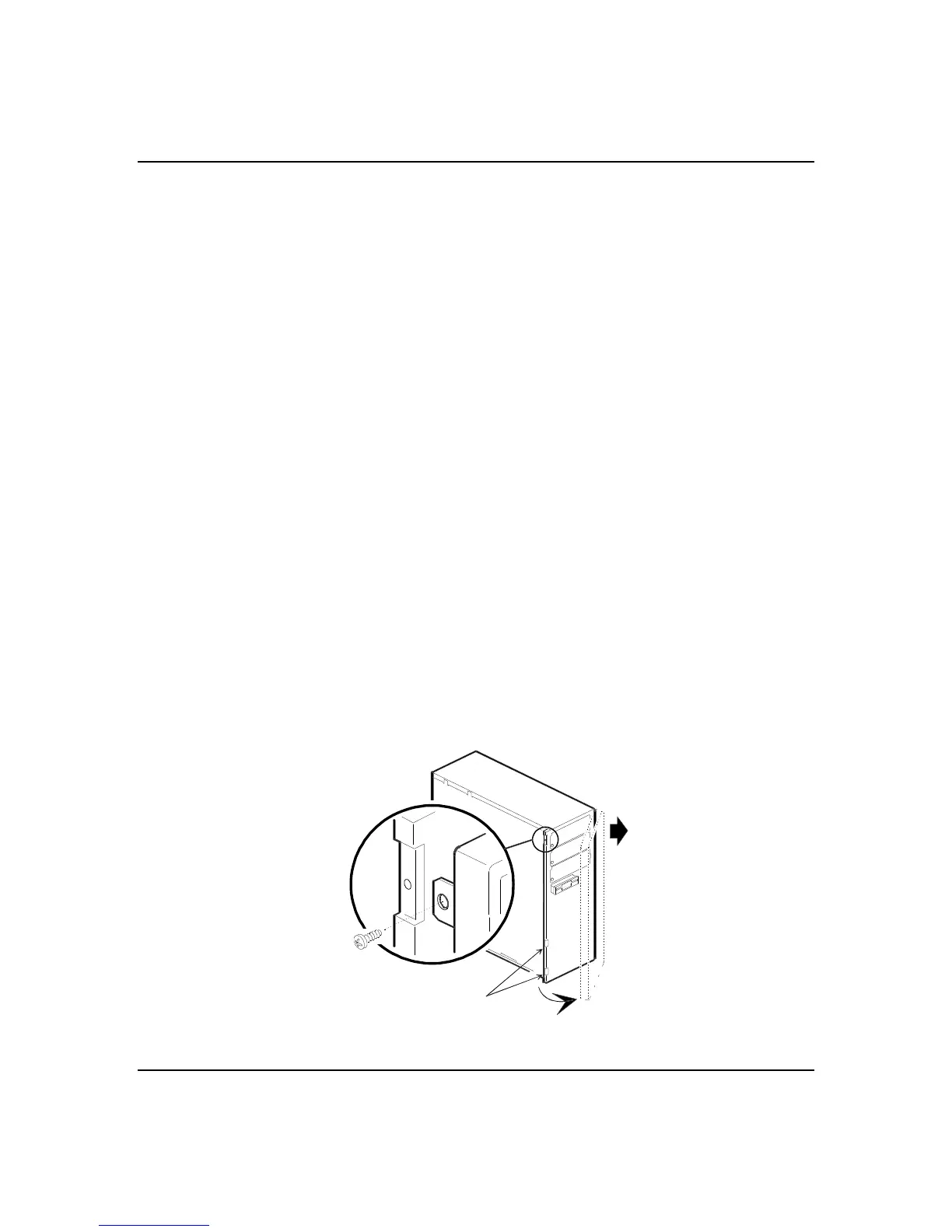

Figure 4-12. Removing the Front Panel
B
C
A
