4-27
Upgrades and Options
Installing the Front Panel
1. Insert the metal tabs of the front panel into the slots
on the right side of the chassis (Figure 4-13).
Squeeze the front panel and the chassis together
along the left side so the tabs snap into their slots.
Replace and tighten the screw.
2. Install the side panel as described earlier in this
chapter.
3. Power on the system as described earlier in this
chapter.

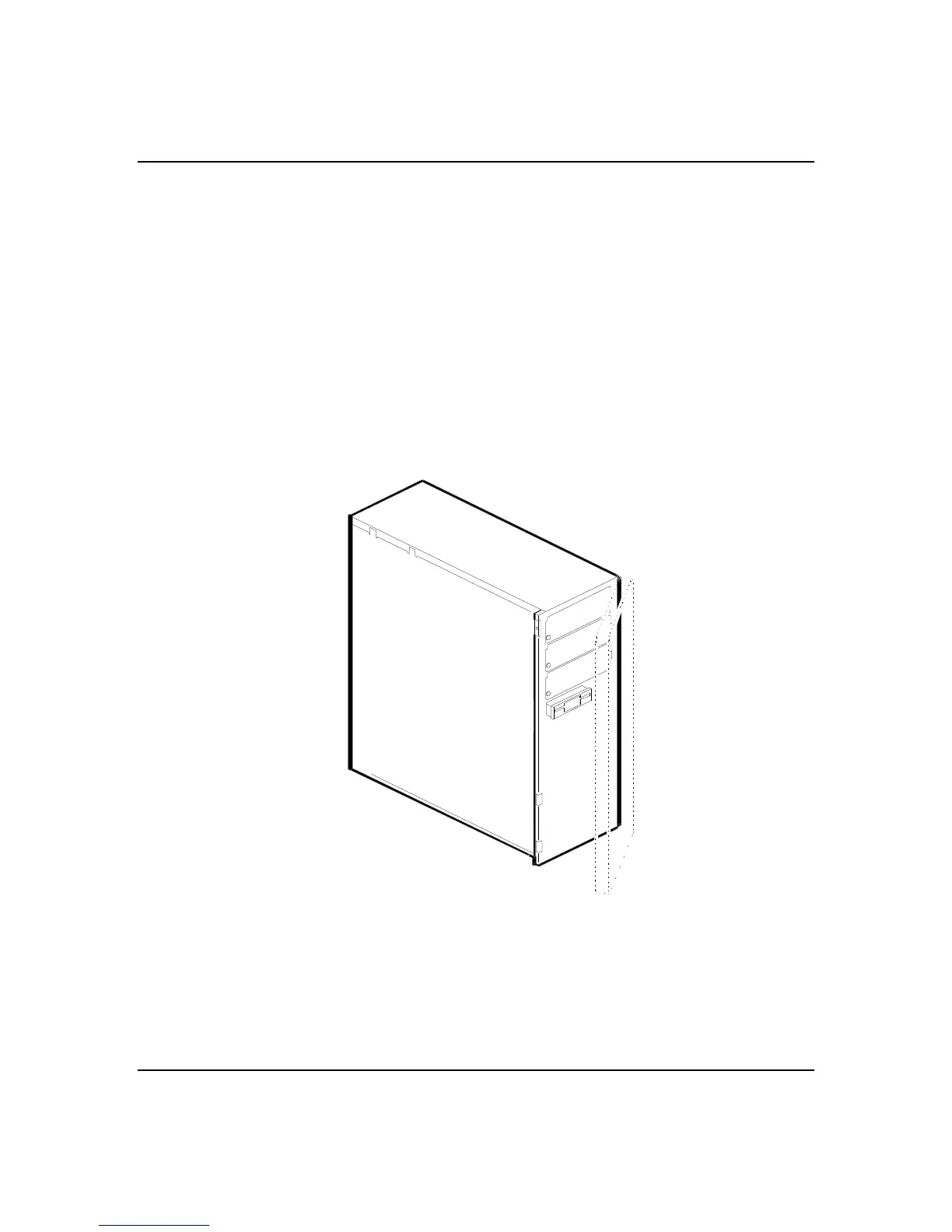

Figure 4-13. Installing the Front Panel
