4-9
REMARK
SYMBOL

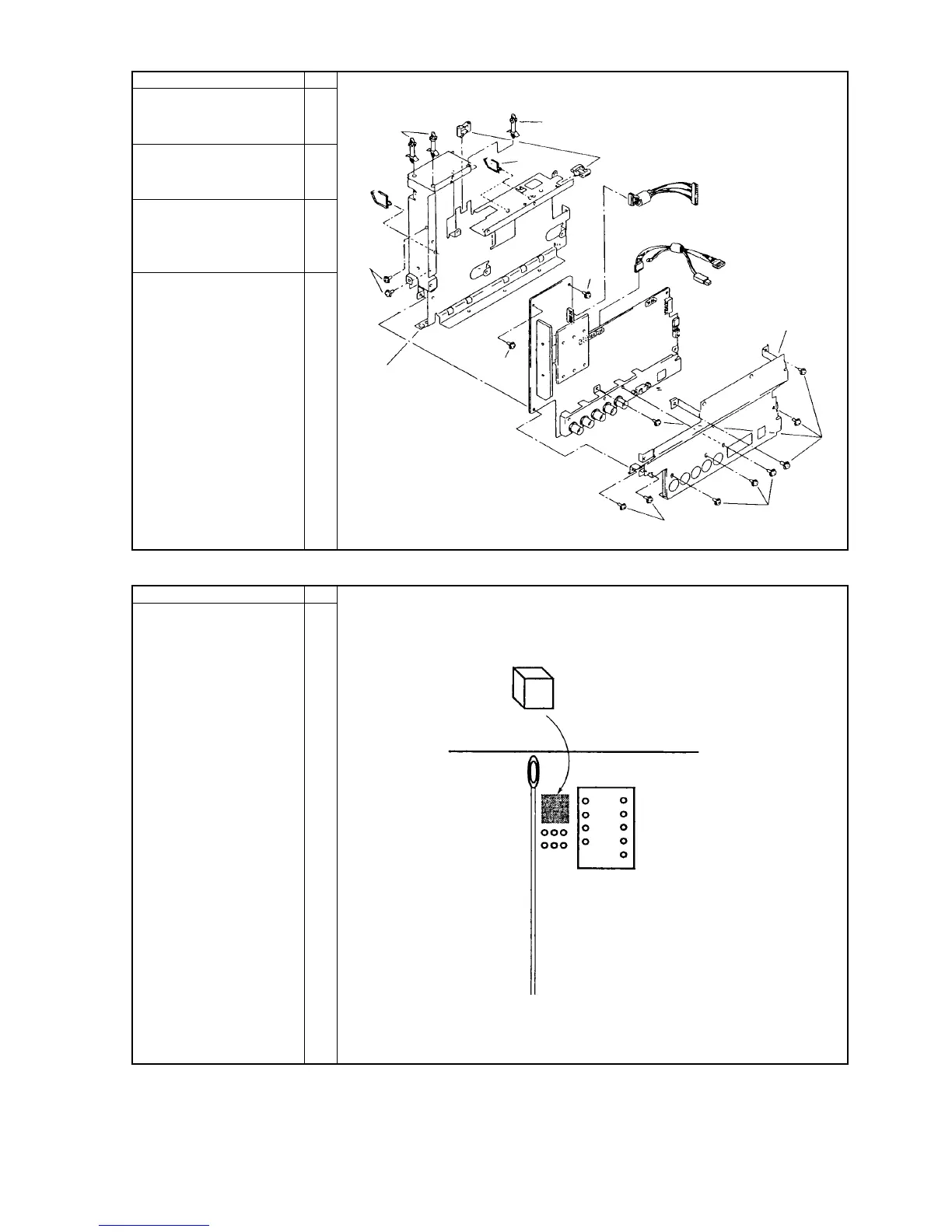

Screw VIDEO PWB ASSY to the
PLATE, SHIELDING
(BOTTOM).
121A
101
145
Screw PLATE, SHIELDING
(VIDEO) to the VIDEO PWB
ASSY.
101
102
146
Insert BUSH, INSULATOR,
CLAMPER, WIRE and EDGE,
SADDLE to the PLATE,
SHIELDING (BOTTOM).
114
147
148
Insert CN-SG and CN-HT to the
VIDEO PWB ASSY.
149
150
REMARK
SYMBOL
Attach the CUSHION SHEET on
SW/HV PWB ASSY.
175
147
114
101
145
101
101
114 (2P)
147
148
149
150
CN-SG
CN-HT
146
121A
101
101
102
175
T561
SW/HV PWB
COPPER SIDE
