5. Using On-Screen Menu


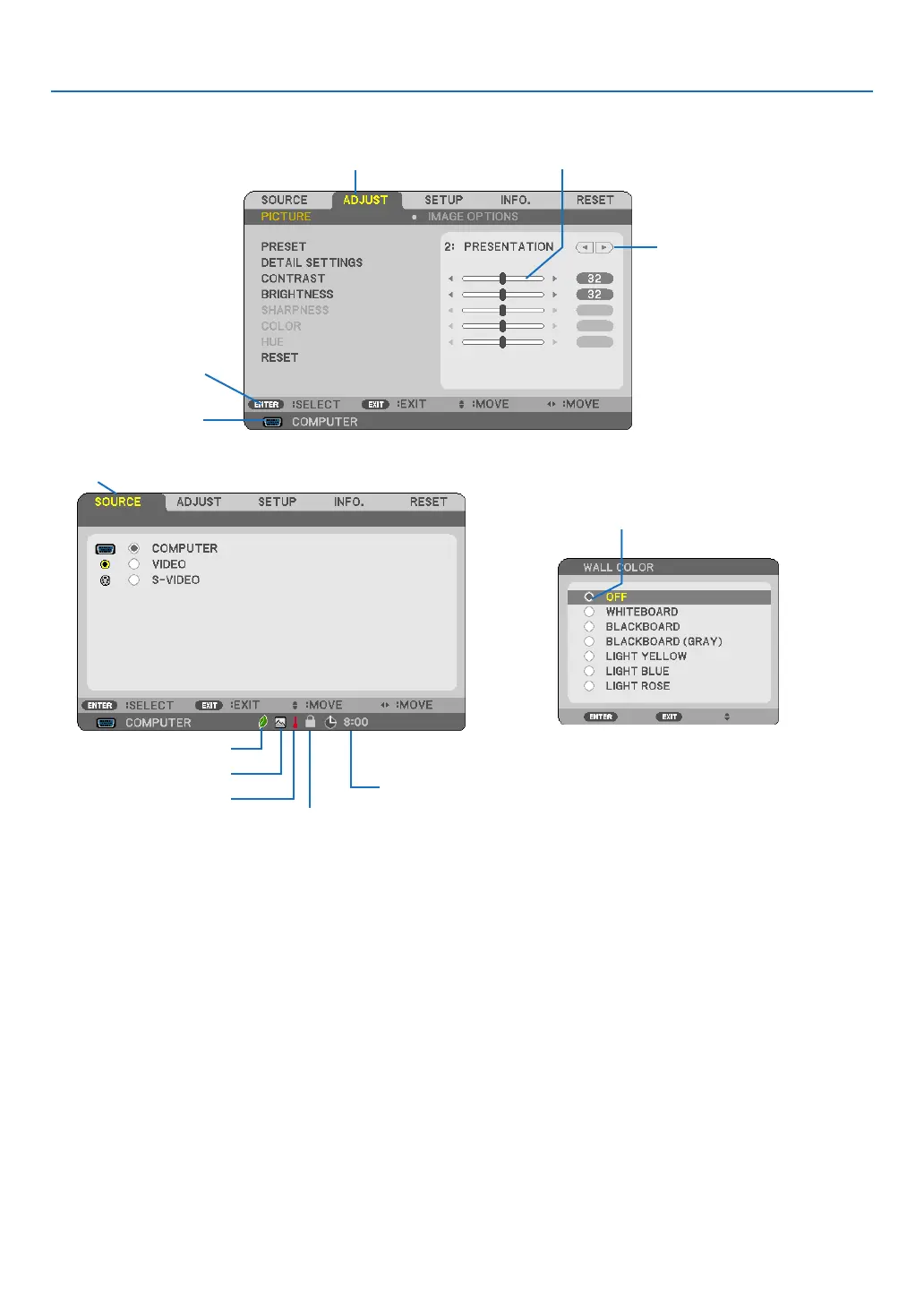

Menu Elements
Slide bar
Solid triangle
Tab
Radio button
Menuwindowsordialogboxestypicallyhavethefollowingelements:
Highlight .............................Indicates the selected menu or item.
Solid triangle
......................Indicates further choices are available. A highlighted triangle indicates the item is active.
Tab
......................................Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.
Radio button
.......................Use this round button to select an option in a dialog box.
Source
................................Indicates the currently selected source.
Off Timer remaining time
....Indicates the remaining countdown time when the [OFF TIMER] is preset.
Slide bar
.............................Indicates settings or the direction of adjustment.
ECO mode symbol
..............Indicates ECO MODE is set.
Key Lock symbol
................Indicates the [CONTROL PANEL LOCK] is enabled.
Thermometer symbol
.........Indicates the [ECO MODE] is forcibly set to [ON] mode because the internal temperature is too
high.
High Altitude symbol
..........Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode.
Source
Available buttons
High Altitude symbol
Thermometer symbol
Key Lock symbol
Of f Tim er r emain ing
time
Highlight
ECO mode symbol
