2-18 Using the Hardware
8. Replace the cover as follows:
■ Align the tabs on the drive cover with the slots on the
system chassis.
■ Lower the cover onto the chassis.
■ Slide the cover to the right, making sure the second
set of tabs at the back of the cover slide under the
chassis frame.
■ Push the cover until it snaps into place.

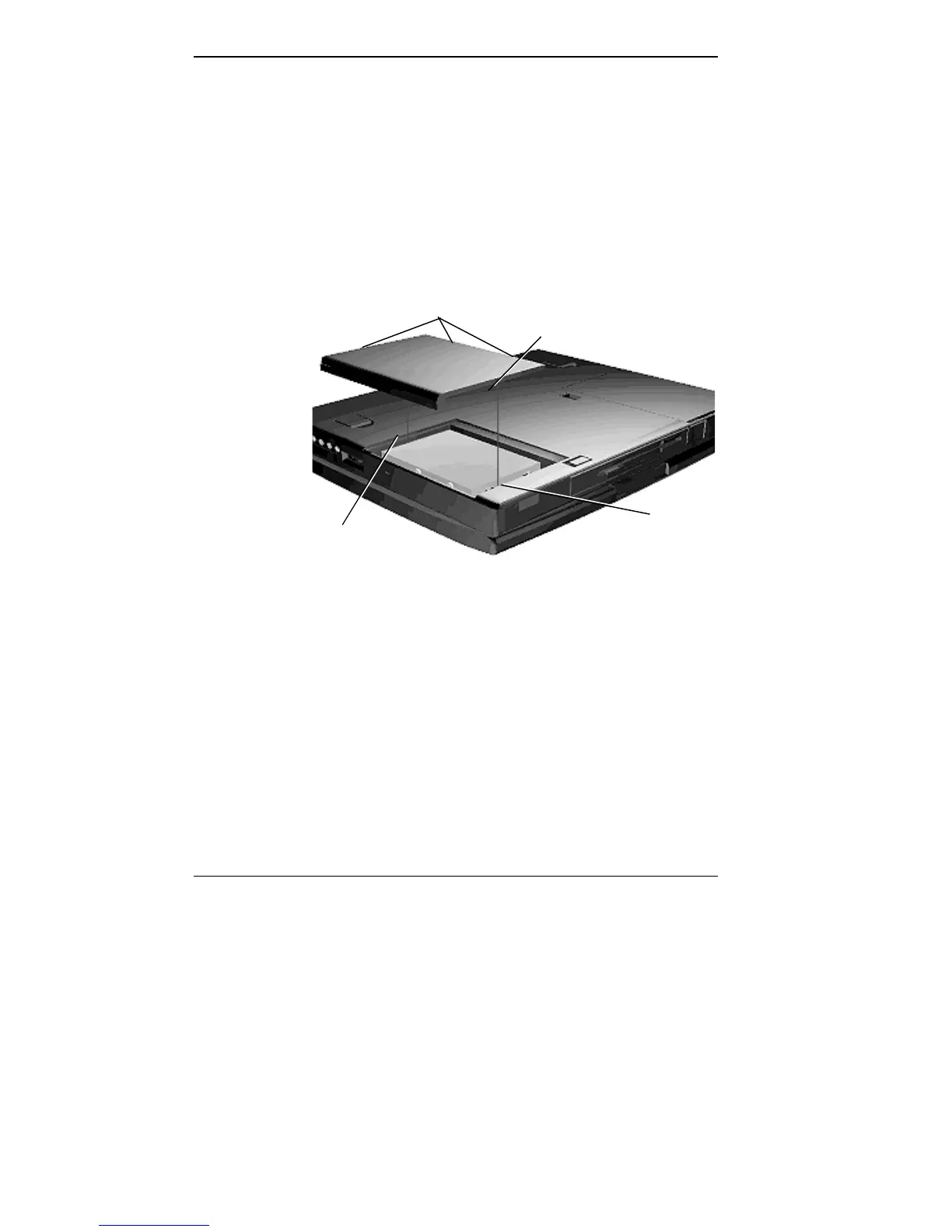

Replacing the drive bay cover
9. Turn the system over and power on. The system auto-
matically configures the new memory. The Setup sum-
mary screen will display the new amount.
Tab
Notch
Tabs (not shown)
Notch
