5.
Carefully turn over the keyboard and place it face down on the
VersaGlide. Be careful not to twist or disconnect the keyboard cable.
6.

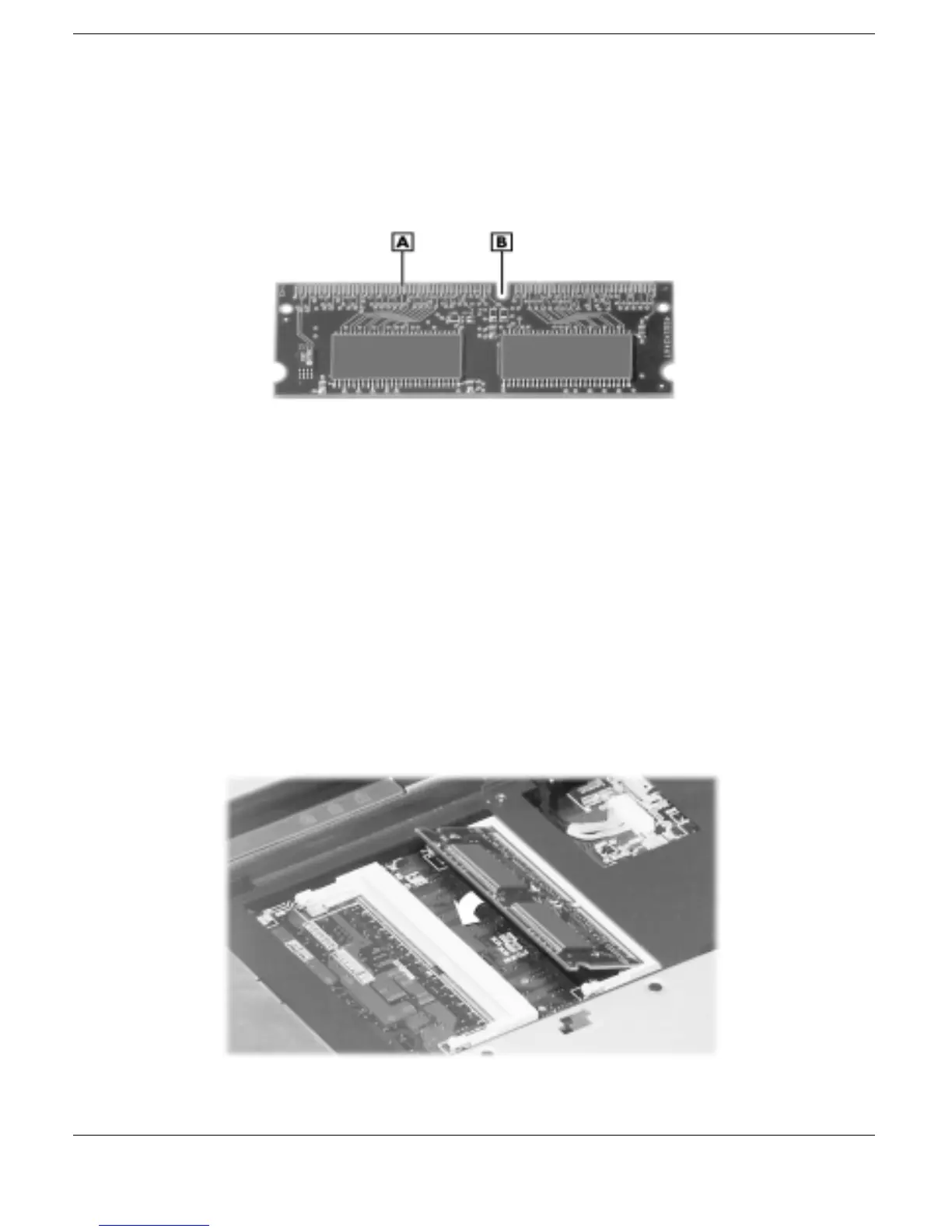

Locate the connectors and alignment key on the SO-DIMM.
SO-DIMM features
A
– Connectors
B
– Alignment Key
7.
Locate the SO-DIMM expansion port and proceed as follows:
!
Hold the SO-DIMM at a 45 degree angle and align the
SO-DIMM contacts with the socket in the system. Push the
connector into the socket.
!
Press down on the edge of the SO-DIMM opposite the contacts
until the lock tabs on the sides snap into place, securing the
module.
Installing the SO-DIMM
