Fig. 102
(Fig. 102) and shift motor bracket until belt has just enough
tension to pull the machine. Tighten the two bracket screws.
Commutator of motor is dirty. Clean connector with cleaning
fluid; then wipe it thoroughly dry.
How to replace the motor brushes.
The motor brushes are replaced in the following way:
Loosen and remove the motor cover of the machine.

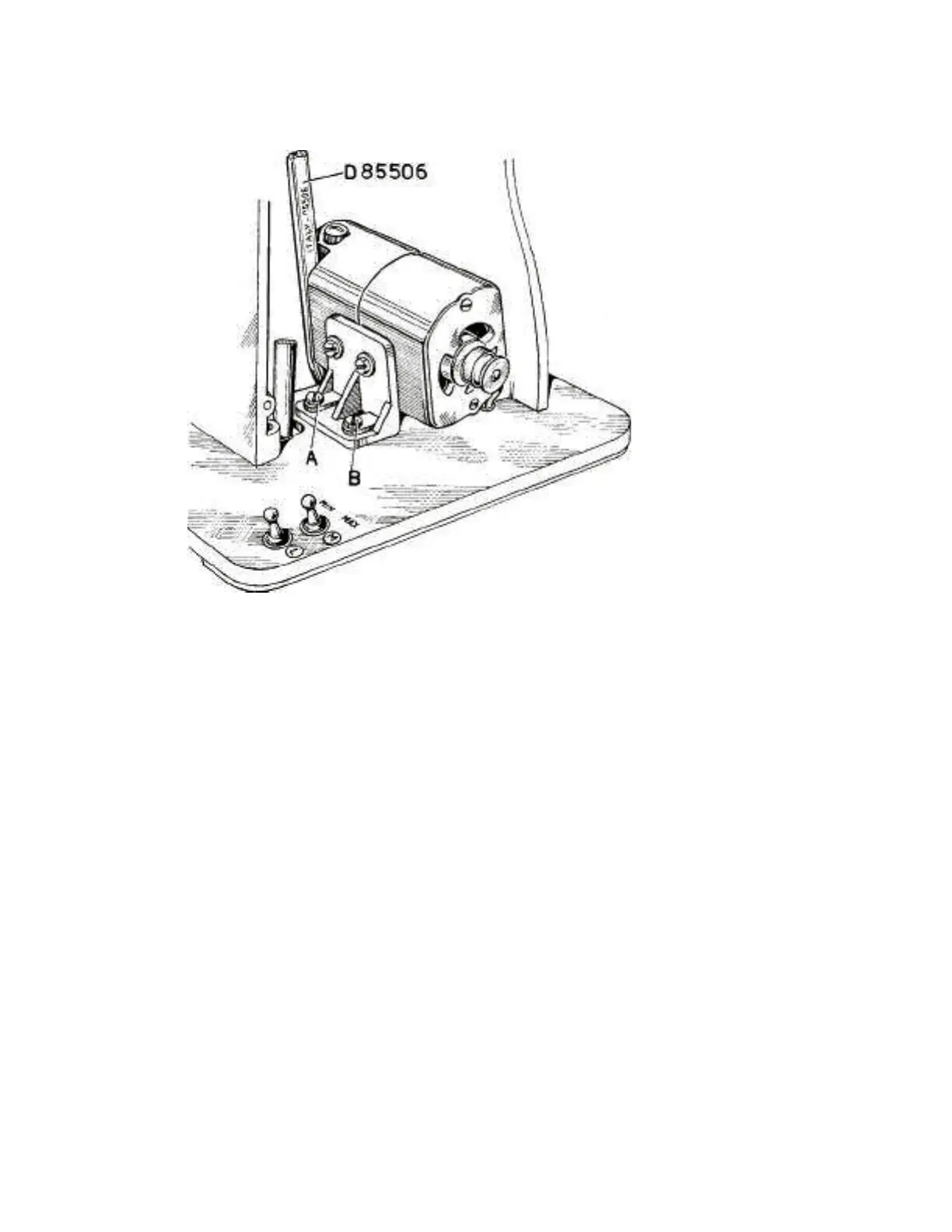

Loosen and remove the two screws " A " and " B " which hold
the motor support on the base of the machine.
