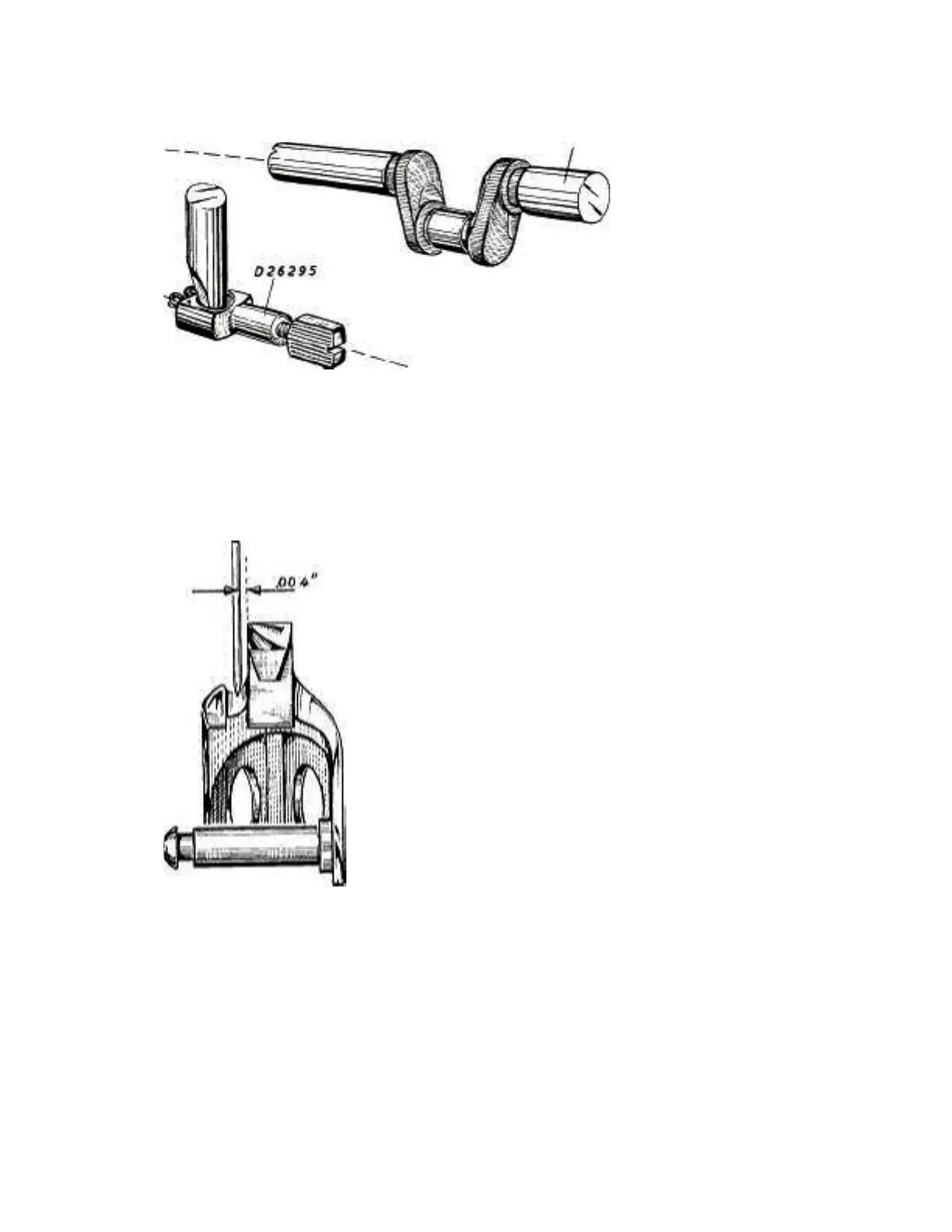

is too far away from the needle, loosen the screw " F " (Fig. 24)
below the bed of the machine. Then, move the race body No. D
26330 with the carrier shaft No, C 26325 in (axial) direction
until the shuttle comes as close as possible to the needle without
touching it. Before tightening the screw " F ", adjustment IV
should be checked.
