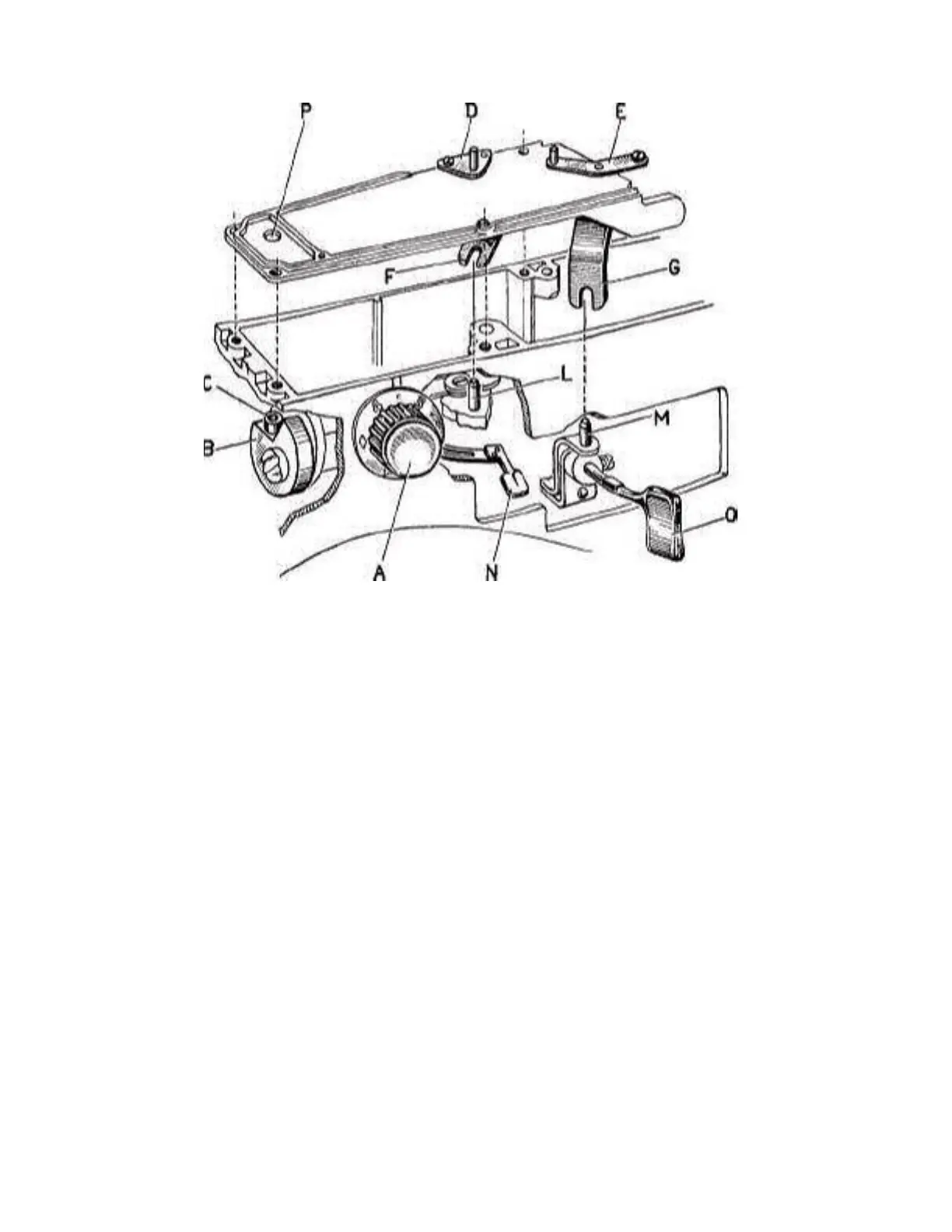

Fig. 101
To replace the mounting plates proceed as follows:
Turn the design graduating knob " A " between " 3 and 4 ".
Turn the flywheel toward you so that the eccentric " B " with the
larger part is facing backward (in this position the head of the
screw " C " (Fig. 101) is upward and is visible through the hole
" P " in the " Automatic " mounting plate).
Bring the zig-zag lever " O " and the needle positioning lever
" N " completely to the left.
Hold the " Automatic " mounting plate with the left hand and
with the right hand move the two pin levers " D " and " E " so
