Before hooking on the two springs Nos. A26/3/18 and A26/3/12
the assembled automatic device, check with a finger whether
the movement regulating ring No. A26/3/15 moves freely in each
direction.

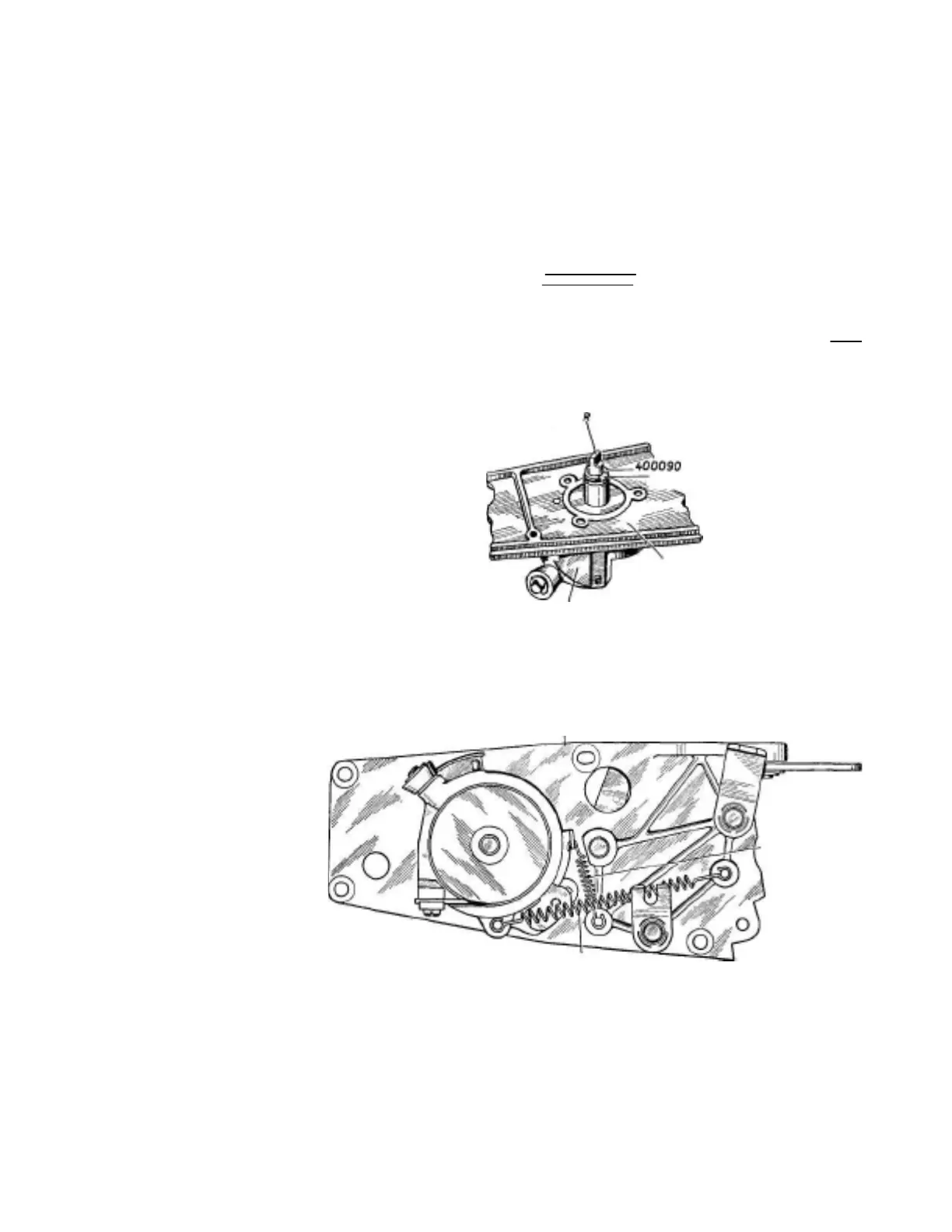

Before inserting the retaining ring No. 400090BZ (Fig. 99), which
keeps the entire lower portion of the Automatic device on the
mounting plate No. C(A26/1/1), use one (or more) distance
wash
ers No. A26/3/14 to eliminate any axiy of the cam axle.
BZ 'A
26/3/14
C(A26/
1/1)
A
26/3/15
Fig. 99
C(A26/1/1)
A 26/3/18
A 26/3/12
Fig.
100
