C (A 26/i/i)
Fig.
The most important points to be watched when assembling this
group are as follows:

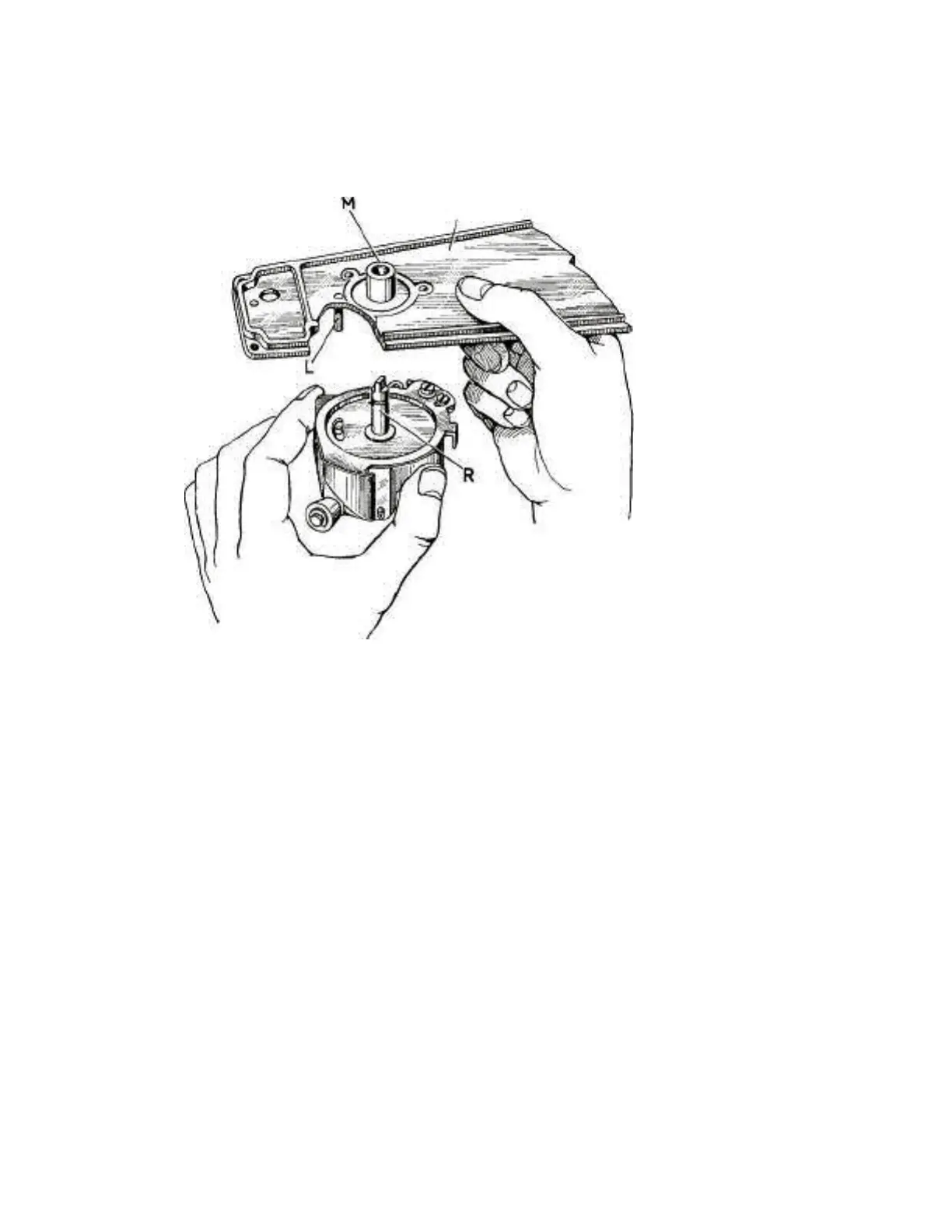

Make certain that the stud " L " of the "Automatic" plate (see
Fig. 98) has entered the hole " A " indicated in Fig. 94. This hole
is the one farthest away from the end of the spring No. A26/1/11.
The windings of the pull spring No. A26/1/11 must not overlap
each other. Furthermore, the end of this spring, which is tightly
held by the small plate No. A26/3/11, must not touch the round
portion of the upper pulling drum No. C(A26/3/6).
