How to adjust the group of Fig. 95 in the mounting plate No.
C(A26/1/1) for the automatic device (see Fig. 98).

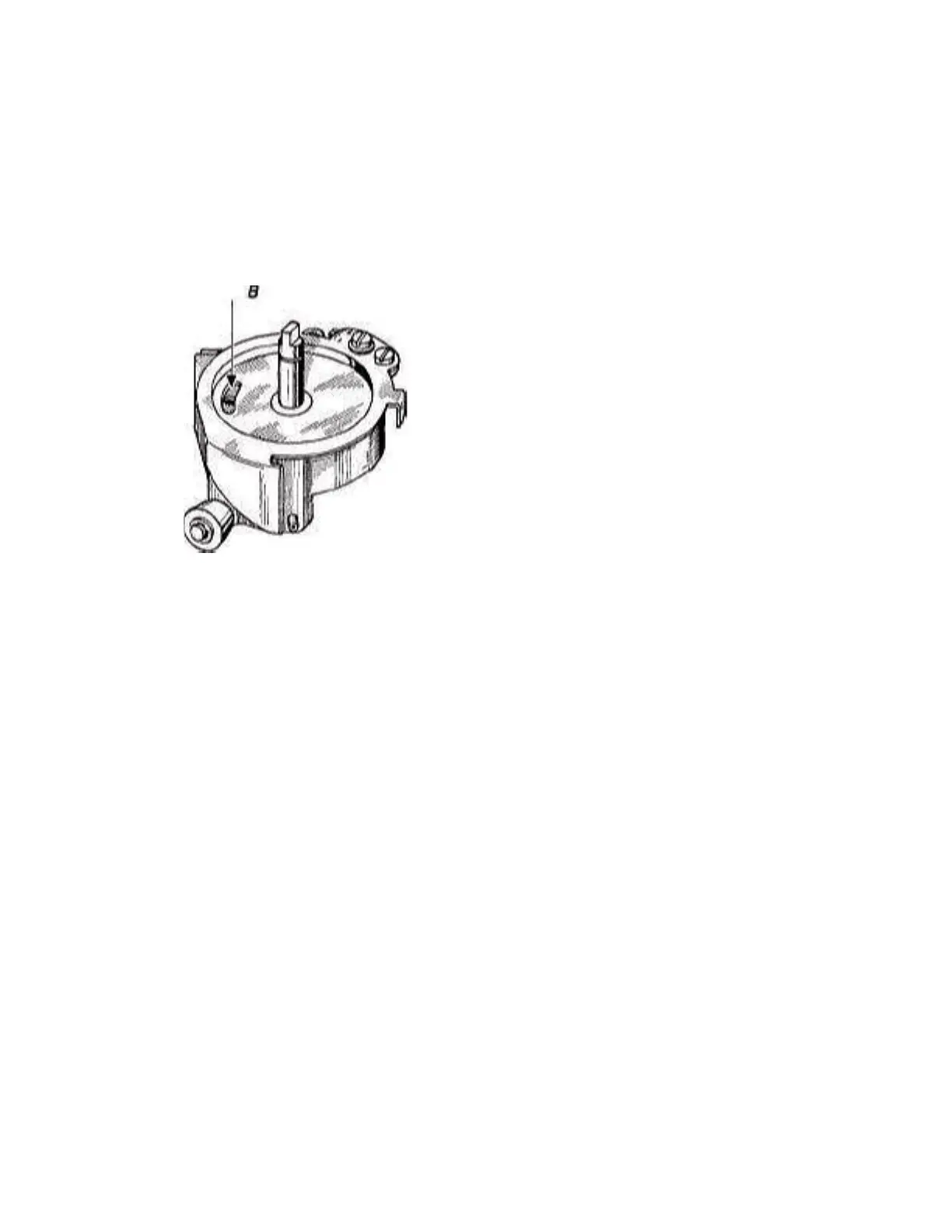

Make certain that the two holes " A " (Fig. 96) coincide and are
visible in the window " B " (see Fig. 97) of the upper pulling drum
No. C(A26/3/6).
NOTE: The stud " L" (see Fig. 98) of mounting plate No.
C(A26/1/1) must enter into both holes " A ".
Fig. 97
Take group of Fig. 95 in your left hand, holding it as its lower
portion, and with your right hand place the " Automatic "
plate No. C(A26/1/1) over it.
Make certain that the cam axle " R " enters the cam axle bear
ing " M " of the " Automatic " plate and the stud " L " enters,
through window " B ", into both holes " A " of Fig. 96.
Place distance washer No. A26/3/14 on top of cam axle as
shown in Fig. 99.
Secure cam axle by means of retaining ring No. 400090BZ.
/) Hook on the springs No. A26/3/18 and No. A26/3/12 as shown
in Fig. 100.
