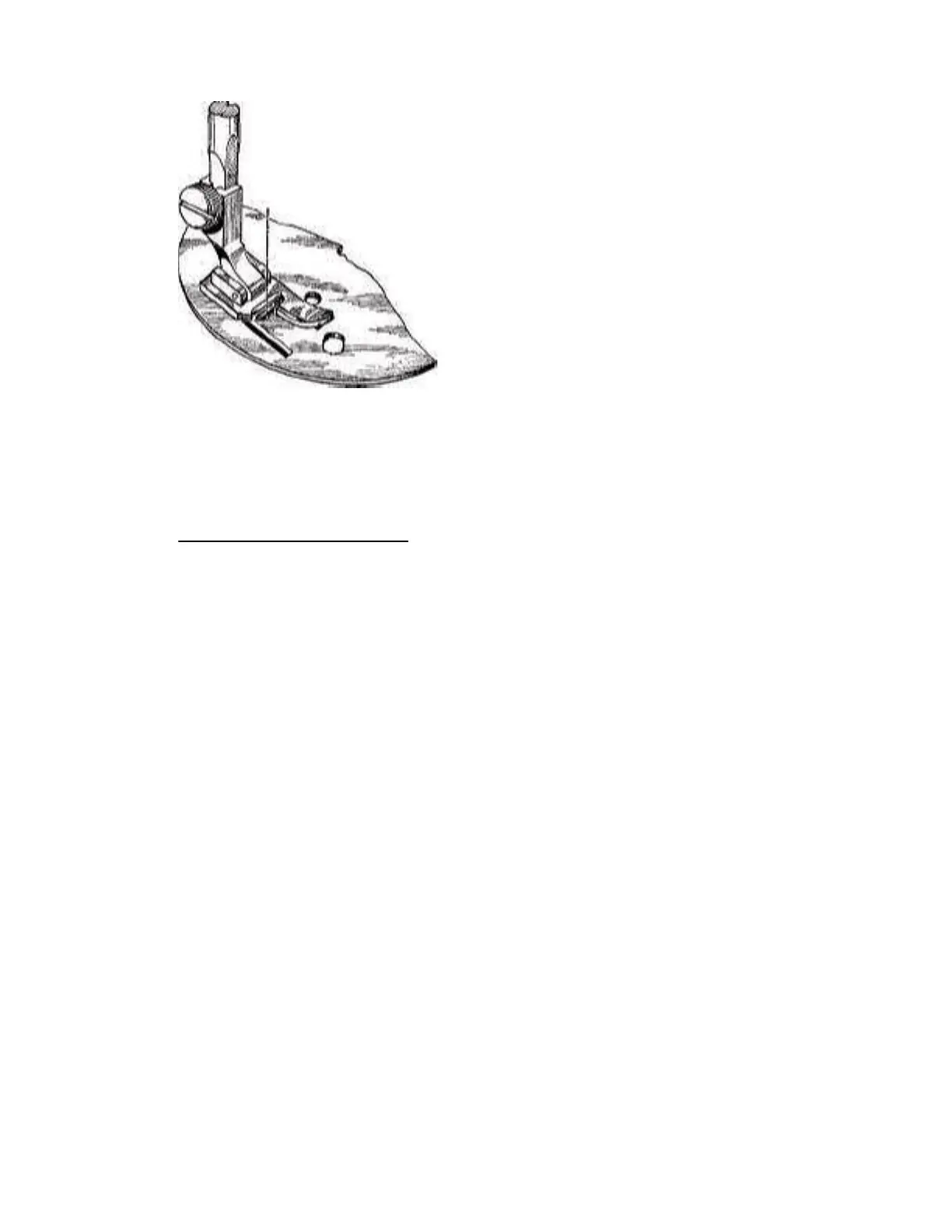

Fig. 62
Tighten the aforementioned screw firmly, first making sure that
the presser bar guide No, 85318 has not shifted upward or
downward from its original position, since this would bring with it
a change of the pressure and the vertical position of the presser
foot.
- Height of presser foot.
(Position in vertical direction)
The presser bar lever No. 20095 (see Fig. 63) permits three
different positions of the presser foot:
The presser bar lever is entirely down.
In this instance, the presser foot rests firmly upon the needle plate
(or, upon the feed dog) and there is some space " a " between the
presser bar lever and the presser bar guide above (Fig. 63).
