Remove top cover.
Disconnect pull-rod " A " from pin " B " (Fig. 37) by pushing it to
the left with a screw-driver or, still better, with a finger. To
facilitate this operation, remove first the cams from the ma-
chine, then swing the cam disengaging lever entirely backward
toward the machine arm.

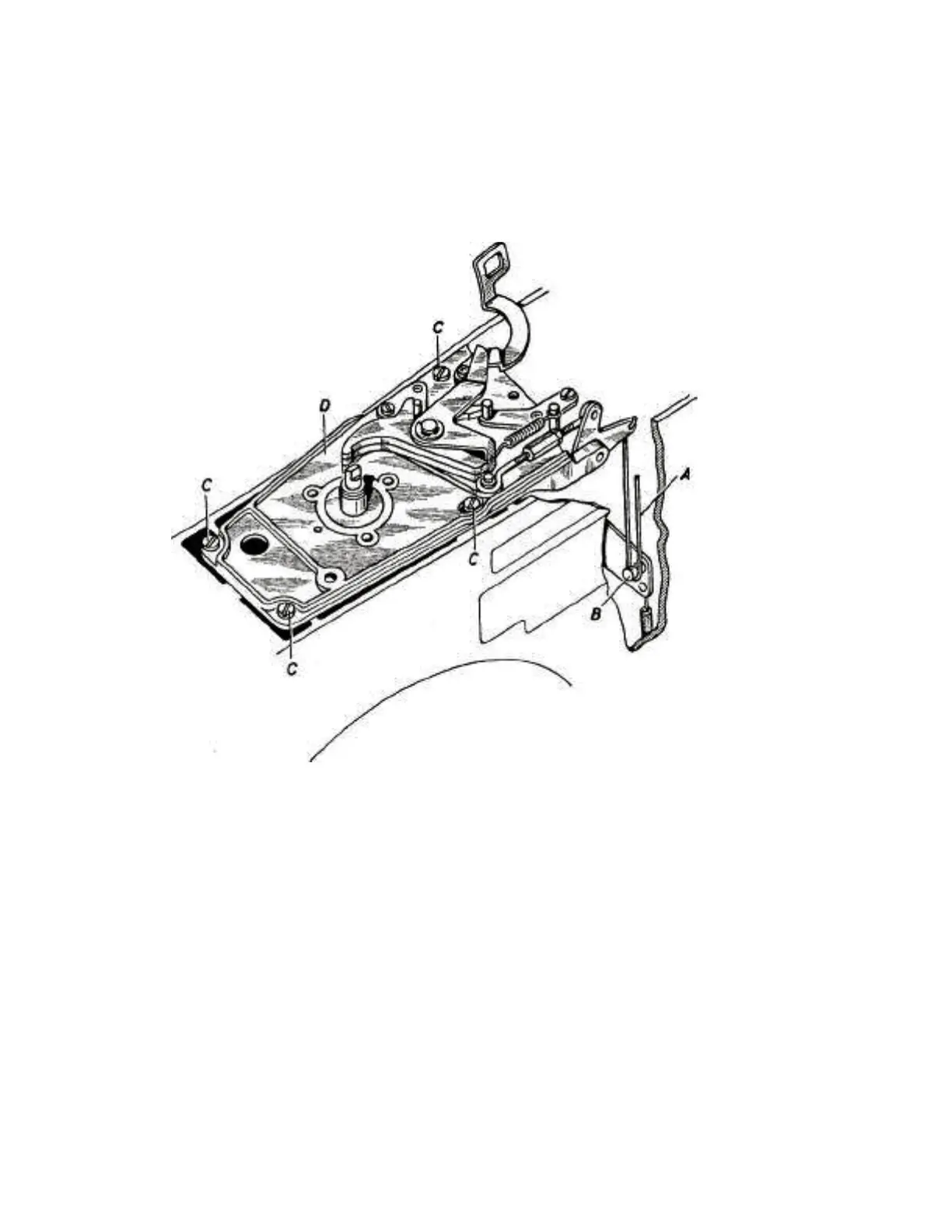

Fig. 37
Loosen the four screws " C " completely.
Raise the mounting plate " D " for the Automatic Device inward.
