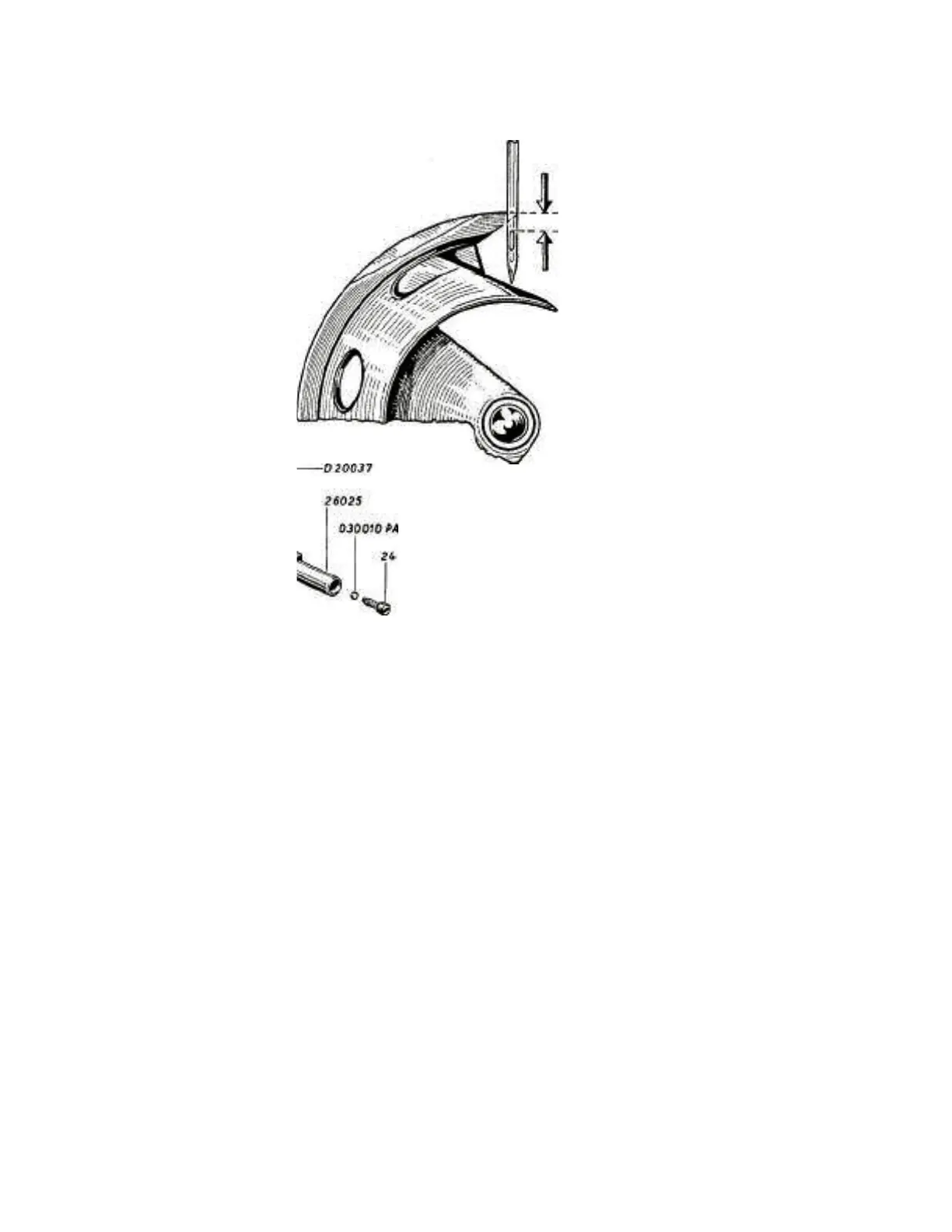

Fig. 16
a - about
1/16"
Fig. 17
the gauge so that it will not be misplaced. In the following, a
description of the use of this gauge is given:
Insertion of the TIMING GAUGE No. 10-5.
Turn the balance wheel by hand and bring the needle bar to its
highest position (Fig. 18).
Replace the normal needle of the needle bar with the false one
of
the gauge. The false needle is inserted in the same way as a
nor
mal one.
Remove the shuttle race cover plate No. 26333 and the
shuttle
No. 26327.
Insert the shuttle-shaped gauge into the shuttle race (Fig. 18).
