TO REMOVE THE FEED ECCENTRIC CONNECTING ROD NO. D
85506 AND THE CONNECTING RODS OF THE STITCH
LENGTH REGULATING MECHANISM (FIGS. 74 AND 75)
20026 D85506

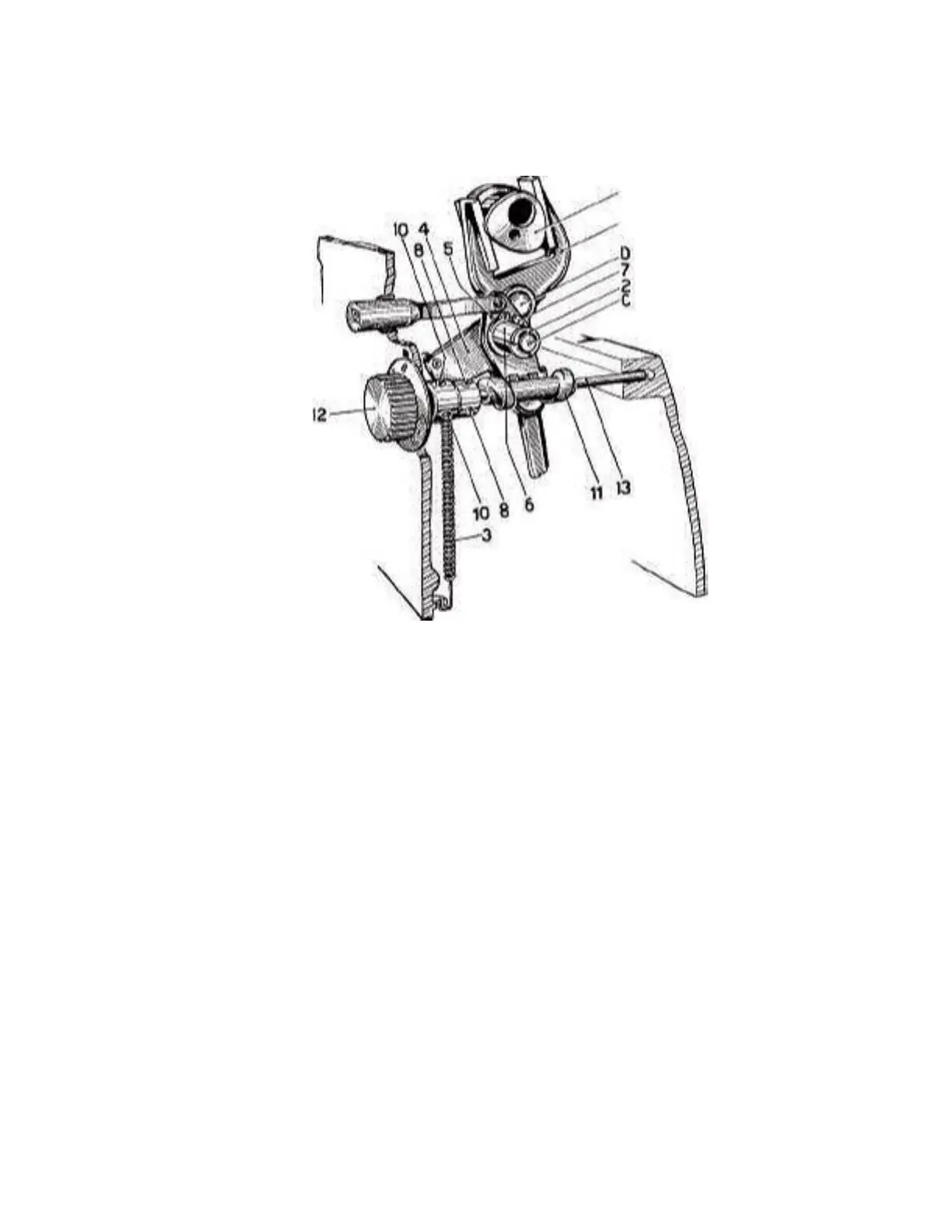

Fig. 74
Dismantle and remove from the machine the feed lifting con-
necting rod No. A 26345 (to loosen the nut at the end of this rod
use the special wrench No. 20-1.
Dismantle the feed eccentric connecting rod No. D 85506 (see
parts list), following this procedure:
