20026
0,011" ^ 0,015
D85506

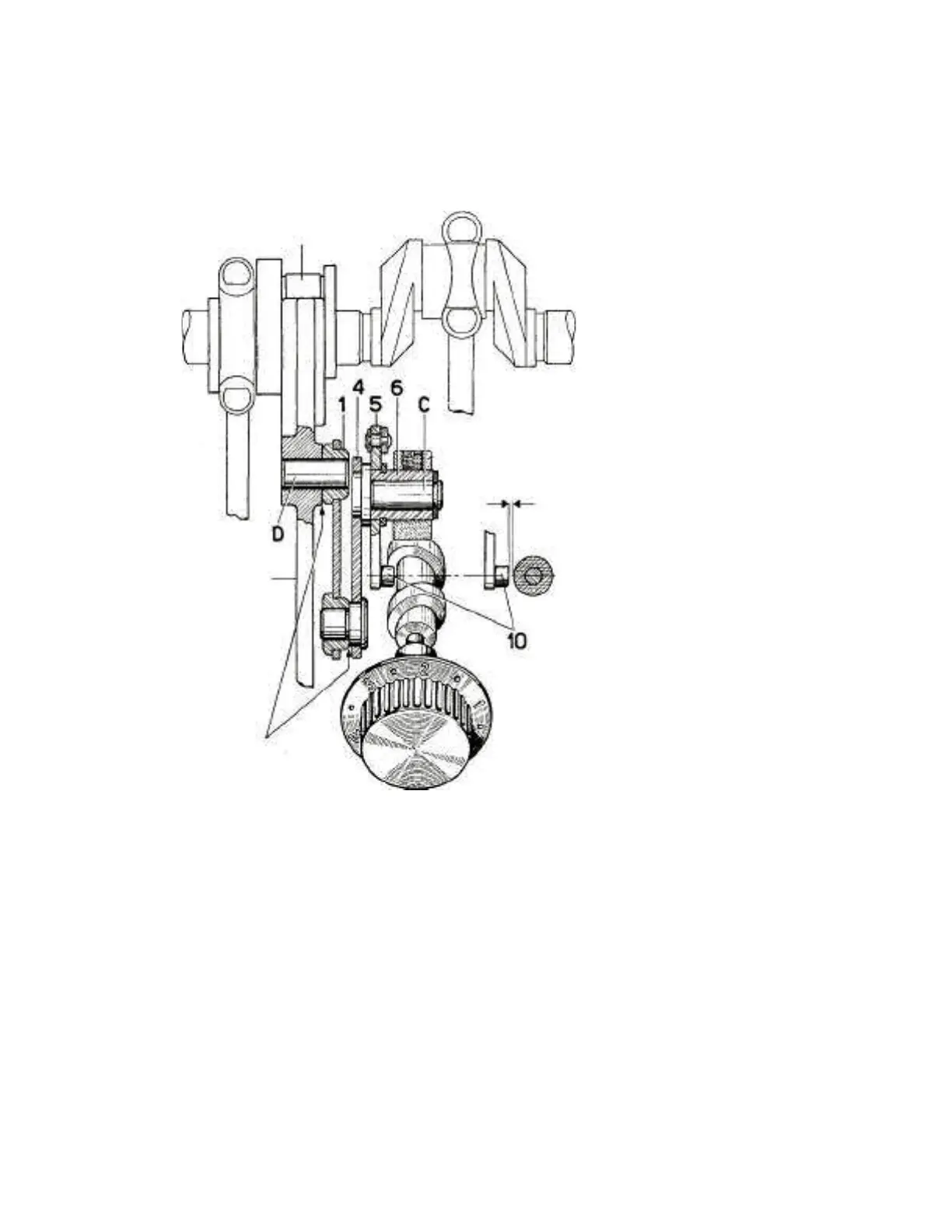

Fig. 76
Insert the longer end portion of the regulating shaft pin " 13 " into
the proper hole in the rear side of the arm.
Note. - While assembling the regulating shaft " 11 ", care must
be taken that the pivot " 10 " in the reverse stitching control plate
" 5 " is located between the two thread portions of the regvilating
shaft, as shown in Fig. 76.
