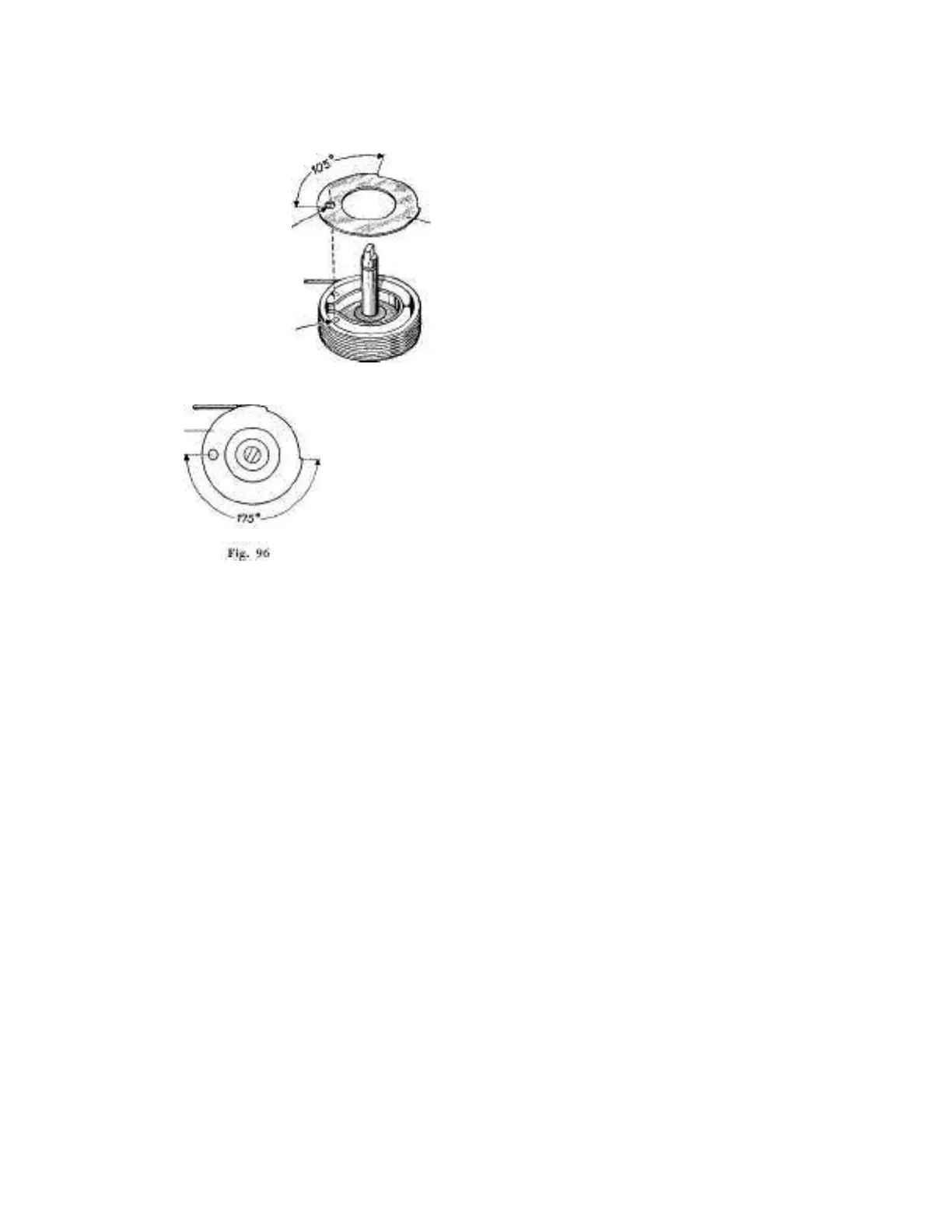

The washer No. A26/3/9 are seen above each other
through the oblong hole " B " of the upper pulling drum No.
C(A26/3/6) as indicated in Fig. 97.
If the thin washer No. A26/3/9 should have moved, push
it (with a pin) into a direction so that the two
aforementioned holes are just above each other.
Place the movement regulating ring No. A26/3/15 (see Figs.
93 and 95) over the upper pulling drum No. C(A26/3/6),
center it perfectly and locate it so that the stop " C " (Fig.
93), which is att ached underneath the m ovemen t
re gu la ting rin g No. A26/3/15, is positioned within the
opening " D " of the upper pulling drum No. C(A26/3/6)
shown in Fig. 93.
