b)
c)
d)

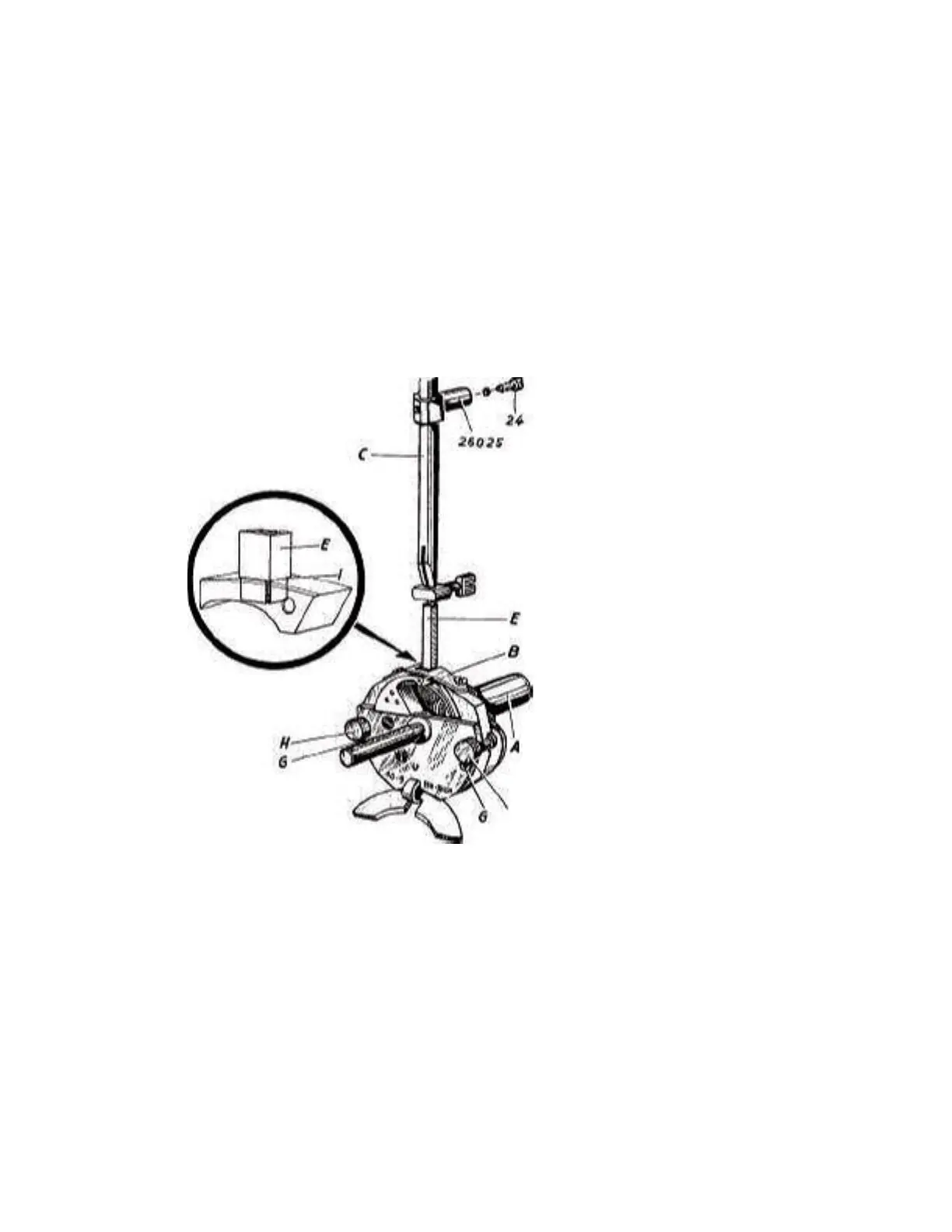

Insertion of the Timing Gauge No. 10-9 and of the
Square-angled Bar E. (Fig. 27).
Remove the presser foot and the needle plate. Remove the
needle and the shuttle.
Insert bar " E " (Fig. 27) of the gauge into the needle bar,
following the same instructions as for the insertion of a
needle. Loosen screw No. 24 of the needle bar connecting
stud No. 26025 so that the needle bar is still held in position
by friction. Hold the balance wheel firmly and push the
needle bar upwards about 7/32".
H
Fig. 27
/) By turning the balance wheel toward you by hand, bring
the needle bar " C " to its lowest position.
From this point onward and during the timing operation, DO NOT
turn the machine.
