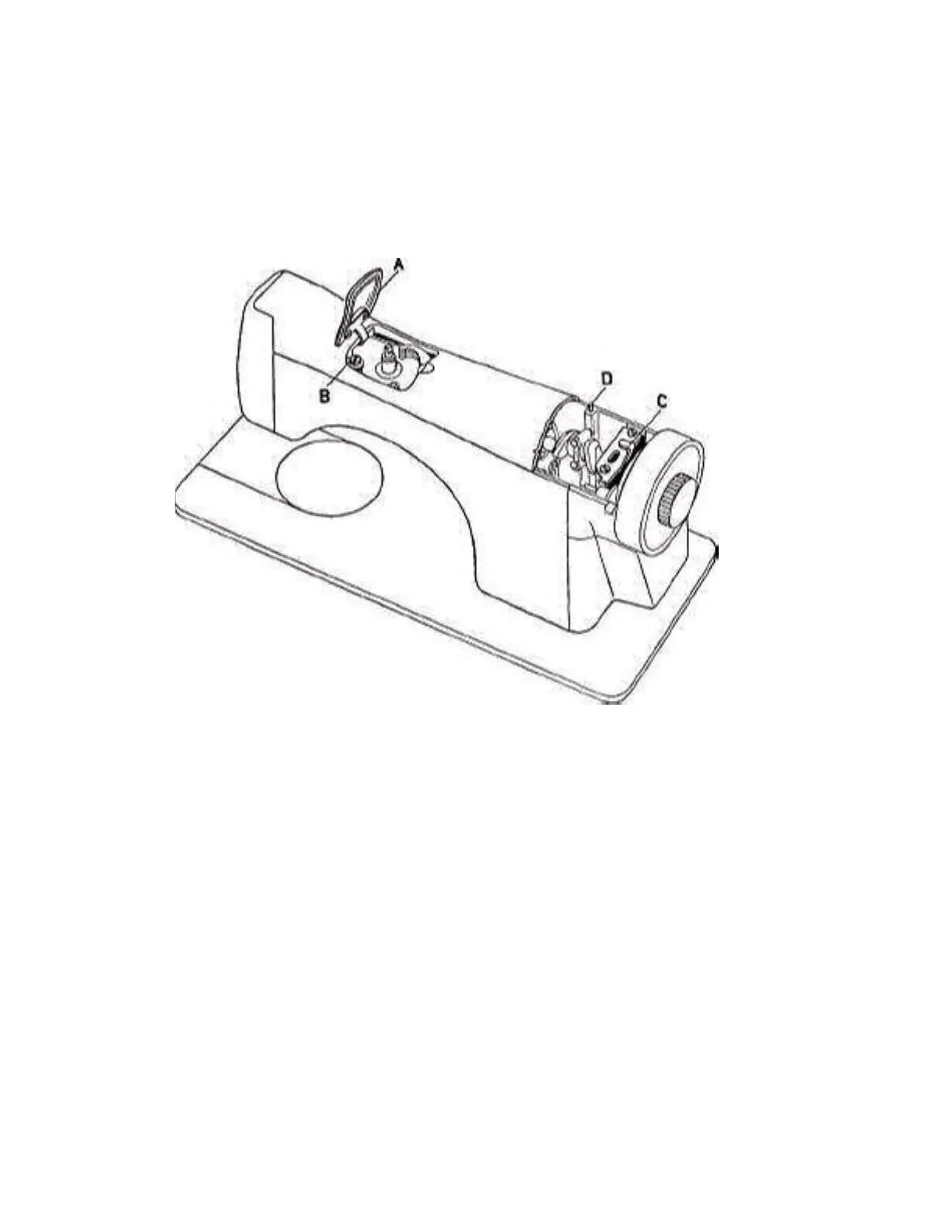

Open the small cover " A " (Fig. 32).
Loosen full screw " B " (without taking it away).
Raise the top cover, holding it at the left end.
When replacing the top cover it is necessary that the hook " C "
(Fig. 32) and the pin " D " on the arm enter into their component
positions in the top cover.
Fig. 32
Turn the flywheel until the two screws 048080 GEB of the feed
dog eccentric 20026 (Fig. 33) are visible and loosen them slightly.
Turn the feed dog eccentric on the upper shaft C 85201 (taking
care not to move it sideways) until the feed dog is in the correct
position as already explained above.
After the adjustment has been made tighten the two screws
048080 GEB securely.
