Necchi Supernova - Page 92

041030 DA
035150GAN—^
/ \ \
042090 GAB
85545' 85544
N
85589
Fig. 79
D8555
9-
041030
DA
042090
GAB
035150
GAN
85545
85589 Fig.
80

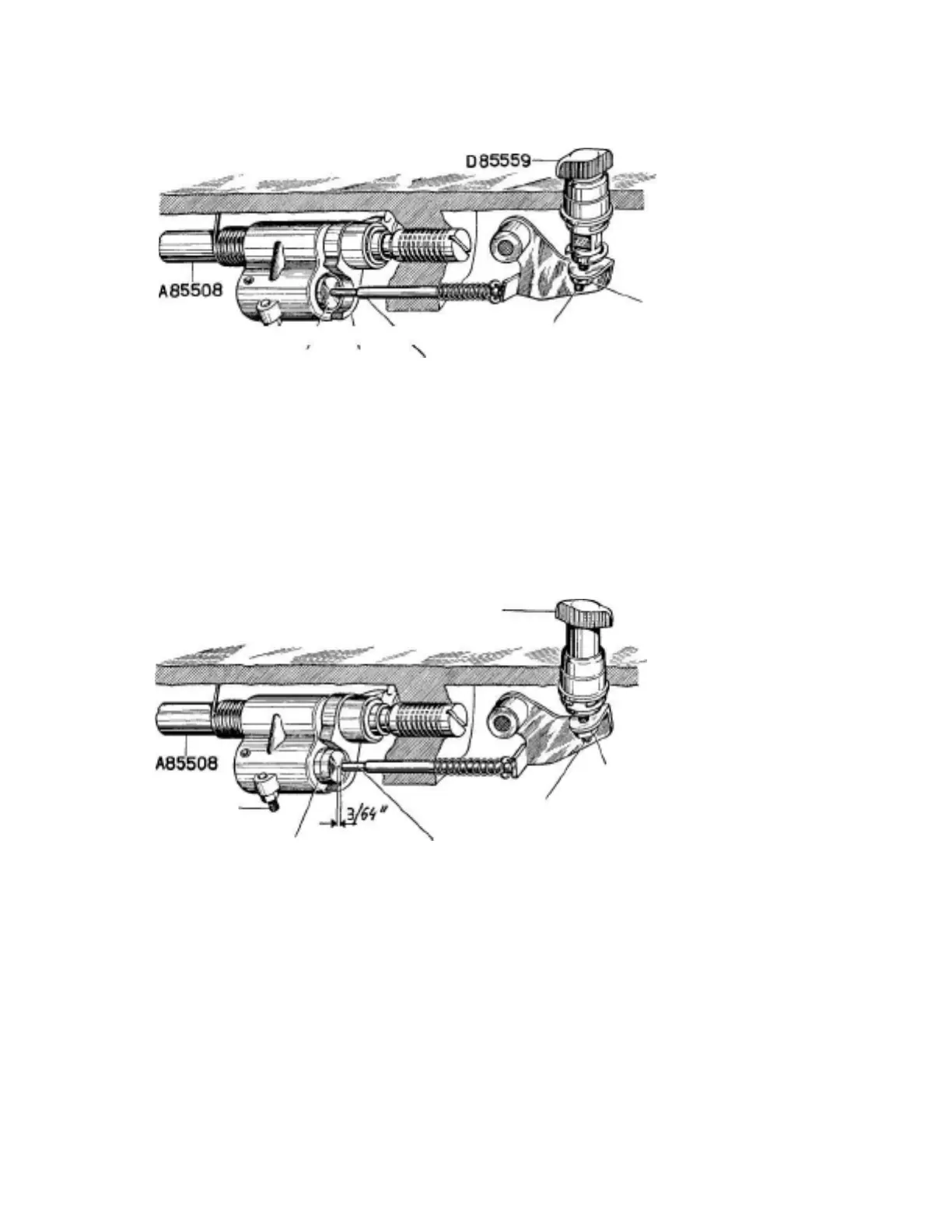

Conversely, when the knob No. 13 85559 is completely raised
(see Fig. 80), there must be a space of about 3/64" between the
push pin No. 85589 and the conical part No. 85545.
