3 Description PRIMUS 2 HVA2N
3.1 General product description
The PRIMUS 2 HVA2N laser is a fully-automatic dual slope rotating laser for
horizontal and vertical use. With the PRIMUS 2 HVA2N the tilt is also moni-
tored (Chapter 8.6)! The innovative shock protection system and the robust,
water and dustproof housing protects the high power laser under virtually all
indoor and outdoor operating conditions.
3.2 Specifications
Fully-automatic rotating laser PRIMUS 2 HVA2N
Self-levelling range ±5°, motorised with automatic monitoring
Levelling accuracy better than ±0,05mm/m
Adjustable tilt (X/Y axis) ±10 %
Accuracy of the slope function better than ±0.015 %
Laser model < 5 mW, Laser class 3R, 635 nm
Operating voltage 6 V
Operation duration approx. 100 h with rechargeable batteries/approx.
120 h with batteries
Weight 4,0 kg
Dimensions (width/depth/height) 210×208×200 mm
Working temperature range –20 °C to +50 °C
Charging temperature –5 °C to +40 °C (recommended: +10 °C to +20 °C)
Working range with COMMANDER 2
HVA2N
700 m diameter
Rotational speed 10, 60, 300, 600 rpm
Scan angle 0°, 5°, 10°, 15°
Class of protection IP 66
Working range of remote control 150m
(In optimum conditions: direct line-of-sight
contact between PRIMUS 2 and
COMMANDER 2)

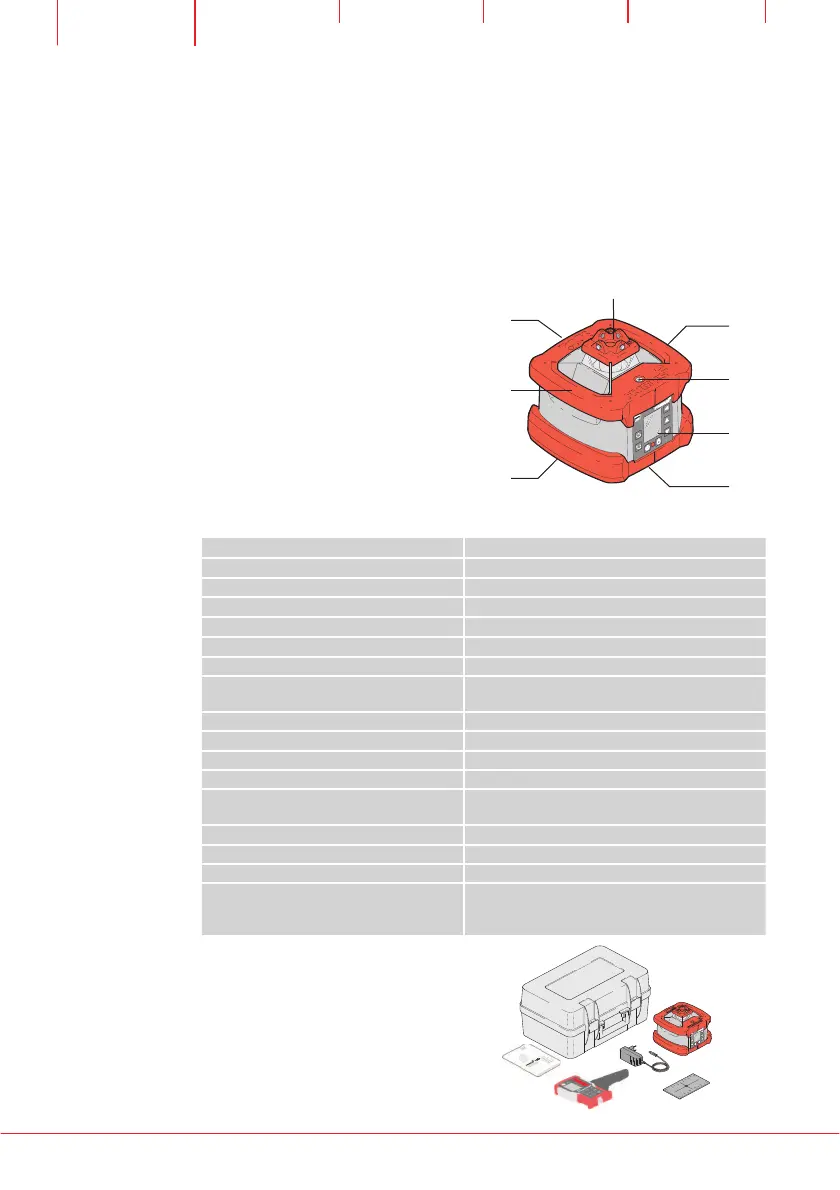

3.3 Scope of Delivery
1 Rotating laser
2 Handle, rubberised
3 Spirit level
4 Control panel with buttons and display
5 5/8“ threaded bushing (bottom)
6 Battery/rechargeable battery
compartment
7 Handle, rubberised
8 5/8“ threaded bushing (rear)
1 Rotating laser PRIMUS 2 HVA2N
2 Magnetic target board
3 COMMANDER 2 HVA2N
4 Operating Instructions
5 Transportation case
6 Charger
