50 EN Operating Instructions
9 AUTOALIGN
9.1 Function AUTOALIGN
The AUTOALIGN function makes the COMMANDER 2 HVA2N to tilt the laser
plane of PRIMUS 2 HVA2N laser in order to align the laser plane to the zero
line of COMMANDER 2 HVA2N. AUTOALIGN single aligns the laser plane
once to the zero line of COMMNADER 2 HVA2N and locks it there – the
grade of the laser plane will not be monitored during the following operation.
AUTOALIGN permanent aligns the laser plane to the zero line of COMMAND-
ER 2 HVA2N and keeps it aligned all time – the grade will be monitored
continuously AUTOALIGN works in horizontal as well as in vertical setup of
PRIMUS 2 HVA2N.

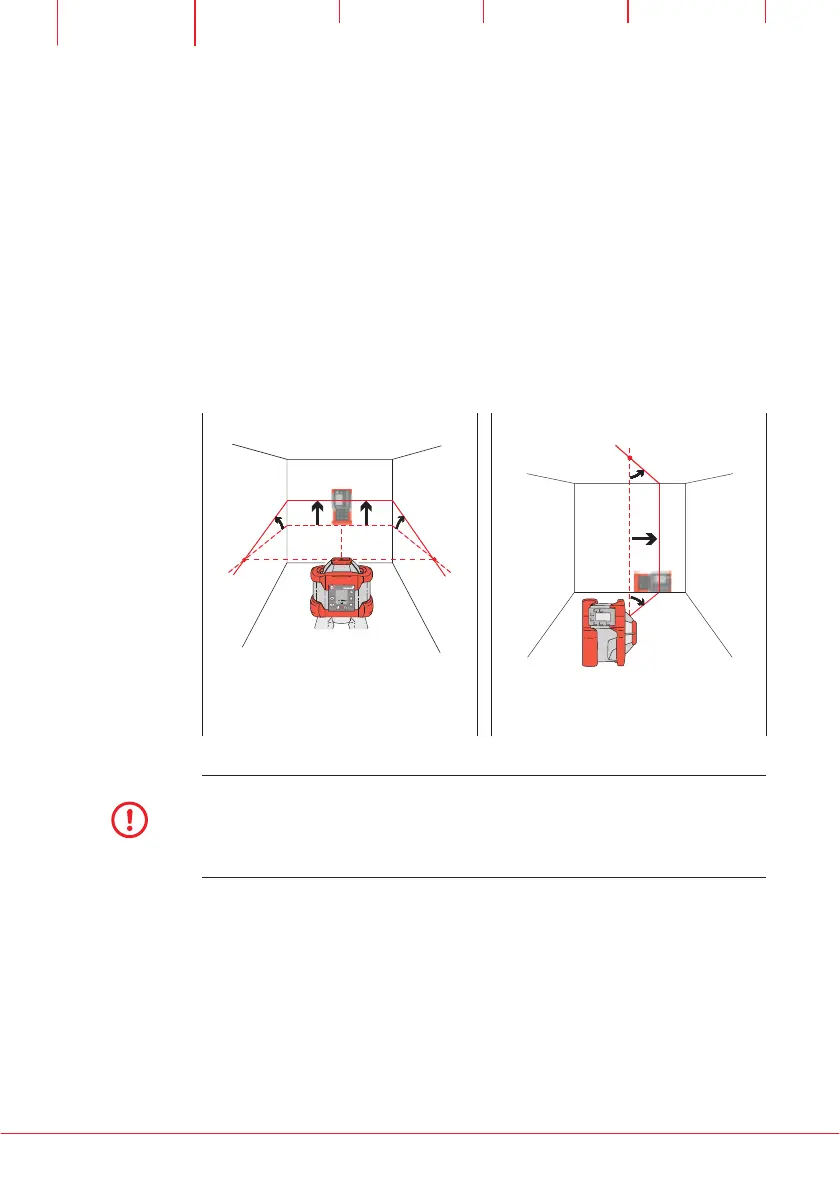

AUTOALIGN
in horizontal setup
in vertical setup
PRIMUS 2 HVA2N tilts its Y-Axis to the zero
line of COMMANDER 2 HVA2N
PRIMUS 2 HVA2N tilts its X-Axis to the zero
line of COMMANDER 2 HVA2N
NOTE
f In horizontal setup COMMANDER 2 HVA2N must be placed in direction of the
Y-Axis
f In vertical setup COMMANDER 2 HVA2N must be placed in direction of the X-Axis
f AUTOALIGN works in an angular range of +/- 5°.
f AUTOALIGN works in a distance range of up to 50m maximum.
< 50m
±5%
±5%
< 50m
