Nellcor N-20 - Components

Set-up

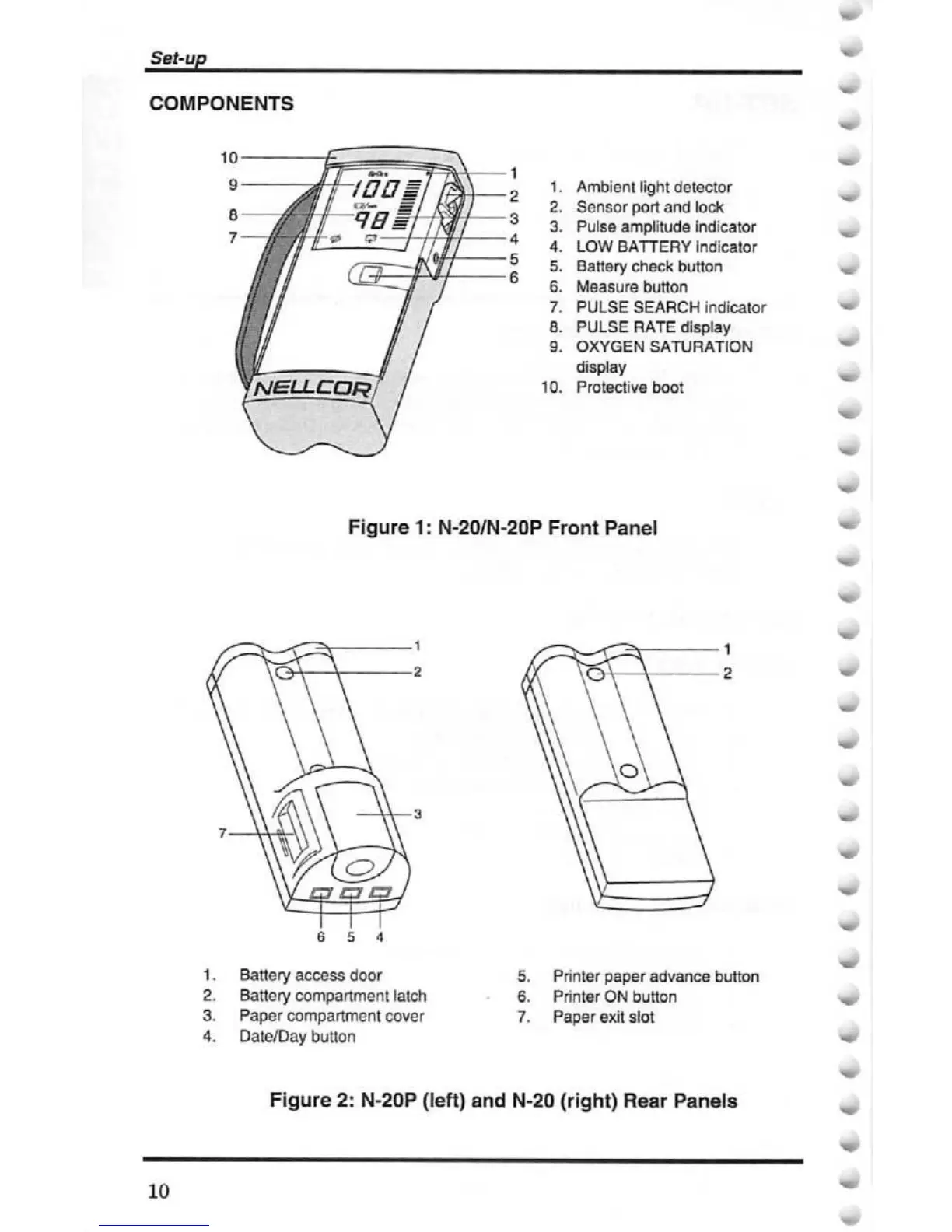

COMPONENTS
1. Ambient light detector
2. Sensor port and lock
3.
Pulse amplitude indicator
4. LOW BATTERY indicator
5. Battery check button
6. Measure button
7. PULSE SEARCH indicator
8. PULSE RATE display
9. OXYGEN SATURATION
display
10. Protective boot
Figure 1: N-20/N-20P Front Panel
10
1. Battery access door
2. Battery compartment latch
3. Paper compartment cover
4. Date/Day button
5. Printer
paper advance button
6. Printer ON button
7. Paper exit slot
Figure 2: N-20P (left) and N-20 (right) Rear Panels
~
-
~
«
-
-
-
~
•
•
•
