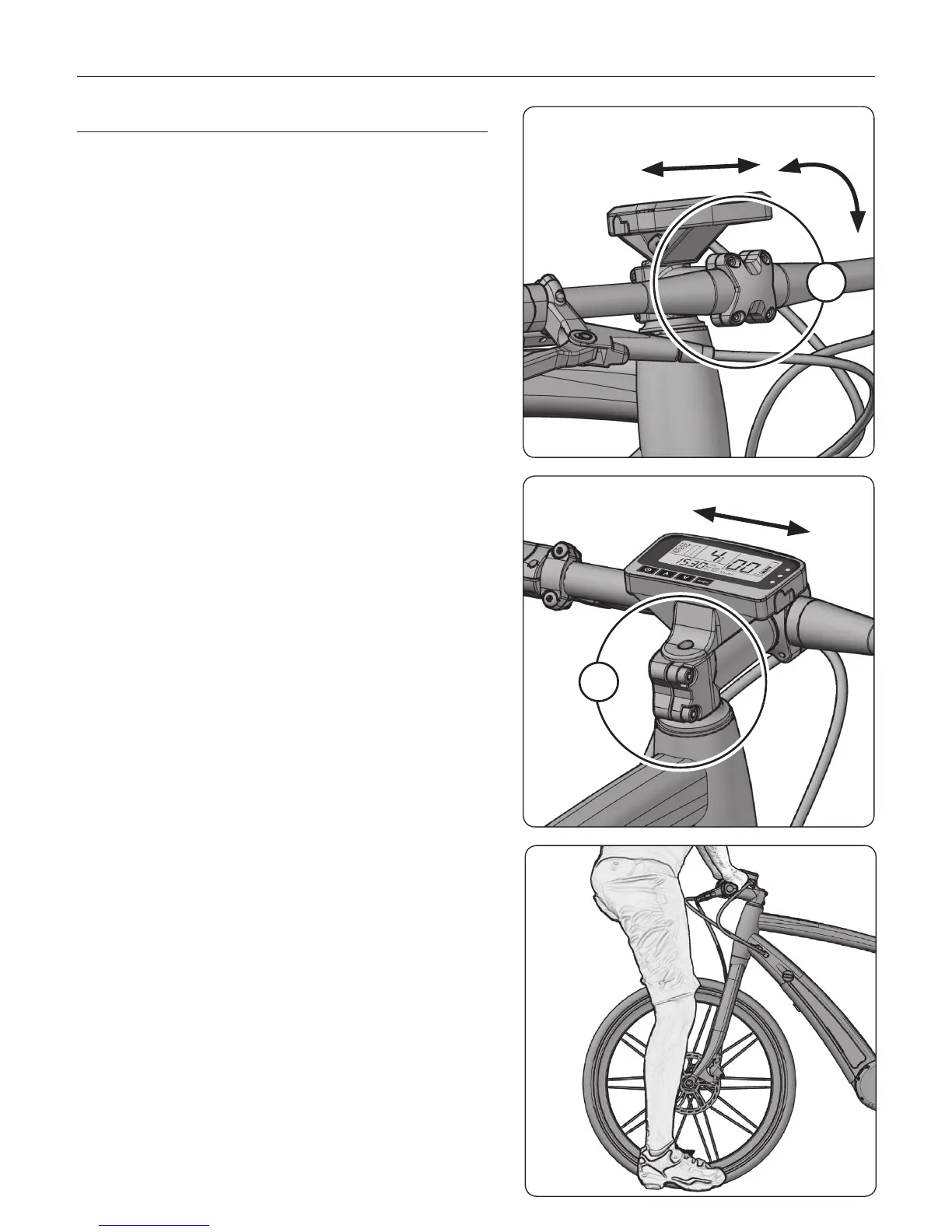

Handlebar - Fig 01
1. Loosen the screws in area (A) until the
rotational movement of the handlebar is
achieved.
2. Rotate and/or position the handlebars to
the desired position B.
3. Check that the handlebars are in a centred
horizontal position C.
4. Tighten the 4 screws with a torque wrench
to the level marked on the aected part.
Handlebar Stem - Fig 02
1. Loosen the screws in area (A) until the sup-
port rotates.
2. Perfectly align the wheel moving in direc-
tion B while clamping the wheel as shown in
Fig. 3.
3. Tighten the 2 screws in area (A) with a
torque wrench to the level marked on the af-
fected part.
A
01
B
C
A
02
B
03
