NEOX User manual - Edition 03-201634
lock for assemBly and taking apart of the Battery.
Features:
The key can be turned on two positions and it can be ex-
tracted only in OPEN position.
1 CLOSE position: the battery is inserted and hooked in
the right position.
2 OPEN position: the battey is unlocked and can be remo-
ved from the bike.

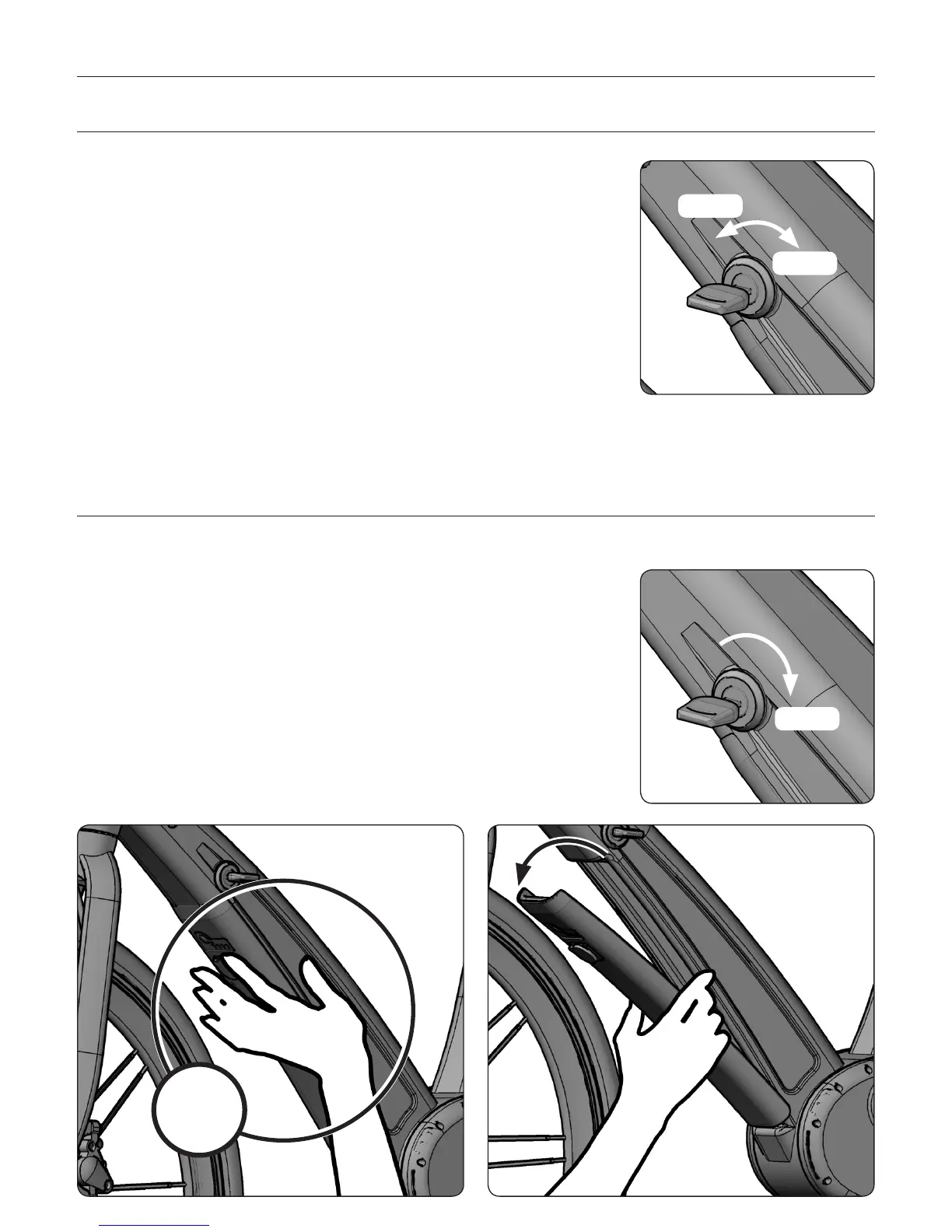

Hold the battery (2) with the right hand in order to be
sure that, once opened the block system inside the main
pipe of the frame by key rotation, this doesn’t fall down.
Turn it clockwise (fig. 1) until complete rotation to the
right.
Pull out the battery by tilting it downwards. (fig.3)
Close
Open
03
01
02
Open
!
