Neptune E-CODER User Manual

Programming the LO Register
Use the Neptune field programmer to select the
ProRead Program tab for programming.

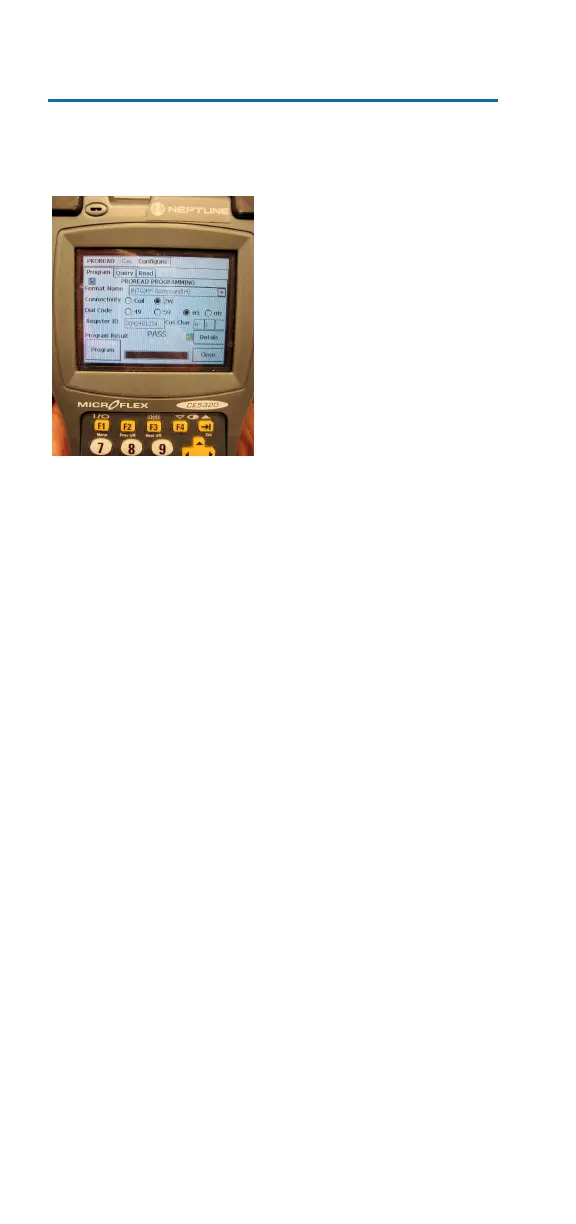

Figure 18: LO Register
1. Select RF Compound LO
format.
2. Match the Connectivity
2W.
3. Match the Dial Code 65.
4. Type the appropriate
Register ID.
5. Program the register.
6. Read or query the register
to confirm correct
programming.
- 12 -

Neptune E-CODER Specifications

General

Output	Digital
Power Source	Battery or external power
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Power Supply	3.6V Lithium Battery
Dimensions	Varies depending on model
Weight	Varies depending on model
