6: Wiring Networked Registers
Complete the following steps to wire the networked
registers.
1. Connect each color wire with the appropriate color
wire from the pigtail and both registers, until all
three colors have been successfully connected.

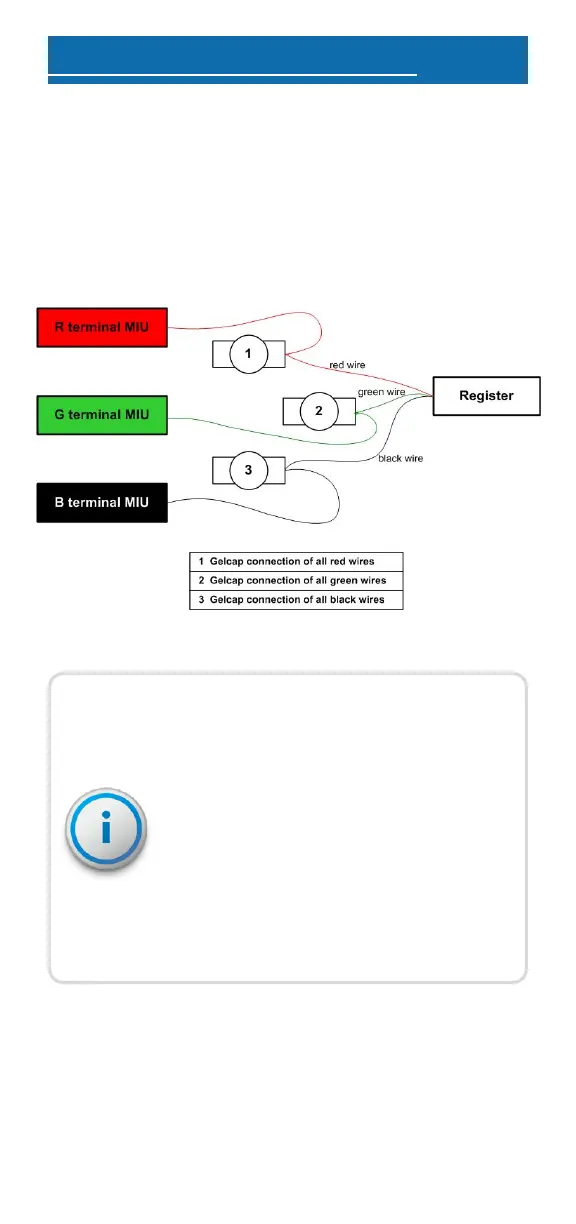

Figure 19: Interconnection of Like Terminals
Remove any bare or non-insulated wire.
Insert only insulated wire into the splice
connector.
Observe proper polarity as shown in the
above figure, when wiring the registers
so that all terminals are interconnected
with wires of the same color: red, black,
or green.
2. Proceed with "Activating the E-CODER
®
"
on page15.
- 13 -
