2. Remove the terminal cover with a flat-head
screwdriver.

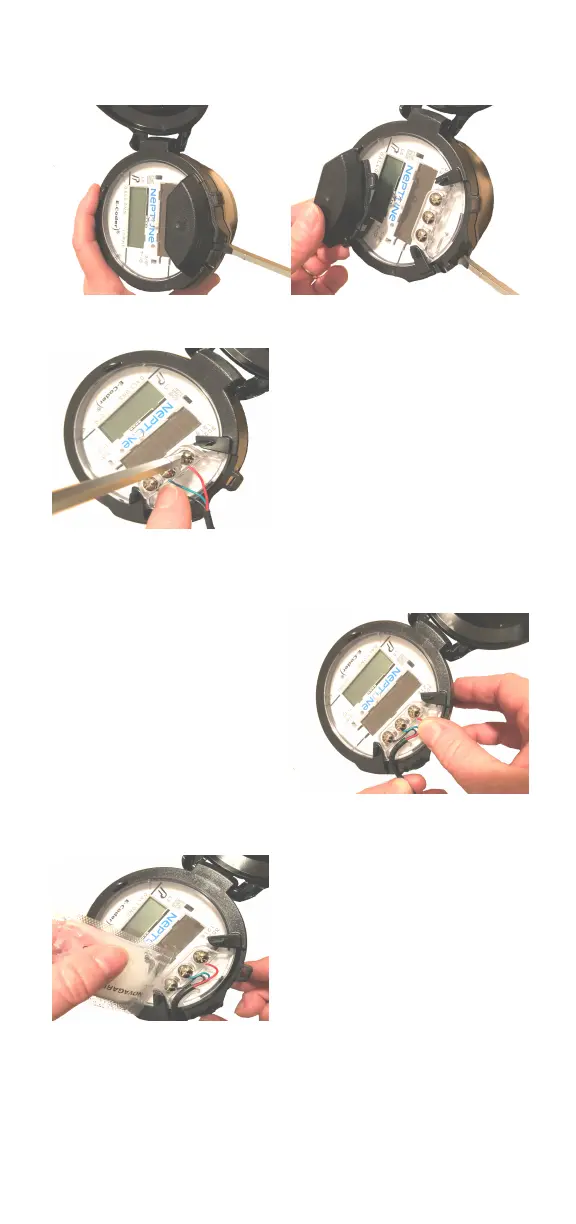

Figure 2: Removing the Terminal Cover
3. Wire the encoder
register with the
proper colors.
4. Test the wiring to verify
the read.
Figure 3: Wiring with
Proper Color Wires
5. Route the wires as
shown.
Figure 4: Routing the Wire
Figure 5: Applying
Compound
6. Apply Novagard
®
G661
or Dow
®
Compound
#4 to the terminal
screws and exposed
bare wires.
- 5 -
