INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
28
Active Powers
Total Active Powers
When active power values are displayed, if DOWN button is pressed,
import active and export active power values are displayed. As seen in
below , first example in, total active import power vales and in third display,
total active export valves are displayed.
Note : The dot at the most right digit of the third display represents
that displayed value is export active power value.

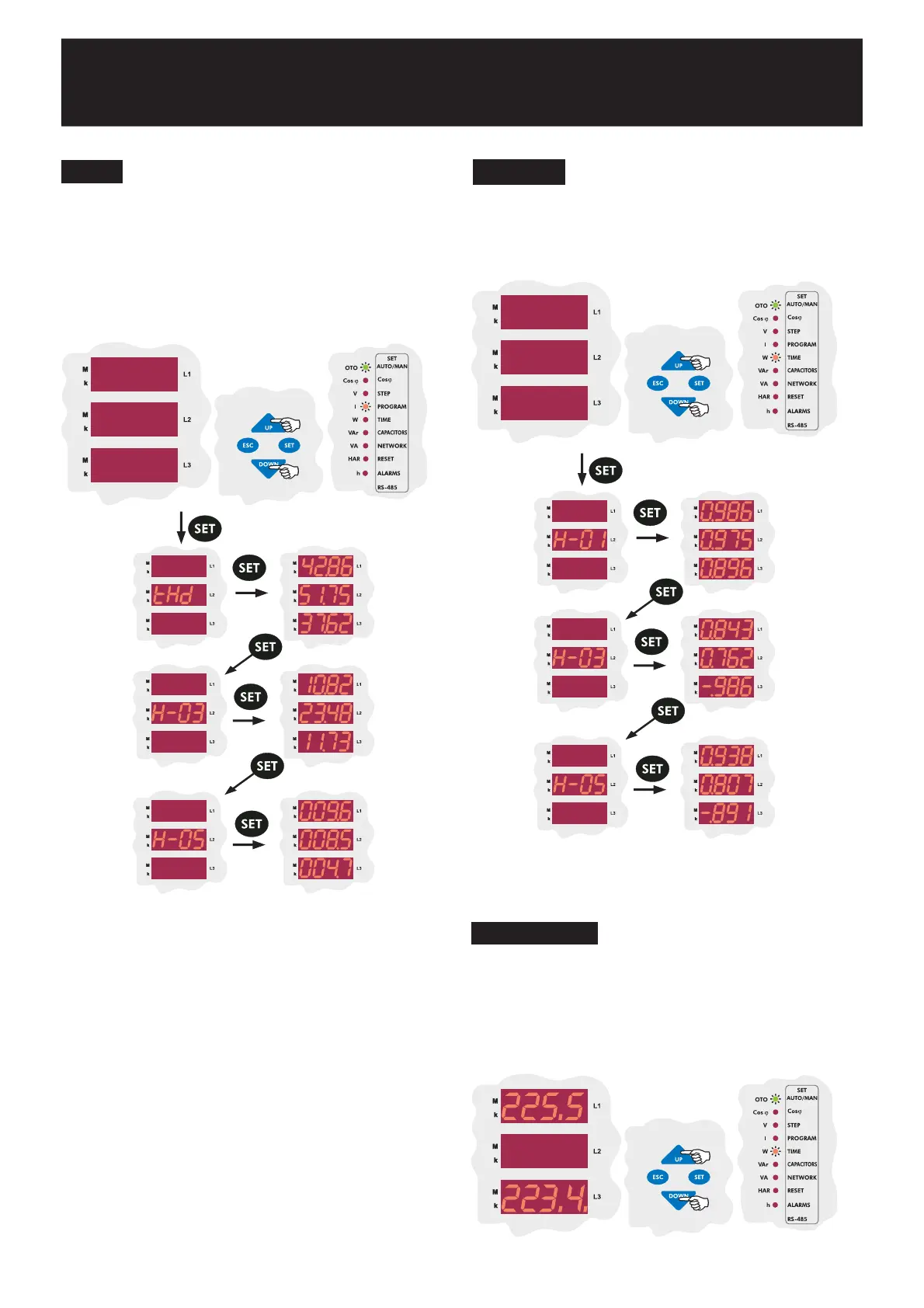

W and HAR leds on the display represent that displayed values indicate
active power harmonic values. By pressing SET button one by one, odd
harmonic values (up to 19th harmonic) can be observed.
In the measurement mode, phase-phase current values can be displayed
by using UP/DOWN buttons when I led lights.
When phase current values are displayed, if SET button is pressed
(HAR led lights), odd harmonic values (up to 19th harmonic) can be
observed.
If the point at the most right digit blinks, it represents that displayed active
power value is export active power value.
In the measurement mode, active power values can be displayed by using
UP/DOWN buttons when W led lights. When active power values are
displayed, if SET button is pressed (HAR led lights), odd harmonic
values (up to 19th harmonic) can be observed.
Currents
I and HAR leds on the display represent that displayed values indicate
current harmonic values. By pressing SET button one by one, odd
harmonic values (up to 19th harmonic) and THD values can be observed.
25.87
32.56
18.93
225.5
228.7
223.4
