Neptune RM-12P - Active Import Energy, Active Export Energy, Inductive Reactive Energy, Capacitive Reactive Energy, Temperature, Error Codes; Error Codes

Note : When you reset energy values using energy counter reset
menu, active and reactive energy values are both reset.
(Refer to Page 14 - Reactive / Active ratio reset settings)
Capacitive Reactive Energy
Temperature
Inductive / Active ratio is displayed in first display
and adjusted inductive/active ratio is displayed in
third display.
(Refer to page 18 - Inductive ratio setting)
In below example, E represents that displayed parameter is export
(Capacitive) energy and the remaining numbers show the energy value
(such as 4035386,2 kVArh)
temperature value which is measured via external connected thermocouple
is displayed.
Below display represents that measured temperature is 45°C.
Note : This feature is optional.
Capacitive / Active ratio is displayed in first display
and adjusted capacitive / active ratio is displayed
in third display.
(Refer to page 17 - Capacitive ratio setting).
Note: When you reset reactive / active ratio, the value in the first
display is reset and the value is updated continiously.
(Refer to page 14 - Reactive / Active ratio setting)

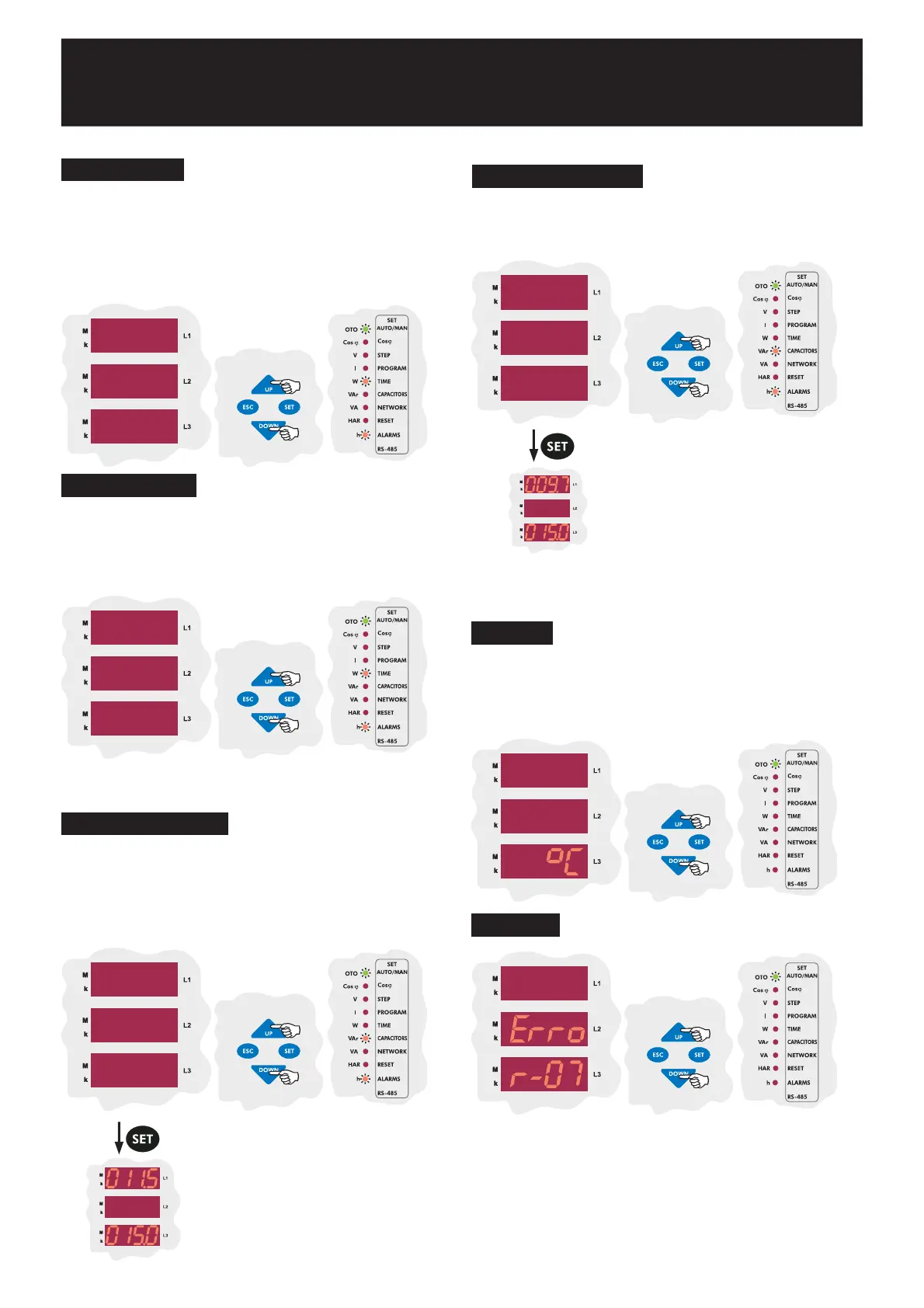

In the measurement mode, active import and active export energy values
can be observed by using UP/DOWN buttons, when W and h leds light.
In below example, I represents that displayed parameter is import energy
and the remaining numbers show the energy value.
(such as 203385706,8 kWh)
When active import energy is displayed, if DOWN button is pressed,
active export energy is displayed.
In below example, E represents that displayed parameter is export energy
and the remaining numbers show the energy value. (such as 45168,3 kWh)
In the measurement mode, inductive reactive and ca pacitive reactive
energy values can be observed by using UP/DOWN buttons when VAr
and h leds light.
In below example, I represents that displayed parameter is import energy
(inductive) and the remaining numbers show the energy value
(such as 7649,3 kVarh).
Error Codes
Note : The descriptions and reasons for the error codes are mentioned
in the alarm codes table. (Refer to Page 31 - Alarm Codes)
INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
Active Import Energy
1-20
3385
706.8
Active Export Energy
E-00
0045
168.3
Inductive Reactive Energy
1-00
0007
649.3
E-00
4035
386.2
45
30
Related Alarm LED is lighted if any failure is occured for any
reason. When user request for monitoring the errors scrolling
UP/DOWN buttons until displaying the Error-xx. This clause
is not displayed if there is no error. All the error codes are
displayed respectively by pressing the SET button.
(such as
Error - 07,12...)
