Reactive Powers
Total Reactive Powers

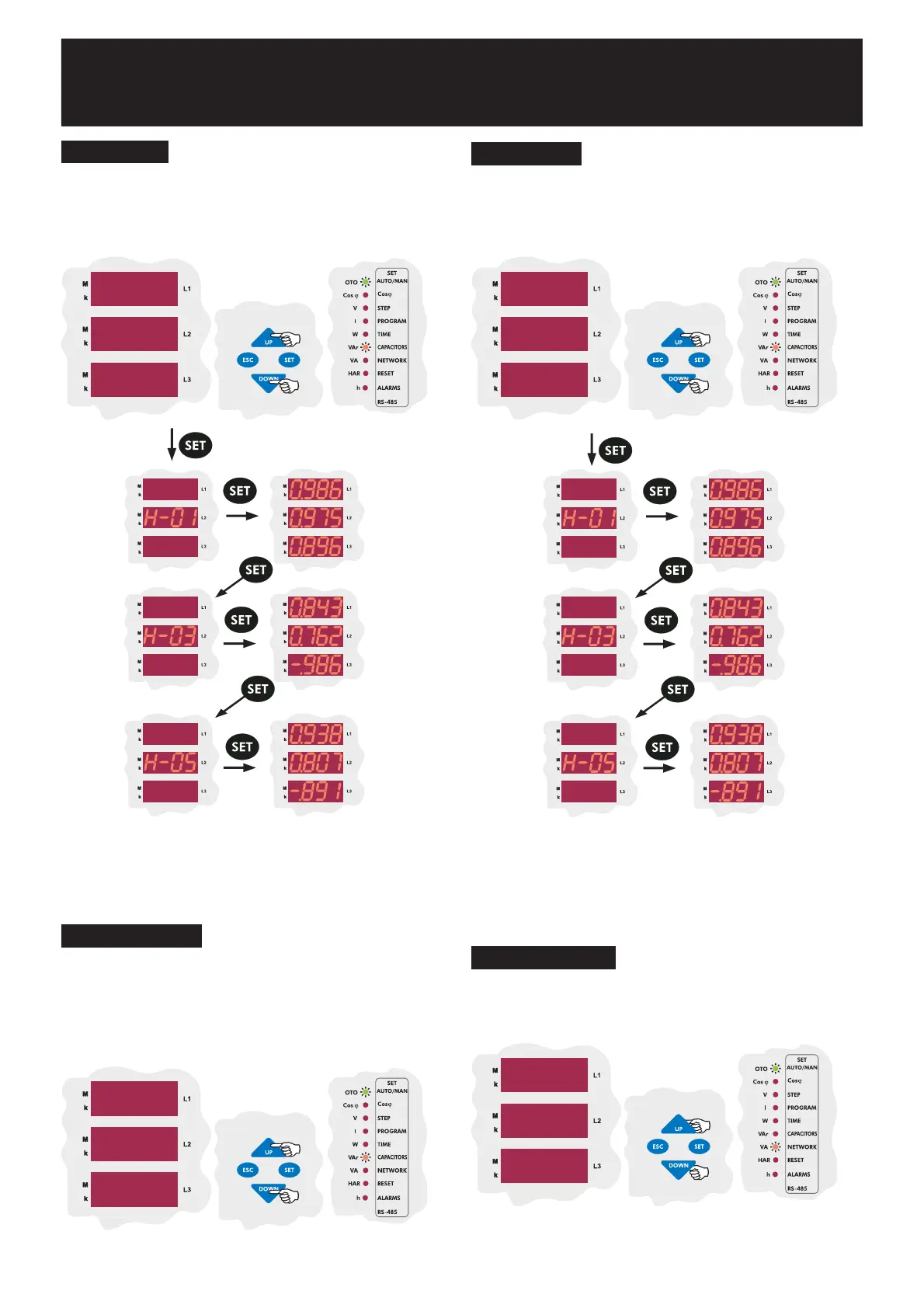

VAr and HAR leds on the display represent that displayed values indicate
harmonic values of the reactive powers. By pressing SET button one
by one, odd harmonic values (up to 19th harmonic) can be observed
VA and HAR leds on the display represent that displayed values indicate
harmonic values of the apparent powers. By pressing SET button one
by one, odd harmonic values (up to 19th harmonic) can be observed.
In the measurement mode, reactive power values are displayed by using
UP/DOWN buttons when VAr led lights. When reactive power values
are displayed, if SET button is pressed (HAR led lights), odd harmonic
values (up to 19th harmonic) can be observed.
When active power values are displayed, if DOWN button is pressed,
inductive reactive and capacitive reactive power values are observed.
As seen in below example, in first display, total reactive inductive power
value and in third display, total reactive capacitive power value is displayed.
Note : The dot at the most right digit of the third display represents
that displayed value is capacitive reactive power value.
INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
225.5
228.7
223.4
225.5
223.4.
Apparent Powers
In the measurement mode, aparent power values are displayed by using
UP/DOWN buttons when VA led lights. When apparent power values
are displayed, if SET button is pressed (HAR led lights), odd harmonic
values (up to 19th harmonic) can be observed.
225.5
228.7
223.4
When apparent power values are displayed, if DOWN button is pressed,
total apparent power is displayed in second display.
Total Apparent Powers
228.7
