Neptune RM-12P - Current and Voltage Transformer Ratio Settings

INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
12
2
SAUE
If you do not want to set another parameter, in order to quit from the
menu, press ESC button one by one until SAVE SEt yES is displayed.
Press SET button to save your changes or press ESC button to quit
without saving.
Enter power value of the second capacitor step and then press SET
button. If you do not want to set another parameter, press ESC button.
CAP C-03
In this menu, capacitor setting for third step are done.
CAP C-04
In this menu, capacitor setting for fourth step are done.
CAP C-05
In this menu, capacitor setting for fifth step are done.
CAP C-06
In this menu, capacitor setting for sixth step are done.
CAP C-07
In this menu, capacitor setting for seventh step are done.
CAP C-08
In this menu, capacitor setting for eighth step are done.
CAP C-09
In this menu, capacitor setting for nineth step are done.
CAP C-10
In this menu, capacitor setting for tenth step are done.
CAP C-11
In this menu, capacitor setting for eleventh step are done.
CAP C-12
In this menu, capacitor setting for twelveth step are done.
Above capacitor steps settings are done just like second capacitor step
(C-02 setting).
In this menu, current transformer ratio can be set between 1-2000.
For example : For 150/5 current transformer, CT ratio must be set as 30.
Note : Take care that this value must be the ratio not CT primary or
secondary value.
3.7.a Current Transformer Ratio Setting
To obtain accurate power values, current and voltage transformer ratios
must be set correctly. If any value was not set as current and voltage
transformer ratios, these values are supposed to be 1 and capacitor
powers will be calculated according to these values.
Current and voltage transformer ratios can be set separately.

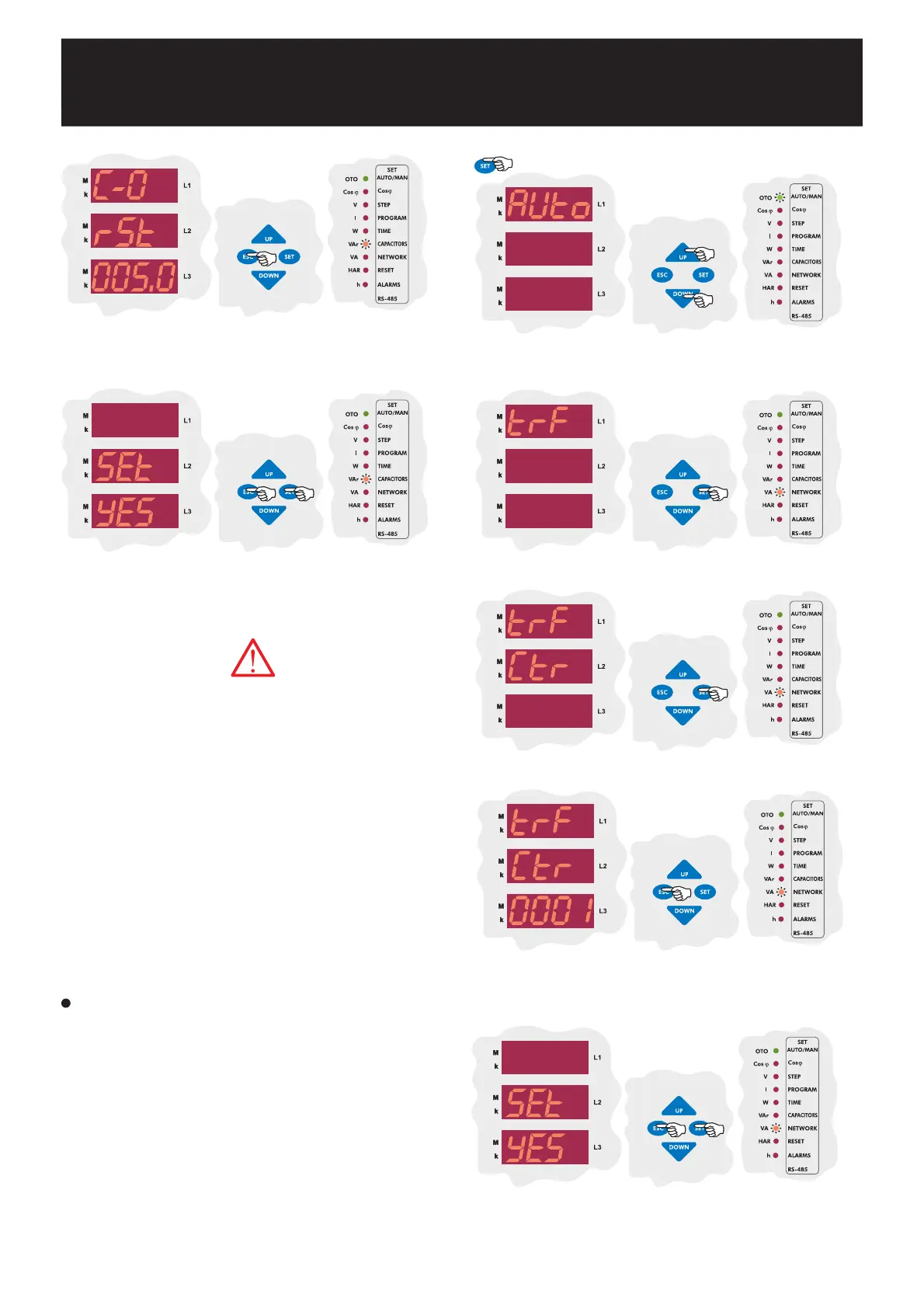

By UP/DOWN buttons, find current and voltage transformer ratio menu
(trF). When this menu is selected, transformer (VA/TRF) led lights.
Press SET button to set CT and VT ratios.
Press SET button to set CT ratio.
Enter CT ratio between 1-2000 and press SET button. If you do not want to
set another parameter, press ESC button.
SAUE
If you do not want to set another parameter, in order to quit from the
menu, press ESC button one by one until SAVE SEt yES is displayed.
Press SET button to save your changes or press ESC button to quit
without saving.
3.7 Current and Voltage Transformer Ratio Settings
Press SET button for 3 sec. in order to enter to the menu.
3 sec.
