PROGRAMMING

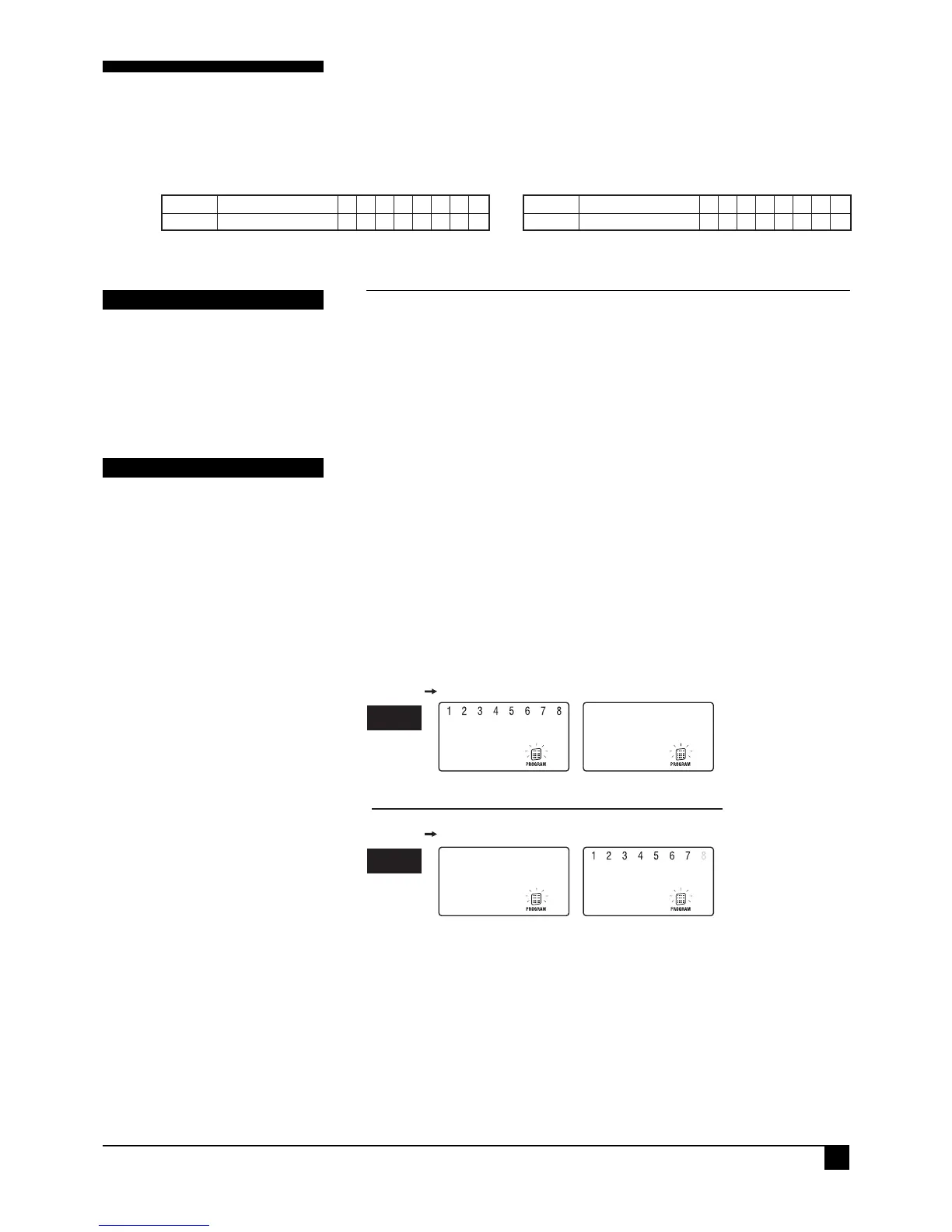

NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL
P47E, P48E
DESCRIPTION:
Area 1 User Codes
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
All User Codes assigned to Area 1
ASSIGNING USER CODES TO AREAS
Assign (or remove) User Codes to Areas.
PROGRAMMING SEQUENCE:
P47E 1E-8E toggles the options ON and OFF
Assigns User Codes 1-8 to AREA1
P48E 1E-7E toggles the options ON and OFF
Assigns User Codes 9-15 to AREA1
P49E 1E-8E toggles the options ON and OFF
Assigns User Codes 1-8 to AREA2
P50E 1E-7E toggles the options ON and OFF
Assigns User Codes 9-15 to AREA2
EXAMPLE:
To assign User Codes 1-8 to AREA1 and User Codes 9-15 to AREA2.
P47E turn ON lights 1-8
P48E turn OFF lights 1-7
P49E turn OFF lights 1-8
P50E turn ON lights 1-7
P49E, P50E
DESCRIPTION:
Area 2 User Codes
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
User Code 1 (Master Code) assigned to
Area 2.
NOTES:
• User Codes can be assigned to either a
single Area or to both Areas.
• If a User Code is assigned to NO Areas,
the code is effectively disabled and will
not operate the panel.
• To make a User Code arm or disarm just
one Area, assign that code only to the
required Area.
• Assigning User Codes to Areas has no
effect unless zones are also assigned to
Areas.
• For this option [Zone No] E toggles the
selection ON and OFF.
EXAMPLE:
User codes 1-8 are
assigned to AREA 1.
EXAMPLE:
User codes 9-15 are
assigned to AREA 2.
ON = Factory default setting.
OPTION No OPTION NoDESCRIPTION DESCRIPTION
P47E P48ECodes 1-8 to AREA1 Codes 9-15 to AREA1ON ONON ONON ONON ONONON ONON ON
ON
ON ON
P49E P50ECodes 1-8 to AREA2 Codes 9-15 to AREA2
1E User Code 1
1E User Code 9
2E User Code 2
2E User Code 10
3E User Code 3
3E User Code 11
4E User Code 4
4E User Code 12
5E User Code 5
5E User Code 13
6E User Code 6
6E User Code 14
7E User Code 7
7E User Code 15
8E User Code 8
User Codes
User Codes
2345678
1
P47E User Codes 1-8
P49E User Codes 1-8
P48E User Codes 9-15
P50E User Codes 9-15
2345678
1
9101112131415
9101112131415
AREA 1
AREA 2
