PROGRAMMING
NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL
ENTRY BEEPS
The sonalert will beep during Entry Delay.
PROGRAMMING SEQUENCE:
P60E 1E toggles the option ON and OFF
P60E 1E OFF: Entry Beeps OFF
P60E 1E ON: Entry Beeps ON
P60E 1E
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
Entry Beeps ON
NOTES:

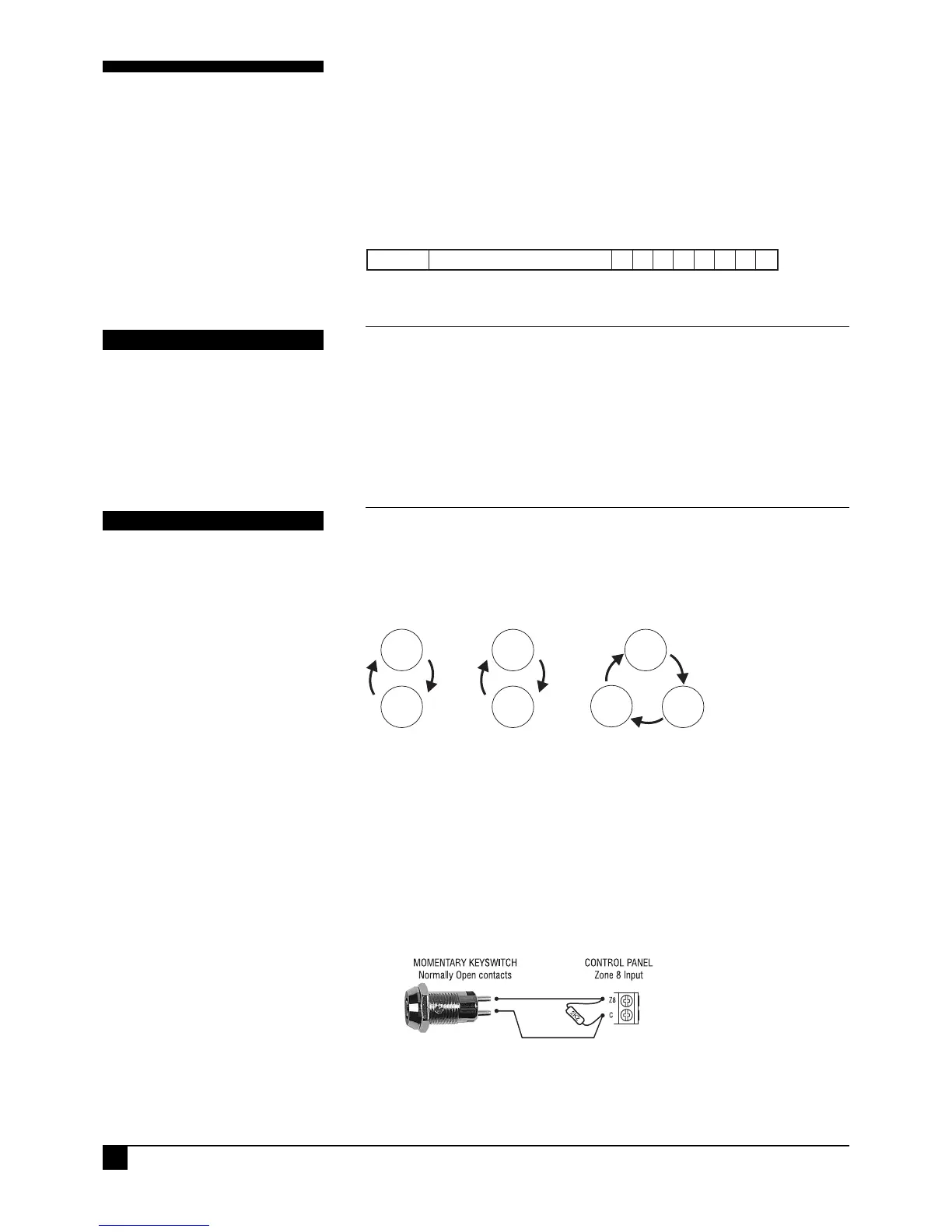

KEYSWITCH OPERATION
An externally fitted, normally open momentary keyswitch can be used to Arm,
Disarm or change the D16 to Monitor mode.
The keyswitch is wired to zone 8 (zone 8 is then no longer available as a
normal alarm input, but IS still available for use as a Radio Zone).
ARMEDARMED
MONITOR
MONITOR
DISARMDISARMDISARM
PROGRAMMING SEQUENCE:
P60E 2E or 3E toggles the option ON and OFF
P60E 2E & 3E OFF: No keyswitch operation. Zone 8 is a normal alarm input.
P60E 2E ON: Keyswitch cycles between Monitor and Disarm.
P60E 3E ON: Keyswitch cycles between Arm and Disarm.
P60E 2E & 3E ON: Keyswitch cycles between Arm, Monitor and Disarm.
P60E 2E, 3E
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
No keyswitch enabled
NOTES:
• The keyswitch always Arms Area1 only.
• The keyswitch always Disarms Area1
and Area2.
• Momentary short circuit across resistor
to toggle panel modes.
• Open circuit resistor to trigger keyswitch
panic.
• Multiple keyswitches can be used. Wire
in parallel.
• Zone Split. If Zone 8 is converted to a
Keyswitch Input, then a 2K2 monitoring
resistor is always used and Zone Splitting
is not available on the Z8 input (no Zone8
or Zone16). Zone8 and Zone16 are still
available as RADIO ZONES however.
See: Zone Split, page 35
P60E 2E is ON P60E 3E is ON P60E 2E is ON
P60E 3E is ON
1E 2E 3E 4E 5E 6E 7E 8E
ON = Factory default setting.
Entry beeps
Keysw Monitor/Disarm
Keysw/Arm/Disarm
Tamper siren lockout
Duress to Reset output
Auo Exclude zones
Auto KP display off
Delay AREA1-2 outputs
OPTION No DESCRIPTION
P60E Various options ON ON ON
