NESS RADIO
NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL

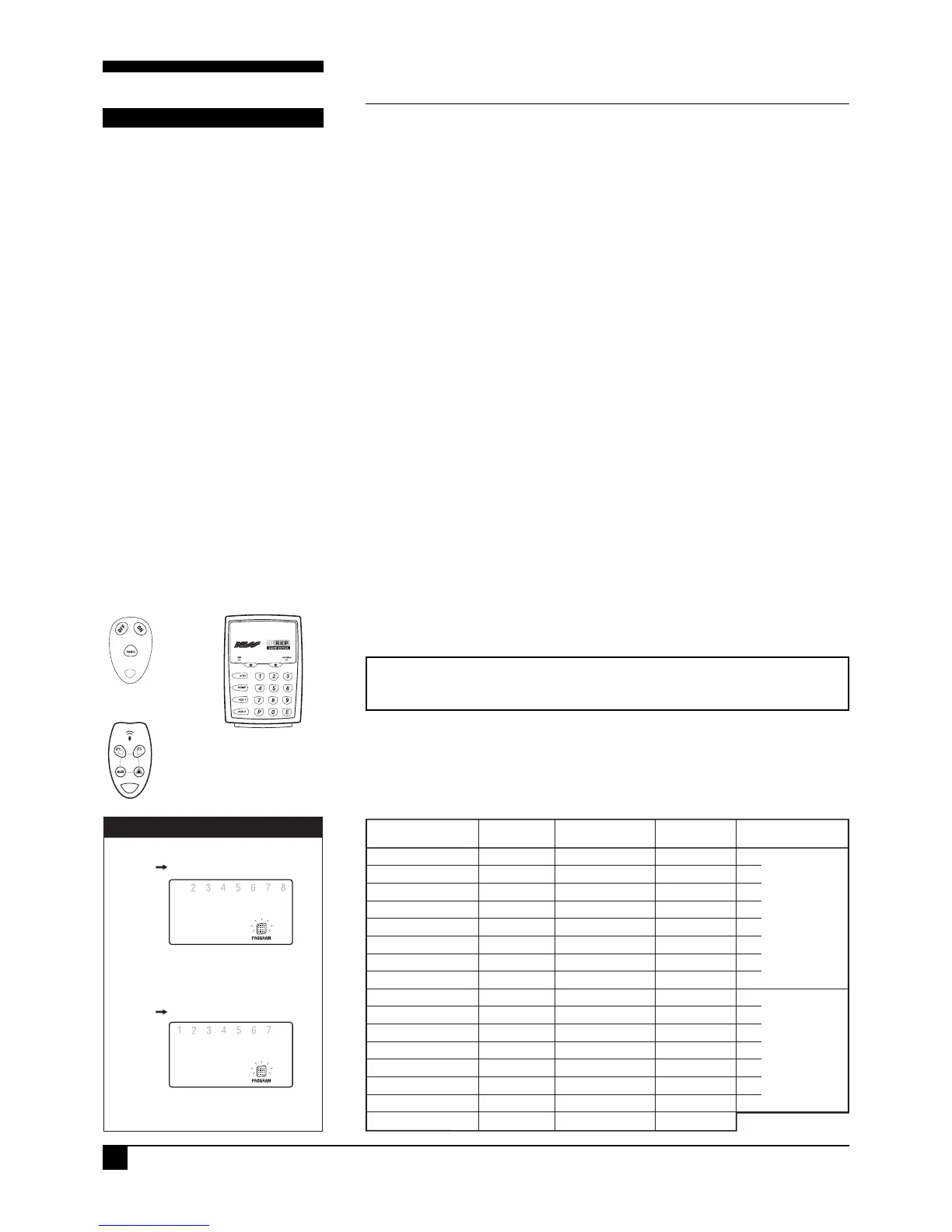

RADIO CODES
Each of the 15 User Codes, except for the Master Code, can be programmed to
be Radio Codes. This allows up to 14 Ness Radio Keys to be used for Arming
and Disarming of the panel. The Ness RKP Radio Keypad can also be used with
the D16, (see the RKP installer manual). The optional 100–200 Ness Radio
Interface is required for radio operation.
P09E P10E
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
No Radio Codes
NOTES:
• All User Codes can be Radio Codes
except User Code 1 (Master Code) which
is always a Keypad Code.
• Each User Code 2-15 can be either a
Radio Code or a Keypad Code (not both).
• Radio Key programming is done by
‘learning’ the code by radio.
• Radio Codes can only be deleted by
keypad in the case of a lost Radio Key.
• Radio Keys are allocated to User Codes,
so that Open/Close reports are identified
by user number when the control panel is
base station monitored. (If Open/Close
reports are enabled)
• Radio Codes cannot be made Arm Only
• TIP: When adding Radio Keys, start at
e.g., User Code 9. This will keep codes 1
to 8 free for use as Keypad Codes.
• RELATED OPTIONS:
P101E-P116E Programming Radio
Devices
User
Codes
User
Codes
2345678
*
*
Note: User Code 1 is always a keypad code.
P09E User Codes 1-8
P10E User Codes 9-15
9101112131415
ASSIGN RADIO CODES
CODE OPTION No DESCRIPTION
FACTORY
DEFAULT
User Code 1 P11E Master Code 123
(Keypad Code only)
User Code 2 P12E
2E
User Code 3 P13E
3E
User Code 4 P14E
4E
User Code 5 P15E
5E
User Code 6 P16E
6E
User Code 7 P17E
7E
User Code 8 P18E
8E
User Code 9 P19E
1E
User Code 10 P20E
2E
User Code 11 P21E
3E
User Code 12 P22E
4E
User Code 13 P23E
5E
User Code 14 P24E
6E
User Code 15 P25E
7E
Installer Code P99E Installer Code 000000
P09E
P10E
ENABLE AS A
RADIO CODE
CODE TABLE
PROGRAMMING RADIO KEYS
Radio Keys can be assigned to take the place of User Codes 2 to 15.
(User Code 1 is always a Keypad code.)
PROGRAMMING SEQUENCE:
➊
At option
P09EP09E
P09EP09E
P09E, select which User Codes 2-8 will be Radio Codes
At option
P10EP10E
P10EP10E
P10E, select which User Codes 9-15 will be Radio Codes
➋
Use
P12E P12E
P12E P12E
P12E to
P25E P25E
P25E P25E
P25E to select a User Code
The User Code selected must already be assigned as a Radio Code by options P09E or P10E
➌
Press
1E1E
1E1E
1E
The READY light will turn ON to indicate that the User Code is ready to accept the Radio Key.
If a code is already programmed the READY light will not turn on and a warning beep will sound. To clear
the code, press 0E, then go back to step 3. (0E clears any Keypad Codes and Radio Keys).
➍
Press the OFF button on the Radio Key to be programmed
If the Radio Key is accepted, the READY light will turn off and 3 beeps will sound.
If the READY light stays on and a warning beep sounds, the Radio Key is already assigned to another
User Code and must be cleared from that User Code first.
EXAMPLE: To program a Radio Key at User Code 9:
P10E 1E P19E
1E then Press the OFF button on the Radio Key
DELETING A RADIO CODE:
➊
Use
P12E P12E
P12E P12E
P12E to
P25E P25E
P25E P25E
P25E to select the User Code
➋
Press
0E0E
0E0E
0E to clear the code 3 beeps will sound
100–001 RKP
Radio Keypad
100–664 RK3
Radio Key
100–067 RK4
Radio Key
