NESS D8 V4.7 CONTROL PANEL - USER MANUAL
6
KEYPAD
The D8 control panel may be supplied with either the LED keypad (100-192) or the Ness LCD
Keypad (100-667).
The keypad provides important visual and audible indications and is the main interface for operating
and programming the D8 control panel.
DISPLAY TEST (LCD Keypad only)
To display all the keypad icons press and hold the button for at least 2 seconds. All the icons
will be on whilst the button is held down.
Display Test can be activated at any time either in operating mode or any program mode.
2
5
8
0
1
4
7
P
3
6
9
E
ARM
MONITOR
EXCLUDE
MEMORY
Not Ready
Backlit LCD
icon display
PANIC buttons
PANIC buttons
“Not Ready” light
The “Not Ready” light is on when the panel is not ready to Arm.
i.e, a zone is unsealed, there may still be movement in the
premises or a door or window left open
ARM button
ARM button
MONITOR button
MONITOR button
EXCLUDE button
EXCLUDE button
PROGRAM button
ENTER button
MEMORY button
MEMORY button

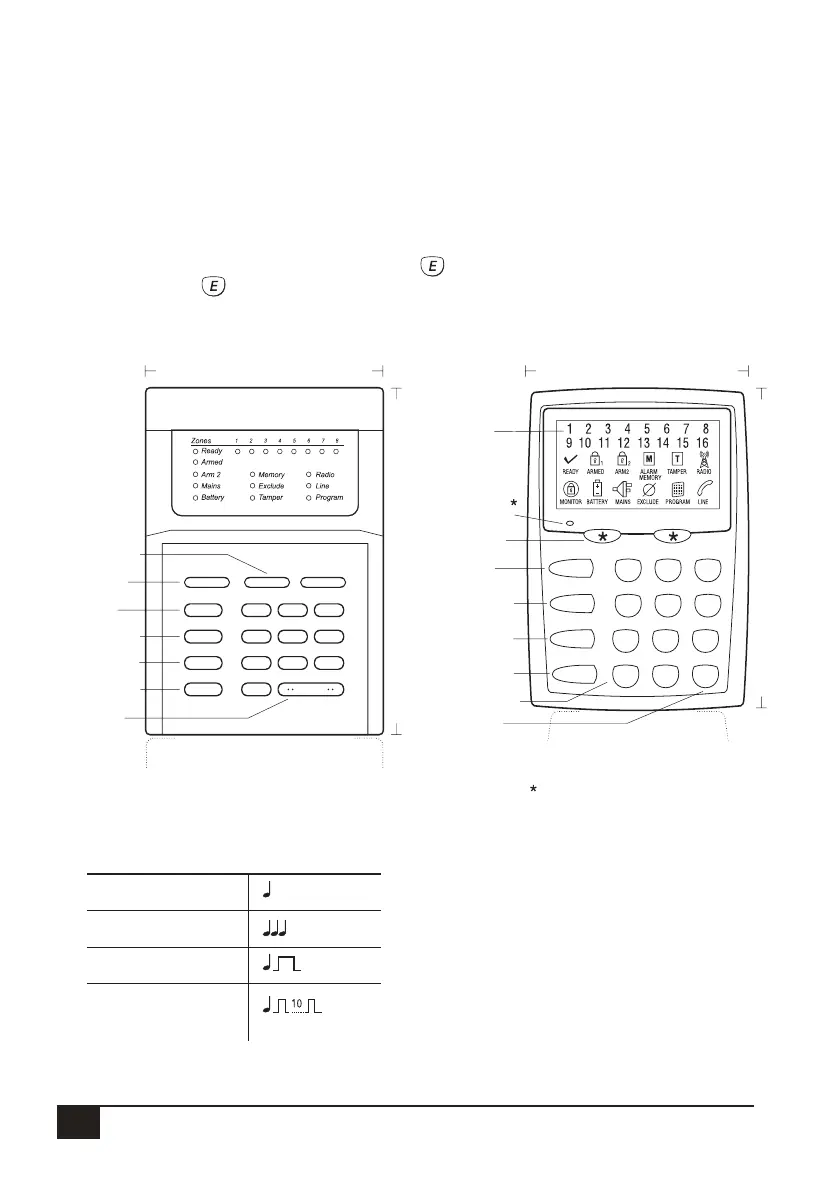

LED KEYPAD LCD KEYPAD
PROGRAM button
Protective flap not shown
Protective flap not shown
ENTER button
PANIC
ARM
1
4
7
0
2
5
8
ENTER
3
6
9
MONITOR
EXCLUDE
PROGRAM
PANICMEMORY
105mm 90mm
150mm
135mm
1 beep
3 beeps
1 long beep
10 beeps
Each key press
Valid command
Error
Mains Power is off
or
Panel Battery is low
KEYPAD BEEPER SOUNDS
LED keypad and LCD keypad
Keypad beeper sounds for LED
or LCD keypad.
