Setting Up the Tester
20

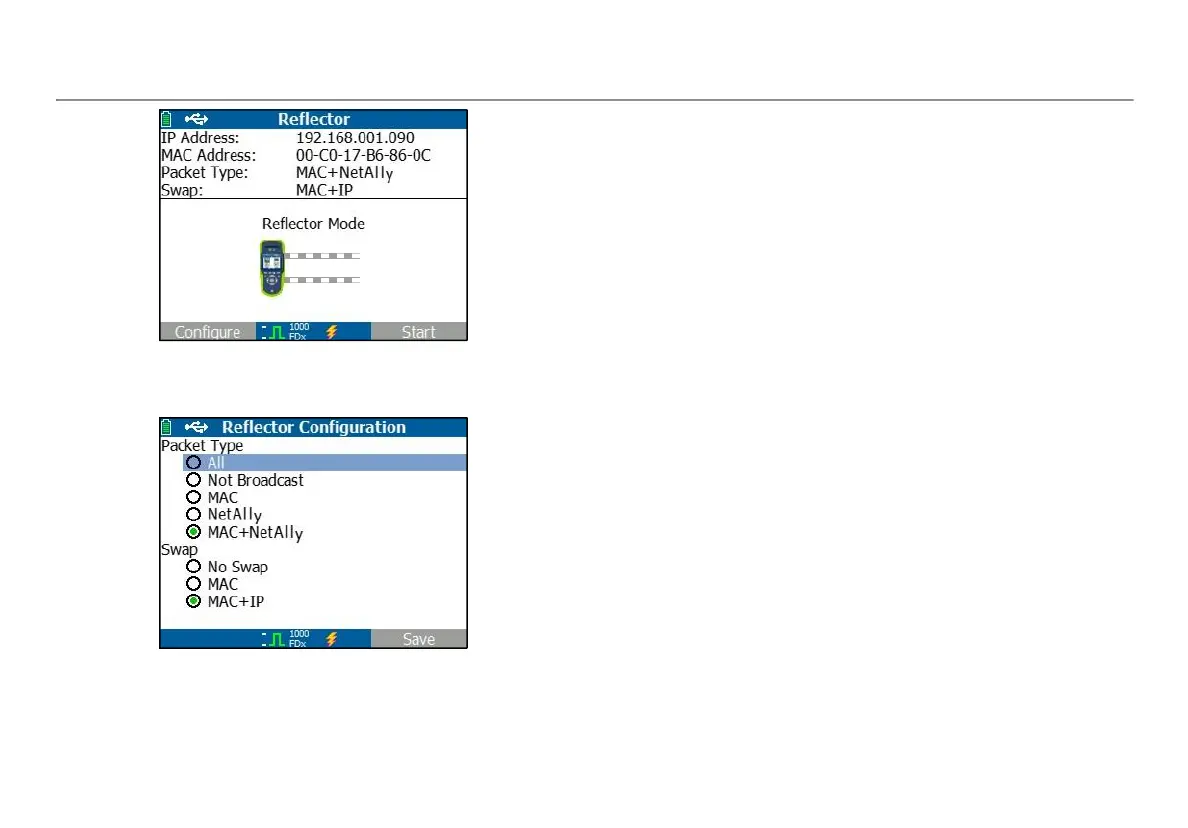

Figure 11. Reflector Settings Screen
Select Configure.
Figure 12. Reflector Default Configuration Screen The LR-AT
2000 must be configured to:
MAC + NetAlly - This filter setting allows the LR-AT 2000 to only
reflect packets when the destination MAC address field matches the
LR-AT 2000's own MAC address and NetAlly payload.
MAC + IP - This swap setting allows the LR-AT 2000 to swap the source
and destination MAC and IP addresses for packets that are reflected
back to the analyzer.
Note
Any other Reflector setting may cause undesired traffic on
your network.
